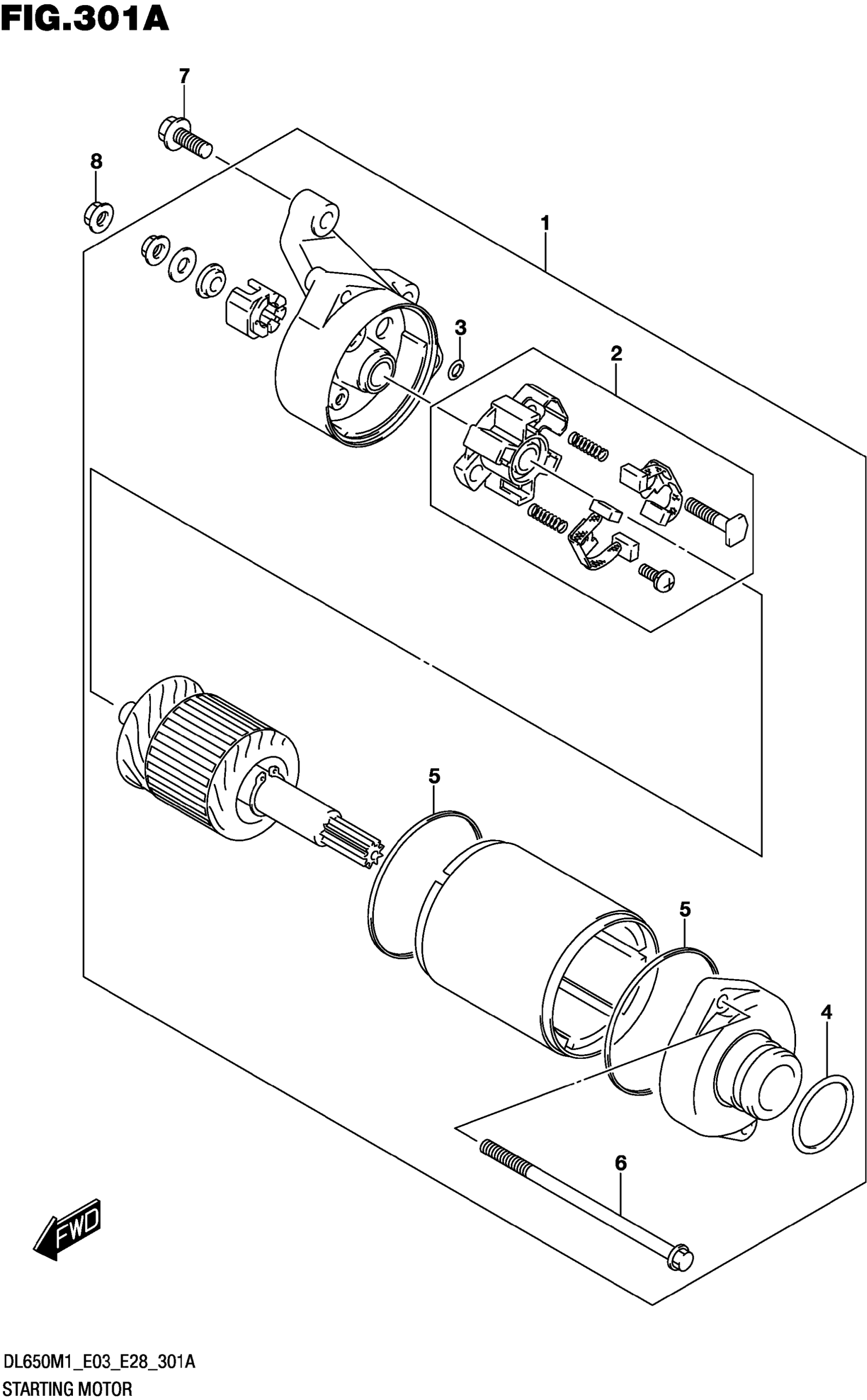

Suzuki DL650AM1 (2021) STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY,STARTING

31100-19F10-000

Unavailable

2

.BRUSH HOLDER SET

31132-18H00-000

Unavailable

3

.O-RING

31143-49040-000

Unavailable

4

.O-RING (D:3.1,ID:24.4)

31156-98E00-000

Unavailable

5

.SQUARE RING

31264-38F10-000

Unavailable

6

.SET BOLT

31280-19F10-000

Unavailable

7

BOLT

01547-0625A-000

Unavailable

8

NUT

08361-3506A-000

Unavailable
