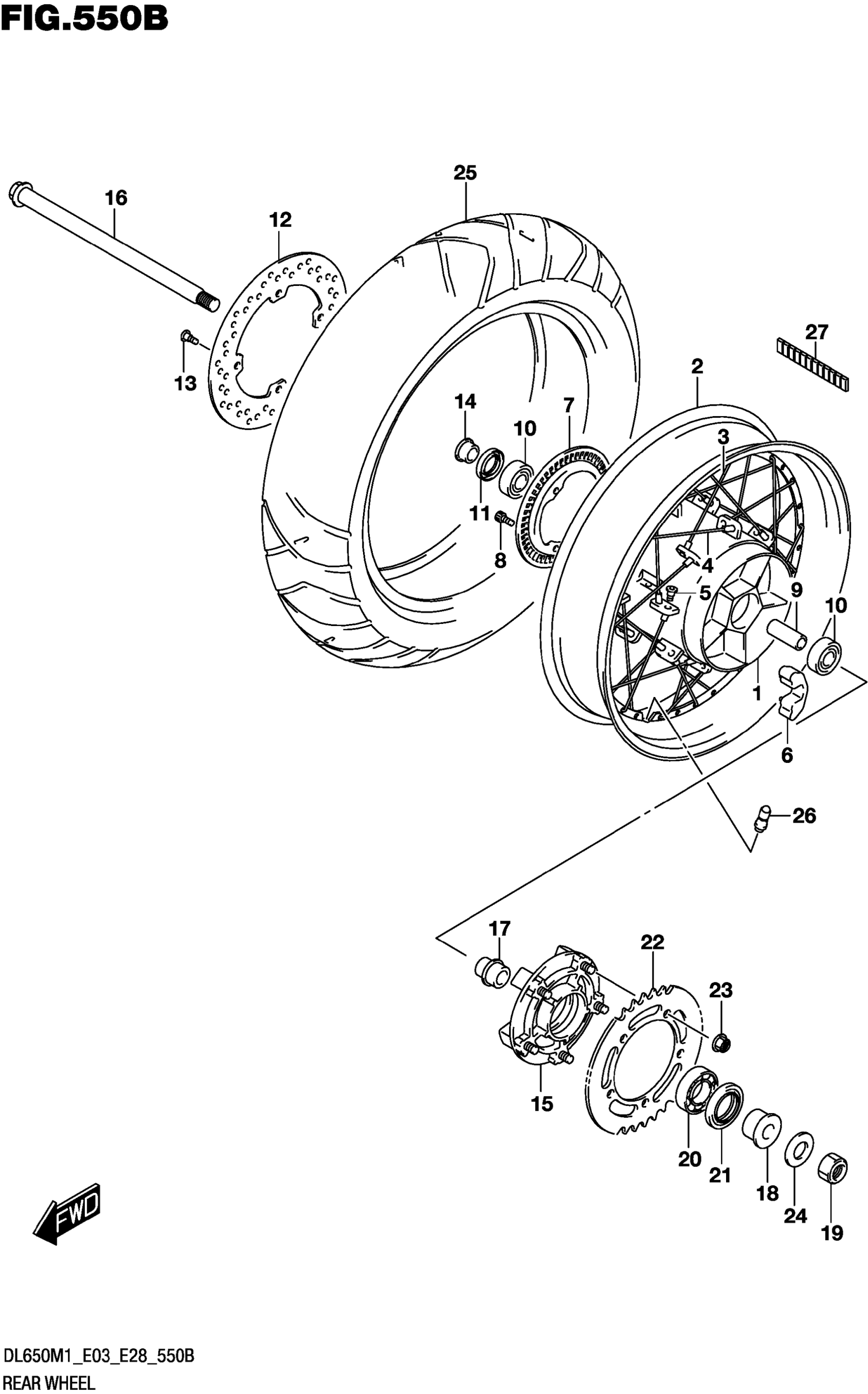

Suzuki DL650AM1 (2021) REAR WHEEL (DL650XA) Diagram

#

Description
Price

1

HUB,RR

64111-11J00-000

Unavailable

2-1

RIM,RR WHEEL (17M/CXMT4.00) | BODY COLOR:AV4

65311-28K00-000

Unavailable

2-2

RIM,RR WHEEL (17M/CXMT4.00) | BODY COLOR:YU1,YUH

65311-28K10-000

Unavailable

2-3

RIM,RR WHEEL (17M/CXMT4.00) | BODY COLOR:QEB

65311-28K20-000

Unavailable

3

SPOKE,REAR WHEEL INNER

65321-11J00-000

Unavailable

4

SPOKE,REAR WHEEL OUTER

65322-11J00-000

Unavailable

5

NIPPLE,WHEEL

55326-11J00-000

Unavailable

6

ABSORBER,REAR HUB SHOCK

64651-35F10-000

Unavailable

7

RING,SPEED SENSOR (50T)

54162-28K00-000

Unavailable

8

BOLT

07130-0512A-000

Unavailable

9

SPACER (20.8X27.2X124)

09180-20112-000

Unavailable

10

BEARING,REAR WHEEL HUB

08123-6204B-000

Unavailable

11

SEAL,REAR HUB,R (27X47X7)

09285-28004-000

Unavailable

12

DISC,RR BRAKE

69211-06G10-000

Unavailable

13

BOLT (8X21)

09106-08160-000

Unavailable

14

SPACER,REAR AXLE RH

64741-10F00-000

Unavailable

15

DRUM,REAR SPROCKET

64610-35F40-000

Unavailable

16

AXLE,REAR

64711-03F00-000

Unavailable

17

RETAINER,REAR SPROCKET DRUM

64733-06G00-000

Unavailable

18

SPACER,REAR AXLE LH

64751-27G00-000

Unavailable

19

NUT

09159-18007-000

Unavailable

20

BEARING,RR SPROCKET DRUM (32X | 5X17)

09262-32024-000

Unavailable

21

OIL SEAL (39X65X7)

09285-39001-000

Unavailable

22

SPROCKET,REAR (47T-525)

64511-27G00-000

Unavailable

23

NUT

08319-3110A-000

Unavailable

24

WASHER (19X32X3.2)

09160-19025-000

Unavailable

25

TIRE,REAR (BATTLAX ADVENTURE | 40R F)

65110-28K00-000

Unavailable

26

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00-000

Unavailable

27

WEIGHT,WHEEL BALANCE (5GRAM)

55411-11J00-000

Unavailable
