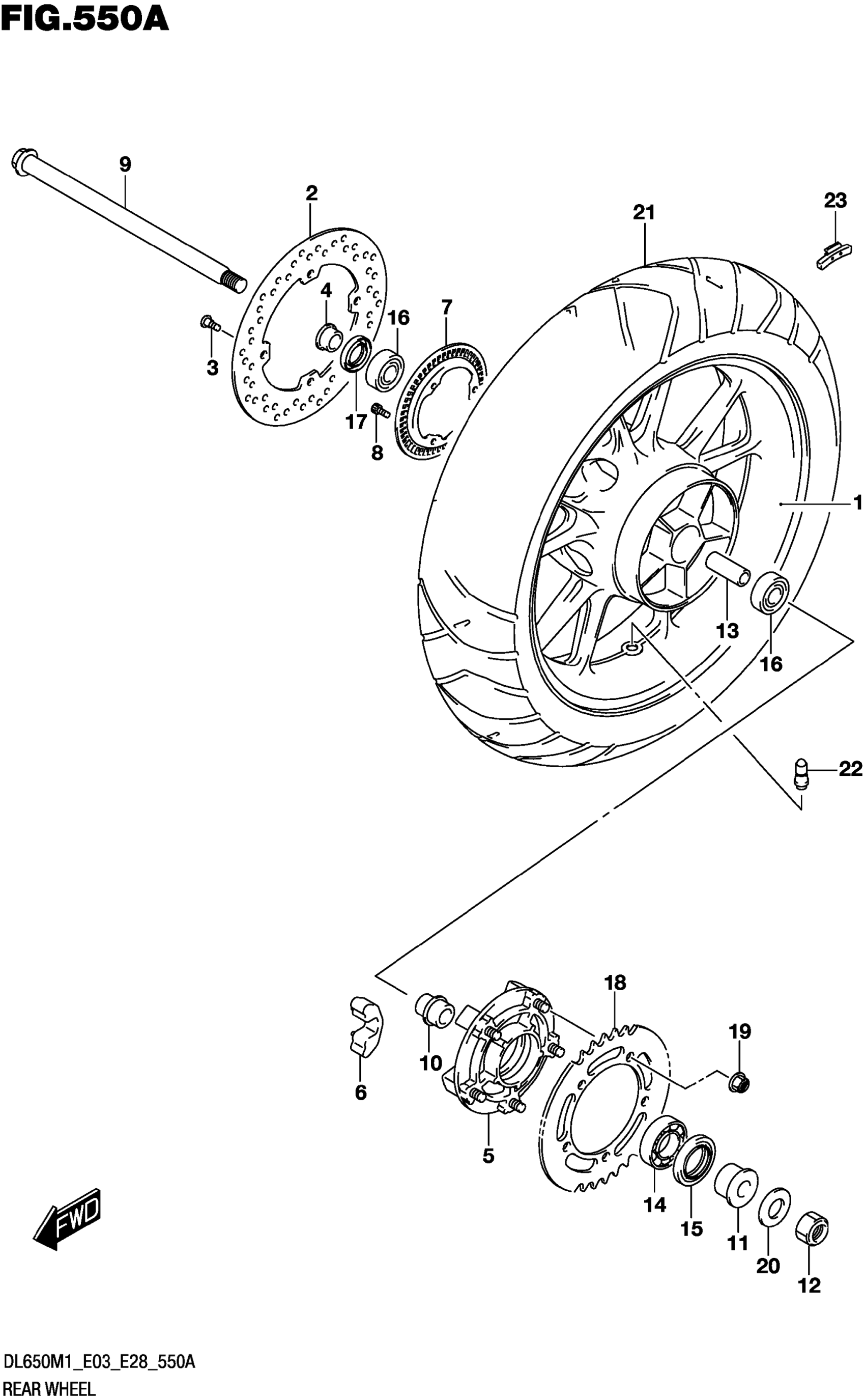

Suzuki DL650AM1 (2021) REAR WHEEL (DL650A) Diagram

#

Description
Price

1

WHEEL, REAR (17M/CXMT4.00) | )

64111-28K00-019

$601.25

2

DISC,RR BRAKE

69211-06G10-000

Unavailable

3

BOLT (8X21)

09106-08160-000

Unavailable

4

SPACER,REAR AXLE RH

64741-10F00-000

Unavailable

5

DRUM,REAR SPROCKET

64610-35F40-000

Unavailable

6

ABSORBER,REAR HUB SHOCK

64651-35F10-000

Unavailable

7

RING,SPEED SENSOR (50T)

54162-28K00-000

Unavailable

8

BOLT

07130-0512A-000

Unavailable

9

AXLE,REAR

64711-03F00-000

Unavailable

10

RETAINER,REAR SPROCKET DRUM

64733-06G00-000

Unavailable

11

SPACER,REAR AXLE LH

64751-27G00-000

Unavailable

12

NUT

09159-18007-000

Unavailable

13

SPACER (20.8X27.2X124)

09180-20112-000

Unavailable

14

BEARING,RR SPROCKET DRUM (32X | 5X17)

09262-32024-000

Unavailable

15

OIL SEAL (39X65X7)

09285-39001-000

Unavailable

16

BEARING,REAR WHEEL HUB

08123-6204B-000

Unavailable

17

SEAL,REAR HUB,R (27X47X7)

09285-28004-000

Unavailable

18

SPROCKET,REAR (47T-525) | 47T-525

64511-27G00-000

Unavailable

19

NUT

08319-3110A-000

Unavailable

20

WASHER (19X32X3.2)

09160-19025-000

Unavailable

21

TIRE,REAR (BATTLAX ADVENTURE | 40R F)

65110-28K00-000

Unavailable

22

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00-000

Unavailable

23-1

BALANCER,WHEEL NO.1 (10G)

55411-22H00-000

Unavailable

23-2

BALANCER,WHEEL NO.2 (20G)

55412-22H00-000

Unavailable

23-3

BALANCER,WHEEL NO.3 (30G)

55413-22H00-000

Unavailable
