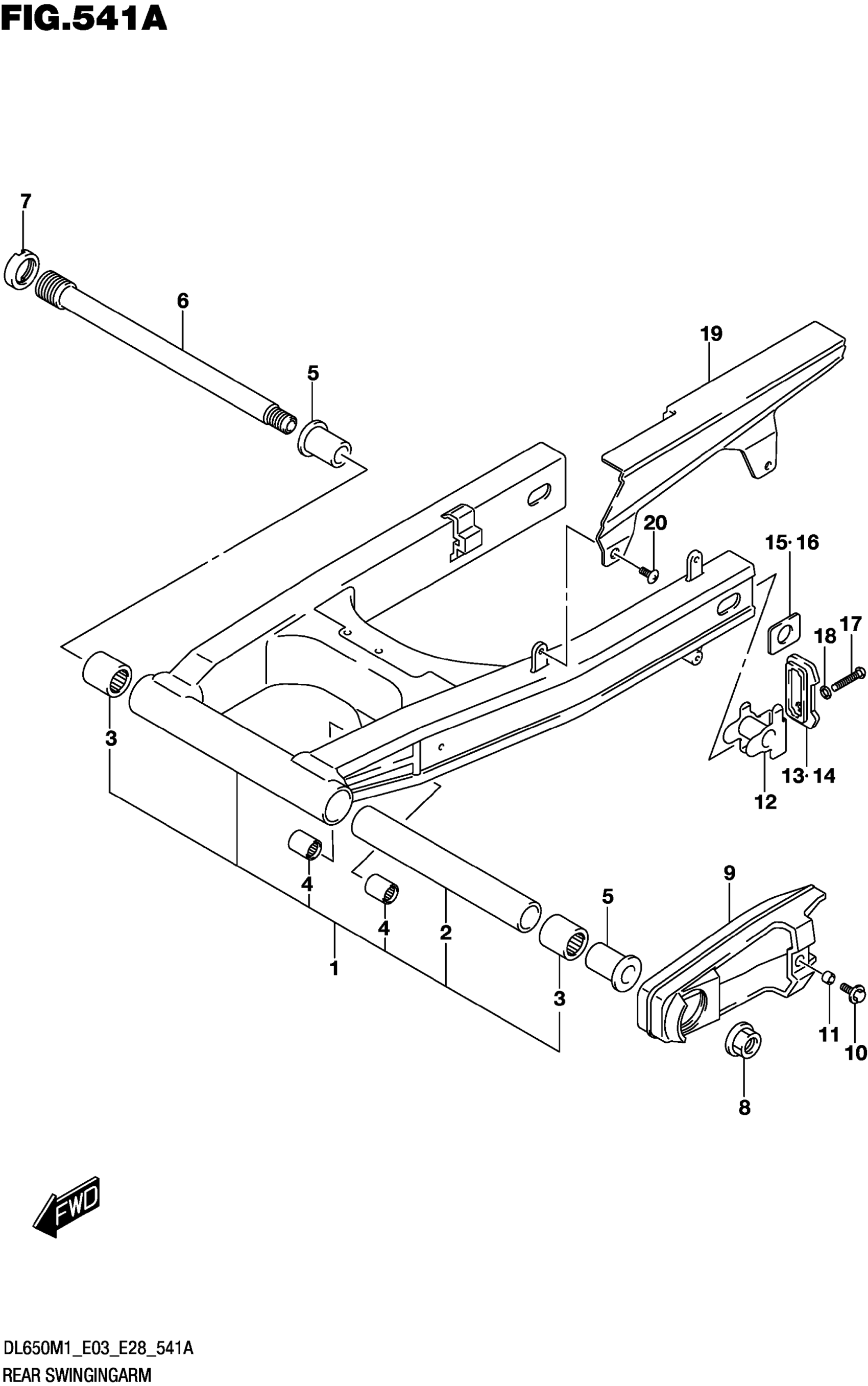

Suzuki DL650AM1 (2021) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM ASSY, REAR

61000-27G31-YAP

$1,136.88

2

.SPACER (20.8X27.2X196.7)

09180-20118-000

Unavailable

3

.BEARING (17X24X25)

09263-17053-000

Unavailable

4

.BEARING (25X33X35)

09263-25073-000

Unavailable

5

SPACER,RR SWGARM PIVOT,BRG

61251-31E00-000

Unavailable

6

SHAFT,RR SWGARM PIVOT

61211-06G00-000

Unavailable

7

NUT,RR SWGARM PIVOT BOLT

61214-19F10-000

Unavailable

8

NUT

08319-3118A-000

Unavailable

9

BUFFER,CHAIN TOUCH DEFENSE

61273-27G01-000

Unavailable

10

BOLT (6X20)

09116-06111-000

Unavailable

11

SPACER (6.5X10X7)

09180-06283-000

Unavailable

12

ADJUSTER,CHAIN

61410-03F00-000

Unavailable

13

PLATE,CHAIN ADJUSTER GUIDE RH

61421-33D01-000

Unavailable

14

PLATE,CHAIN ADJUSTER GUIDE LH

61422-33D01-000

Unavailable

15

WASHER,CHAIN ADJUSTER RH

64712-03F01-000

Unavailable

16

WASHER,CHAIN ADJUSTER LH

64713-03F01-000

Unavailable

17

BOLT (8X50)

09106-08119-000

Unavailable

18

WASHER

09164-08015-000

Unavailable

19

CASE,CHAIN

61310-16G00-000

Unavailable

20

BOLT,CHAIN CASE (6X12)

09139-06225-000

Unavailable
