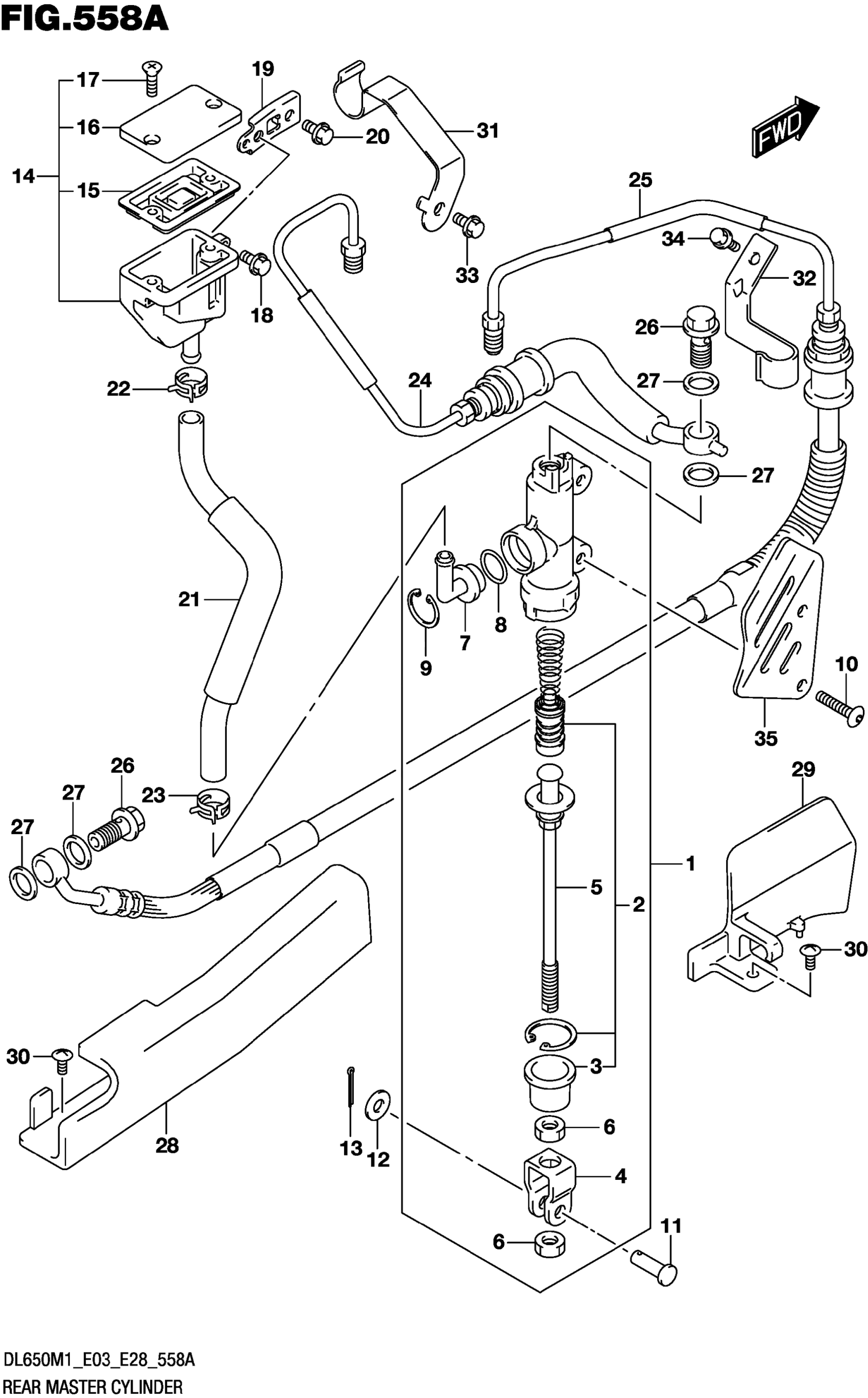

Suzuki DL650AM1 (2021) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,REAR MASTER

69600-06G00-000

Unavailable

2

.PISTON/CUP SET

69600-34820-000

Unavailable

3

..BOOT

69691-00A00-000

Unavailable

4

.YOKE

69692-19A00-000

Unavailable

5

.ROD,PUSH

69670-03G00-000

Unavailable

6

.NUT

69693-05A00-000

Unavailable

7

.CONNECTOR

69672-00B20-000

Unavailable

8

.O RING

69686-34200-000

Unavailable

9

.CIRCLIP

69674-00B20-000

Unavailable

10

SCREW (6X25)

09139-06192-000

Unavailable

11

PIN (6X18.2)

09200-06068-000

Unavailable

12

WASHER

08322-0106A-000

Unavailable

13

PIN

04111-2015A-000

Unavailable

14

TANK ASSY,REAR RESERVOIR

69740-01D02-000

Unavailable

15

.DIAPHRAGM

59667-04700-000

Unavailable

16

.CAP

59669-05D00-000

Unavailable

17

.SCREW

69689-04A00-000

Unavailable

18

BOLT

01547-0612A-000

Unavailable

19

BRACKET,RR RESERVOIR TANK

69750-28K00-000

Unavailable

20

BOLT

01547-0612A-000

Unavailable

21

HOSE,RR RESERVOIR TANK

69730-28K00-000

Unavailable

22

CLIP (ID:13.2)

09401-13417-000

Unavailable

23

CLIP (ID:12)

09401-12404-000

Unavailable

24

HOSE ASSY,RR BK MASTER TO HU

69200-28K01-000

Unavailable

25

HOSE ASSY,RR BRAKE NO.2

69400-11J01-000

Unavailable

26

UNION (10X1.25X22)

09360-10062-000

Unavailable

27

WASHER (10X15X1.5)

09161-10009-000

Unavailable

28

GUIDE,REAR BRAKE HOSE

61196-27G10-000

Unavailable

29

GUIDE,RR BRAKE HOSE FR

61196-06G00-000

Unavailable

30

SCREW

02142-0510A-000

Unavailable

31

CLAMP,RR BRAKE HOSE

69260-11J00-000

Unavailable

32

CLAMP,RR BRAKE HOSE NO.2

69266-27G00-000

Unavailable

33

BOLT

01547-0610B-000

Unavailable

34

BOLT

01547-0612A-000

Unavailable

35

COVER,REAR MASTER CYLINDER

69641-06G00-000

Unavailable
