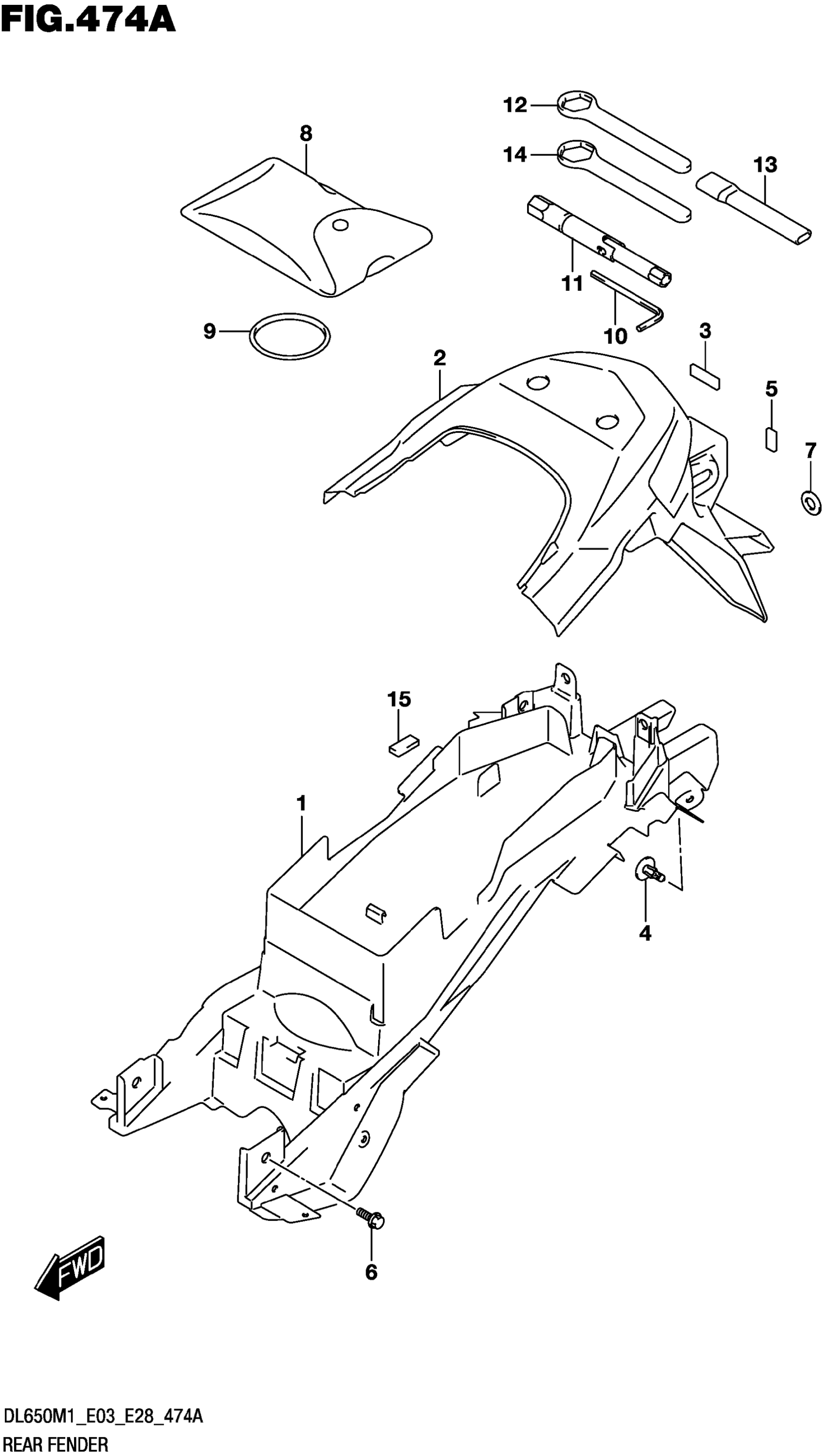

Suzuki DL650AM1 (2021) REAR FENDER Diagram

#

Description

Price

1

FENDER,REAR FRONT

63111-28K00-000

Unavailable

2

FENDER,REAR REAR

63112-28K00-000

Unavailable

3

CUSHION,LICENSE PLATE (10X30X | )

33652-47F00-000

Unavailable

4

CLIP

94479-35F00-000

Unavailable

5

CUSHION (5X10X1.5)

94612-31F00-000

Unavailable

6

BOLT (6X13)

09116-06181-000

Unavailable

7

WASHER

08322-0106B-000

Unavailable

8

TOOL ASSY

09800-21102-000

Unavailable

9

O-RING (D:3.5,ID:62.6)

09280-63003-000

Unavailable

10

SPANNER,HEXAGON (5)

09816-00059-000

Unavailable

11

SPANNER,BOX (16)

09816-00149-000

Unavailable

12

SPANNER,RING (22)

09817-00035-000

Unavailable

13

HANDLE,RING SPANNER

09817-00037-000

Unavailable

14

SPANNER,RING (24)

09817-00039-000

Unavailable

15

CUSHION,COVER SIDE (16X30X3.5

94633-31J00-000

Unavailable
