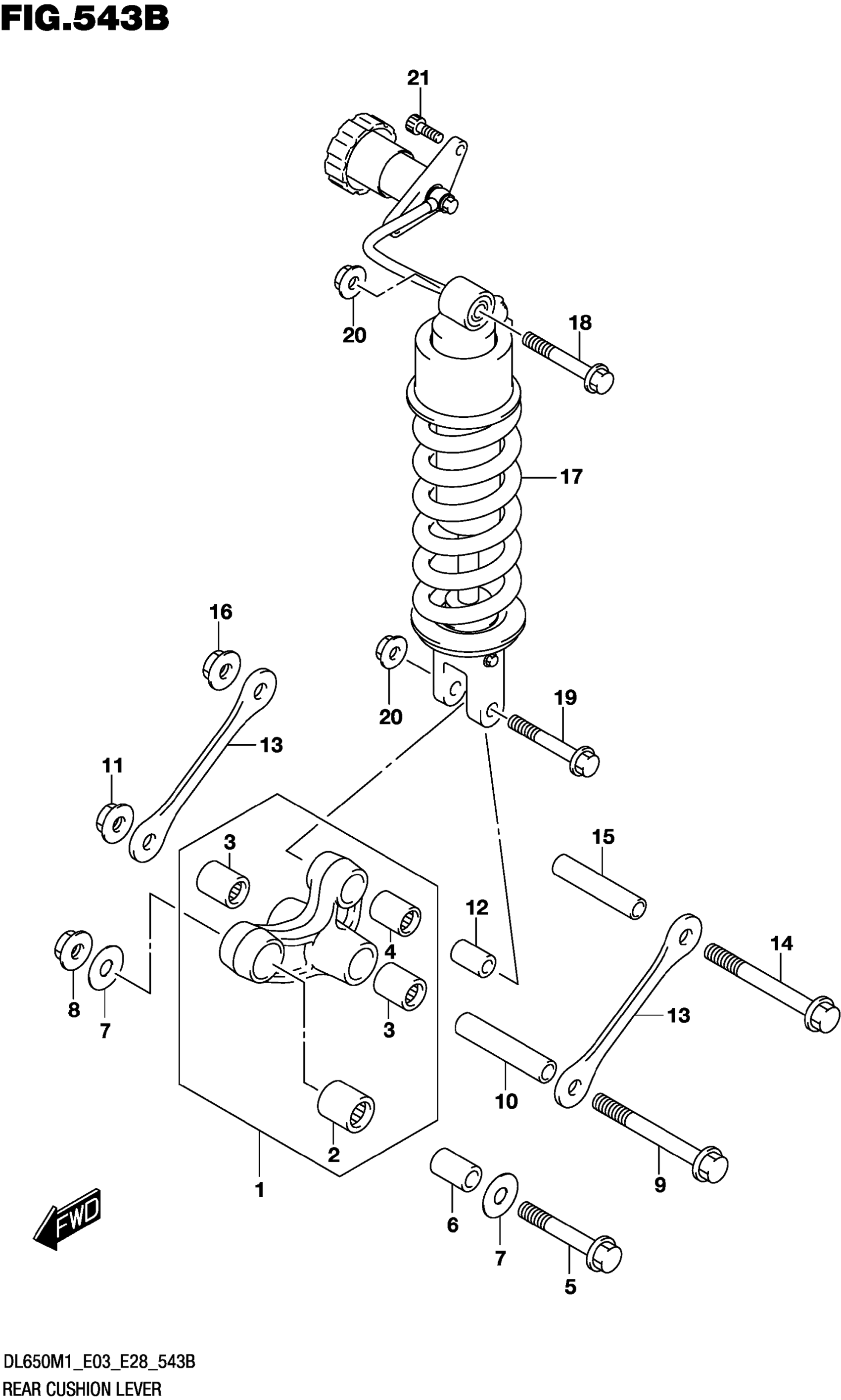

Suzuki DL650AM1 (2021) REAR CUSHION LEVER Diagram

#

Description

Price

1

LEVER SET,RR CUSHION

62600-06872-000

Unavailable

2

.BEARING (20X27X30)

09263-20121-000

Unavailable

3

.BEARING (17X24X26)

09263-17057-000

Unavailable

4

.BEARING (17X24X25)

09263-17053-000

Unavailable

5

BOLT,RR CUSHION LEVER,FR (12X | 8)

62658-19F00-000

Unavailable

6

SPACER,RR CUSHION LVR,FR (12X | 0X32)

62684-12C00-000

Unavailable

7

WASHER (12X34X1.0)

09160-12037-000

Unavailable

8

NUT

09159-12056-000

Unavailable

9

BOLT,REAR CUSHION ROD (12X111

62621-19D00-000

Unavailable

10

SPACER (12X17X85)

09180-12122-000

Unavailable

11

NUT

09159-12056-000

Unavailable

12

SPACER,RR CUSHION LEVER (10X1 | X30)

62684-40A10-000

Unavailable

13

ROD,RR CUSHION LEVER

62641-06G00-000

Unavailable

14

BOLT,REAR CUSHION ROD (12X111

62621-19D00-000

Unavailable

15

SPACER (12X17X85)

09180-12122-000

Unavailable

16

NUT

09159-12056-000

Unavailable

17

ABSORBER ASSY, RR SHOCK

62100-28K11-019

$1,070.08

18

BOLT (10X70)

09103-10033-000

Unavailable

19

BOLT (10X55)

09103-10143-000

Unavailable

20

NUT (M10)

09159-10115-000

Unavailable

21

BOLT

07130-0816A-000

Unavailable
