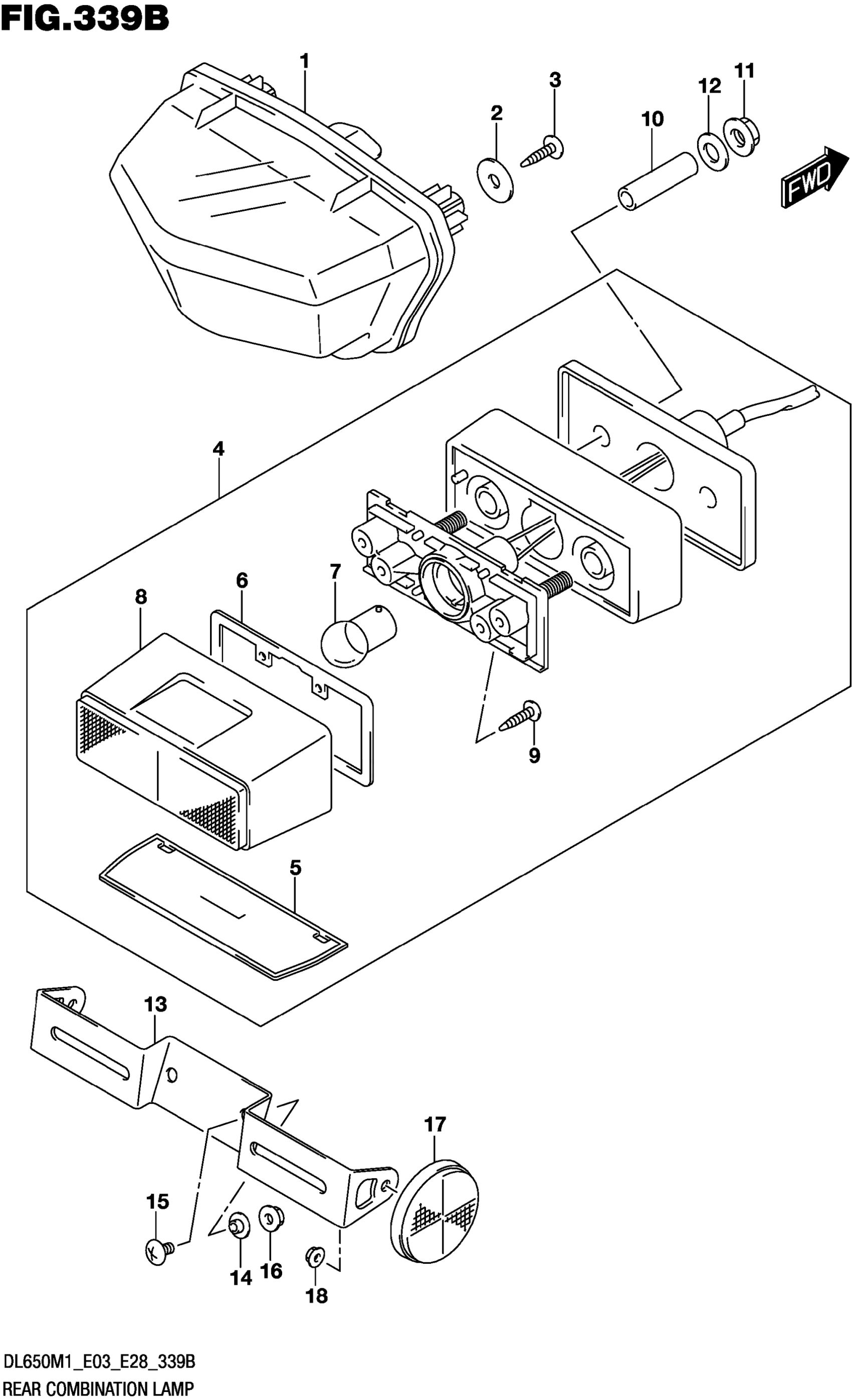

Suzuki DL650AM1 (2021) REAR COMBINATION LAMP Diagram

#

Description

Price

1

LAMP ASSY,RR COMB

35710-31J01-000

Unavailable

2

WASHER (5.5X20X1.2)

09160-05501-000

Unavailable

3

SCREW

03541-0516A-000

Unavailable

4

LAMP ASSY,LICENSE

35910-41GC2-000

Unavailable

5

.LENS,LICENSE

35912-41G01-000

Unavailable

6

.GASKET

35913-41G00-000

Unavailable

7

.BULB (12V5W)

09471-12140-000

Unavailable

8

.COVER,LICENSE LAMP

35917-41G00-000

Unavailable

9

.SCREW

03211-0416A-000

Unavailable

10

SPACER (6.5X9X33.3)

09180-06278-000

Unavailable

11

NUT (6X12)

08316-1006A-000

Unavailable

12

WASHER (6.5X20X1.2)

09160-06077-000

Unavailable

13

BRACKET,LICENSE PLATE

35927-14J30-000

Unavailable

14

WASHER

09169-06071-000

Unavailable

15

.SCREW

02142-0616A-000

Unavailable

16

NUT (6X12)

08316-1006A-000

Unavailable

17

REFLECTOR ASSY,REAR SIDE

35970-13K00-000

Unavailable

18

NUT

08316-1005A-000

Unavailable
