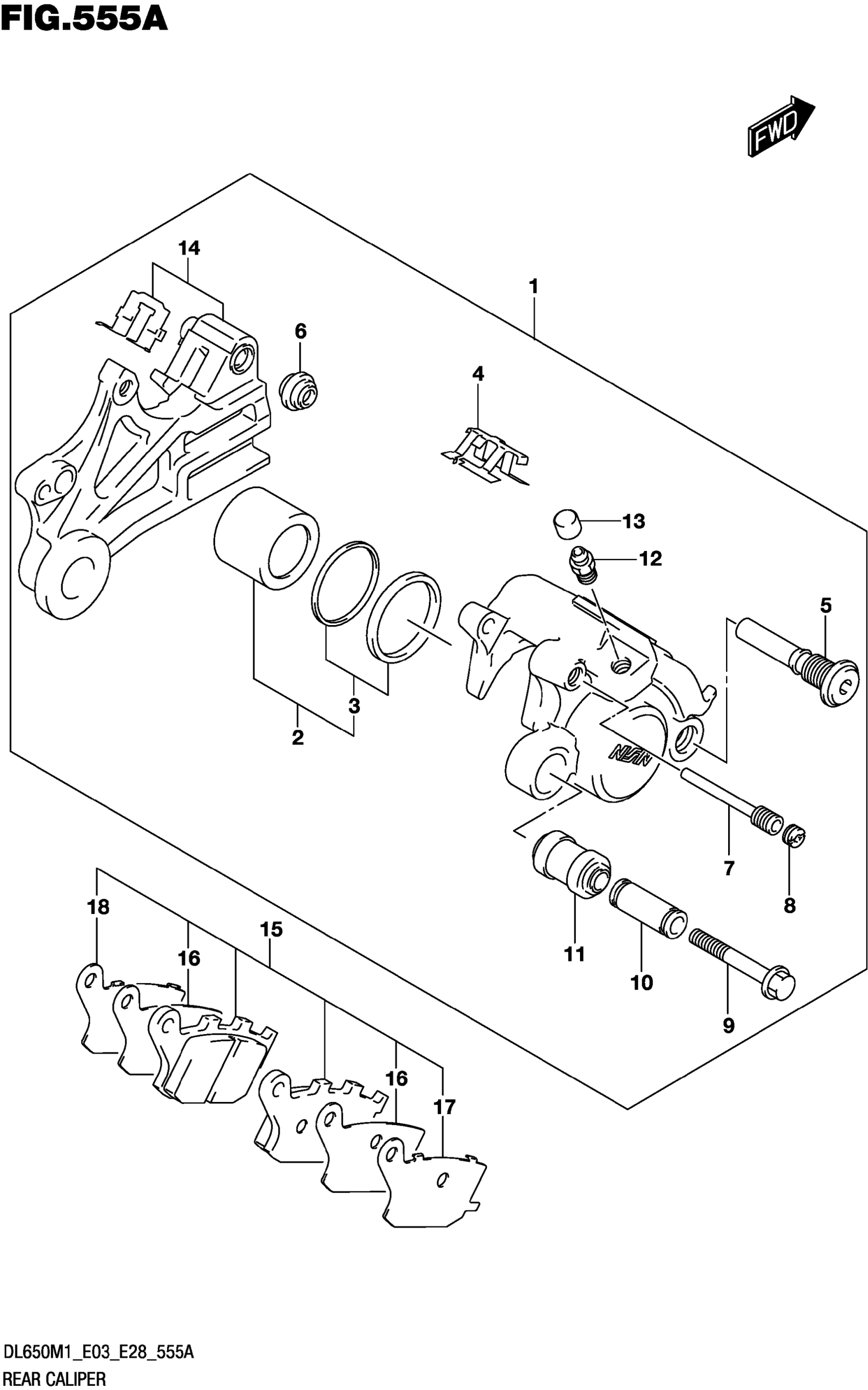

Suzuki DL650AM1 (2021) REAR CALIPER Diagram

#

Description

Price

1

CALIPER ASSY, RR

69100-28K00-999

$327.45

2

.PISTON SET

69100-04810-000

Unavailable

3

..SEAL SET,PISTON

69100-04820-000

Unavailable

4

.SPRING,PAD

69115-06G00-000

Unavailable

5

.PIN,BOLT

59305-36E00-000

Unavailable

6

.BOOT

59303-14500-000

Unavailable

7

.PIN,PAD

69141-40F00-000

Unavailable

8

.PLUG,PIN

59146-21E10-000

Unavailable

9

.BOLT

69182-04F00-000

Unavailable

10

.SLEEVE

69185-04F00-000

Unavailable

11

.BOOT,SLEEVE

69186-04F00-000

Unavailable

12

.BLEEDER

59121-01A00-000

Unavailable

13

.CAP,BLEEDER

59122-46H00-000

Unavailable

14

.BRACKET

69150-28K00-000

Unavailable

15

PAD & RETAINER SET

69100-06830-000

Unavailable

16

.INSULATOR

69132-06G00-000

Unavailable

17

.RETAINER

69133-06G00-000

Unavailable

18

.RETAINER

69134-06G00-000

Unavailable
