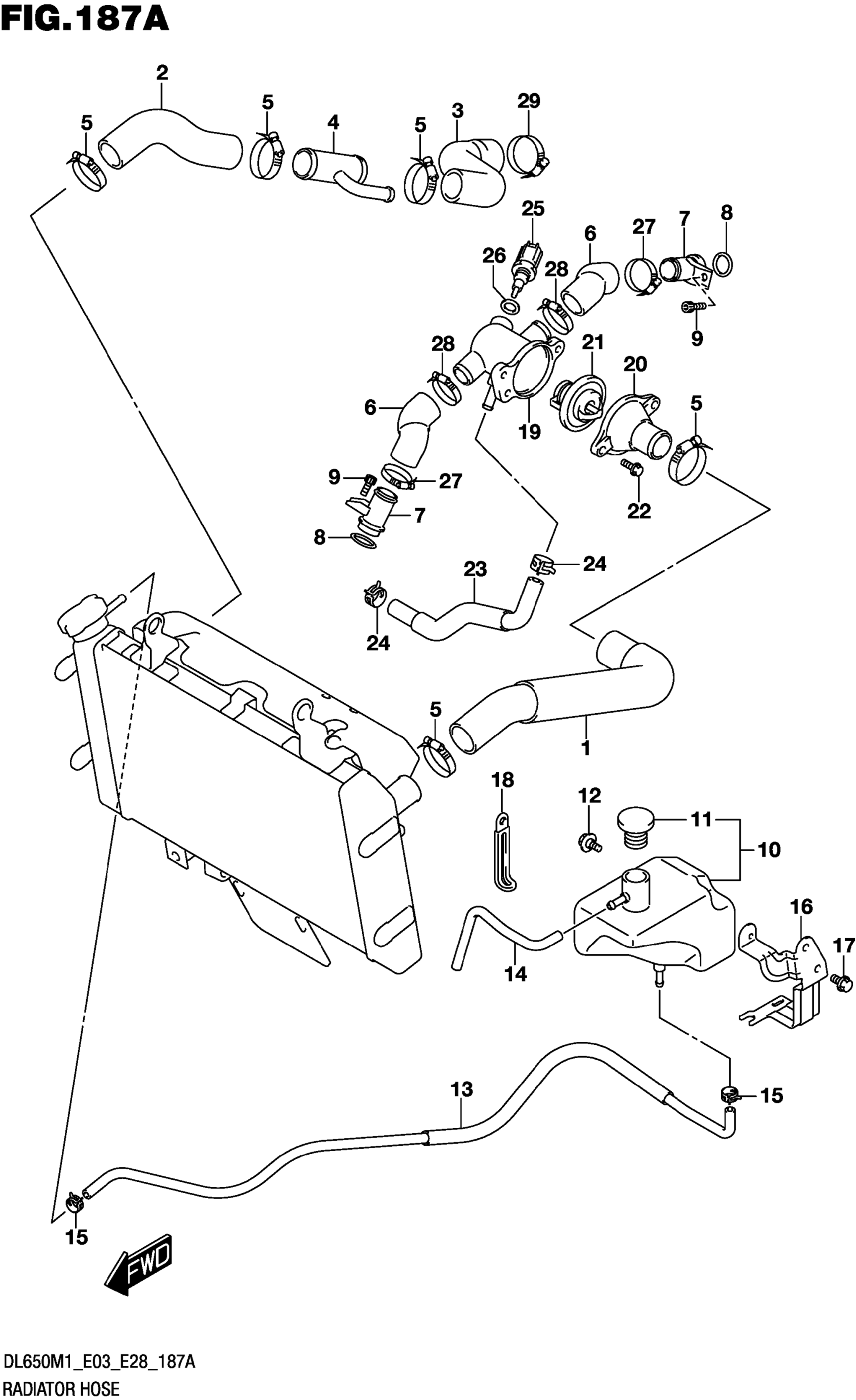

Suzuki DL650AM1 (2021) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE,RADIATOR INLET

17851-11J00-000

Unavailable

2

HOSE,RADIATOR OUTLET NO.1

17852-44H20-000

Unavailable

3

HOSE,RADIATOR OUTLET NO.2

17854-44H00-000

Unavailable

4

UNION,WATER HOSE THREE WAY

17880-44H00-000

Unavailable

5

CLAMP

09401-29001-000

Unavailable

6

HOSE,CONNECTOR INLET

17853-19F00-000

Unavailable

7

UNION,CONNECTOR HOSE

17890-06G20-000

Unavailable

8

O RING (D:3.2,ID:17.8)

09280-18008-000

Unavailable

9

BOLT

07130-0612A-000

Unavailable

10

TANK ASSY,RESERVOIR

17910-27G10-000

Unavailable

11

.CAP,RESERVOIR TANK

17931-02FA0-000

Unavailable

12

BOLT (6X12)

09111-06085-000

Unavailable

13

HOSE SET,RSVR TANK INLET

17900-27810-000

Unavailable

14

HOSE,RESERVOIR TANK OVER FLOW

17982-15H00-000

Unavailable

15

CLIP (ID:8.6)

09401-08411-000

Unavailable

16

BRACKET,RSVR TANK

17920-27G10-000

Unavailable

17

BOLT

01550-0610A-000

Unavailable

18

CLAMP (L:45)

09404-06429-000

Unavailable

19

CONNECTOR,THERMOSTAT,INLET

17662-02F11-000

Unavailable

20

CAP,THERMOSTAT CONNECTOR

17663-17G00-000

Unavailable

21

THERMOSTAT,WATER

17670-06G61-000

Unavailable

22

BOLT

01547-0616A-000

Unavailable

23

HOSE,CONNECTOR TO WTR PMP

17856-44H00-000

Unavailable

24

CLAMP

09401-12414-000

Unavailable

25

SENSOR,TEMP

13650-49X00-000

Unavailable

26

GASKET (12X17X1)

09168-12017-000

Unavailable

27

CLAMP

09401-24002-000

Unavailable

28

CLAMP

09401-25001-000

Unavailable

29

CLAMP

09401-30003-000

Unavailable
