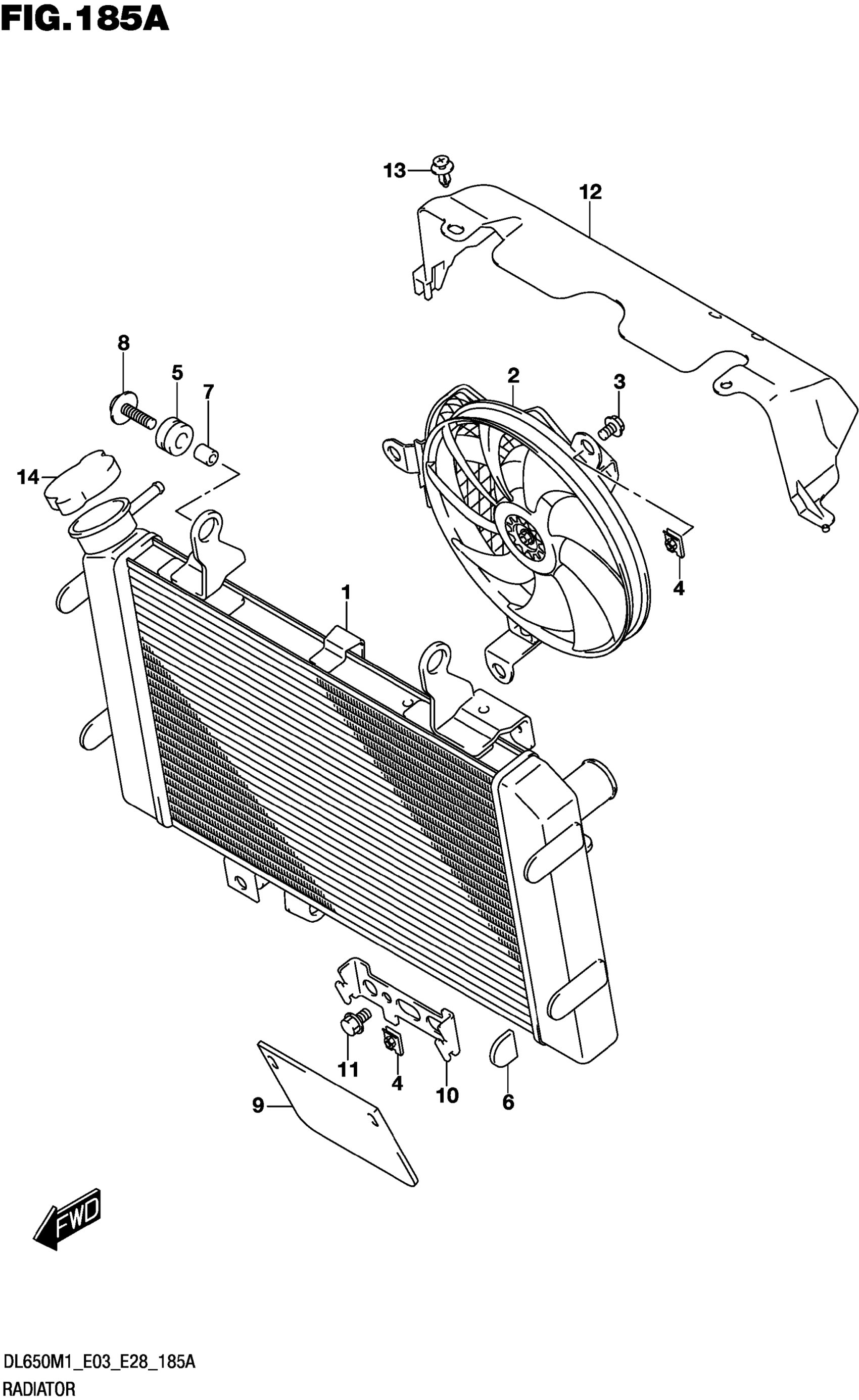

Suzuki DL650AM1 (2021) RADIATOR Diagram

#

Description

Price

1

RADIATOR ASSY,WATER

17710-11J00-000

Unavailable

2

FAN ASSY,RADIATOR

17800-11J00-000

Unavailable

3

BOLT,FAN ASSY

17711-08J00-000

Unavailable

4

NUT,FAN ASSY

17712-40F00-000

Unavailable

5

CUSHION (10X20X10)

09320-10501-000

Unavailable

6

CUSHION

09329-18001-000

Unavailable

7

SPACER (6.5X10X10)

09180-06310-000

Unavailable

8

BOLT (6X25)

09118-06097-000

Unavailable

9

RUBBER,RADIATOR UNDER

17781-17G00-000

Unavailable

10

BRACKET,RDTR UNDER RUBBER

17741-17G00-000

Unavailable

11

BOLT

01550-0612A-000

Unavailable

12

SHIELD,RADIATOR HEAT

17771-11J00-000

Unavailable

13

CLIP (5.9X20.5,BLACK)

09409-06322-5PK

$3.10

14

CAP,RADIATOR (1.1)

17730-08J00-000

Unavailable
