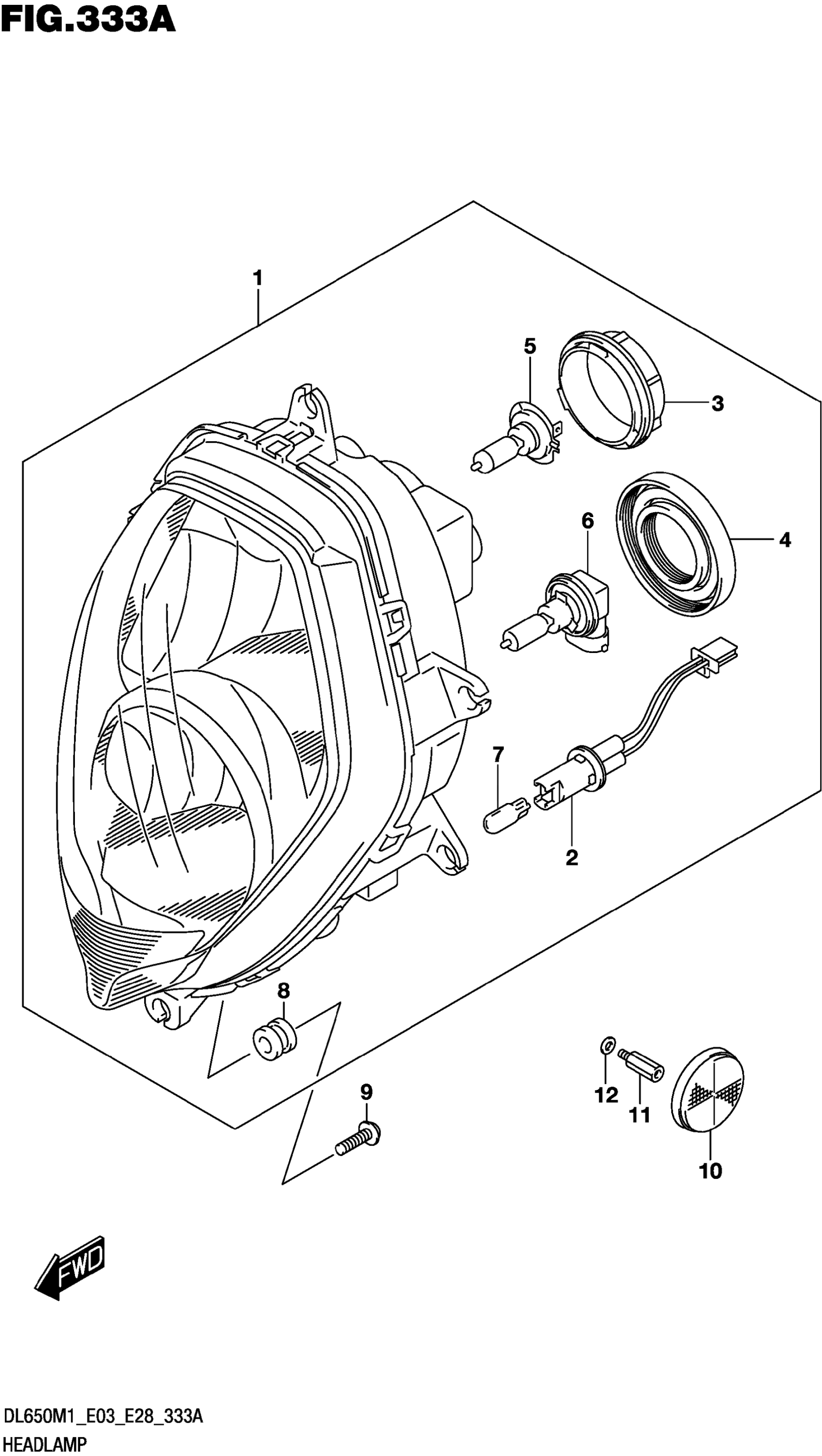

Suzuki DL650AM1 (2021) HEADLAMP Diagram

#

Description

Price

1

HEADLAMP ASSY

35100-31J01-000

Unavailable

2

.CORD ASSY

35171-31J00-000

Unavailable

3

.COVER

35179-31J00-000

Unavailable

4

.SEAL COVER

35142-31J00-000

Unavailable

5

.BULB (12V55W/H7/PX26D)

09471-12188-000

Unavailable

6

.BULB (12V65W)

09471-12222-000

Unavailable

7

.BULB (12V5W)

09471-12216-000

Unavailable

8

.CUSHION

09320-07014-000

Unavailable

9

SCREW (5X15)

09136-05062-000

Unavailable

10

REFLEX REFLECTOR ASSY,FR SIDE

35950-13K01-000

Unavailable

11

BOLT (5X10)

09119-05023-000

Unavailable

12

WASHER

08322-0105A-000

Unavailable
