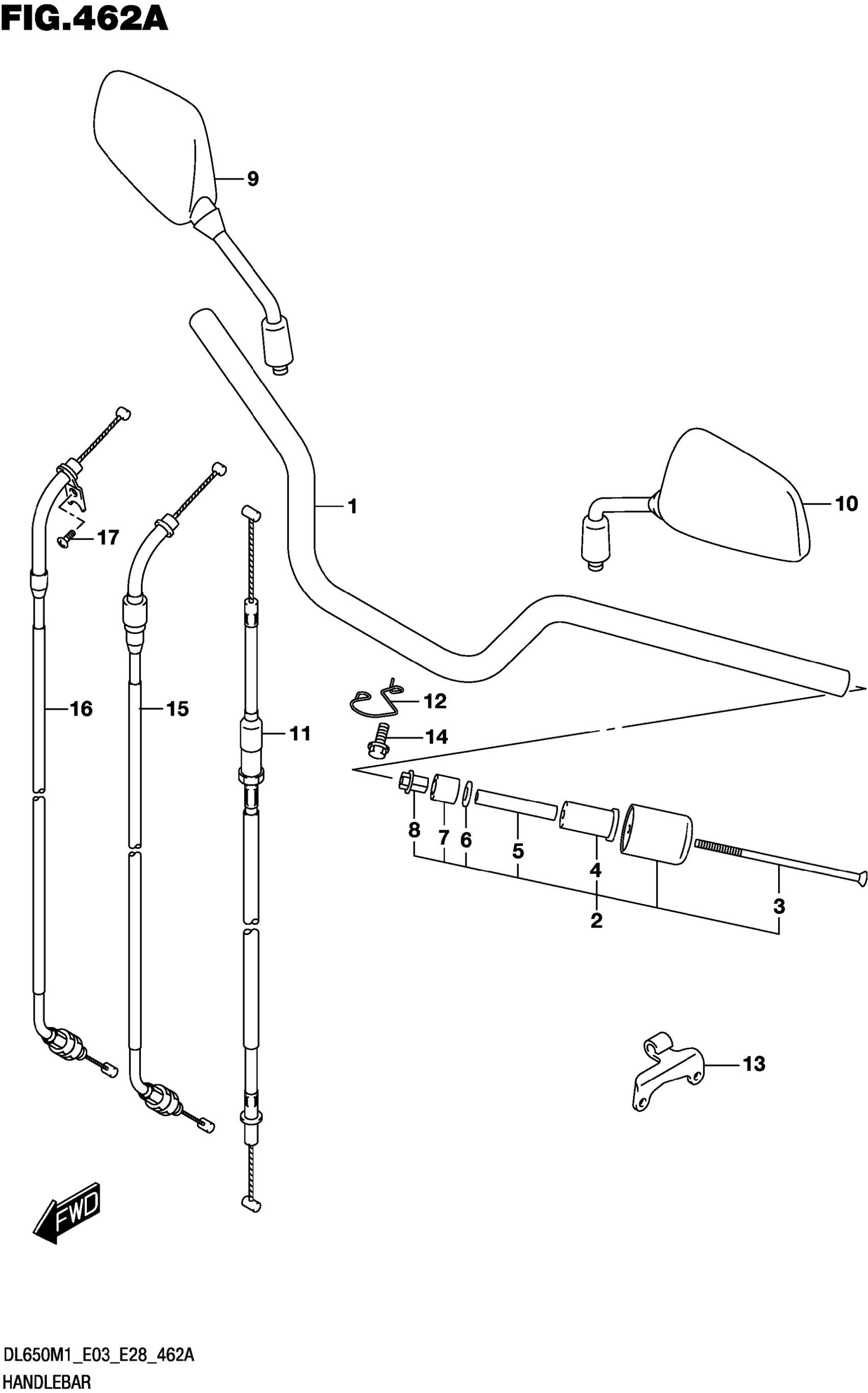

Suzuki DL650AM1 (2021) HANDLEBAR (DL650A) Diagram

#

Description

Price

1

HANDLEBAR (SILVER)

56111-28K00-YUS

$106.72

2

BALANCER SET,HANDLEBAR

56200-16843-000

Unavailable

3

.SCREW (6X110)

09127-06018-000

Unavailable

4

.EXPANDER

56272-06G00-000

Unavailable

5

.SPACER,EXPANDER

56276-17D00-000

Unavailable

6

.WASHER (6.5X16X4)

09160-06131-000

Unavailable

7

.EXPANDER,HANDLE BALANCER

56272-10G01-000

Unavailable

8

.NUT,HANDLE BALANCER

56273-10G10-000

Unavailable

9

MIRROR ASSY,RR VIEW RH

56500-04F30-000

Unavailable

10

MIRROR ASSY,RR VIEW LH

56600-04F30-000

Unavailable

11

CABLE ASSY,CLUTCH

58200-11J00-000

Unavailable

12

GUIDE,CLUTCH CABLE

58631-11J10-000

Unavailable

13

STOPPER,CLUTCH CABLE

58634-44H00-000

Unavailable

14

BOLT

01547-0612A-000

Unavailable

15

CABLE ASSY,THROTTLE NO.1

58300-11J01-000

Unavailable

16

CABLE ASSY,THROTTLE NO.2

58300-11J11-000

Unavailable

17

SCREW (5X10)

09125-05042-000

Unavailable
