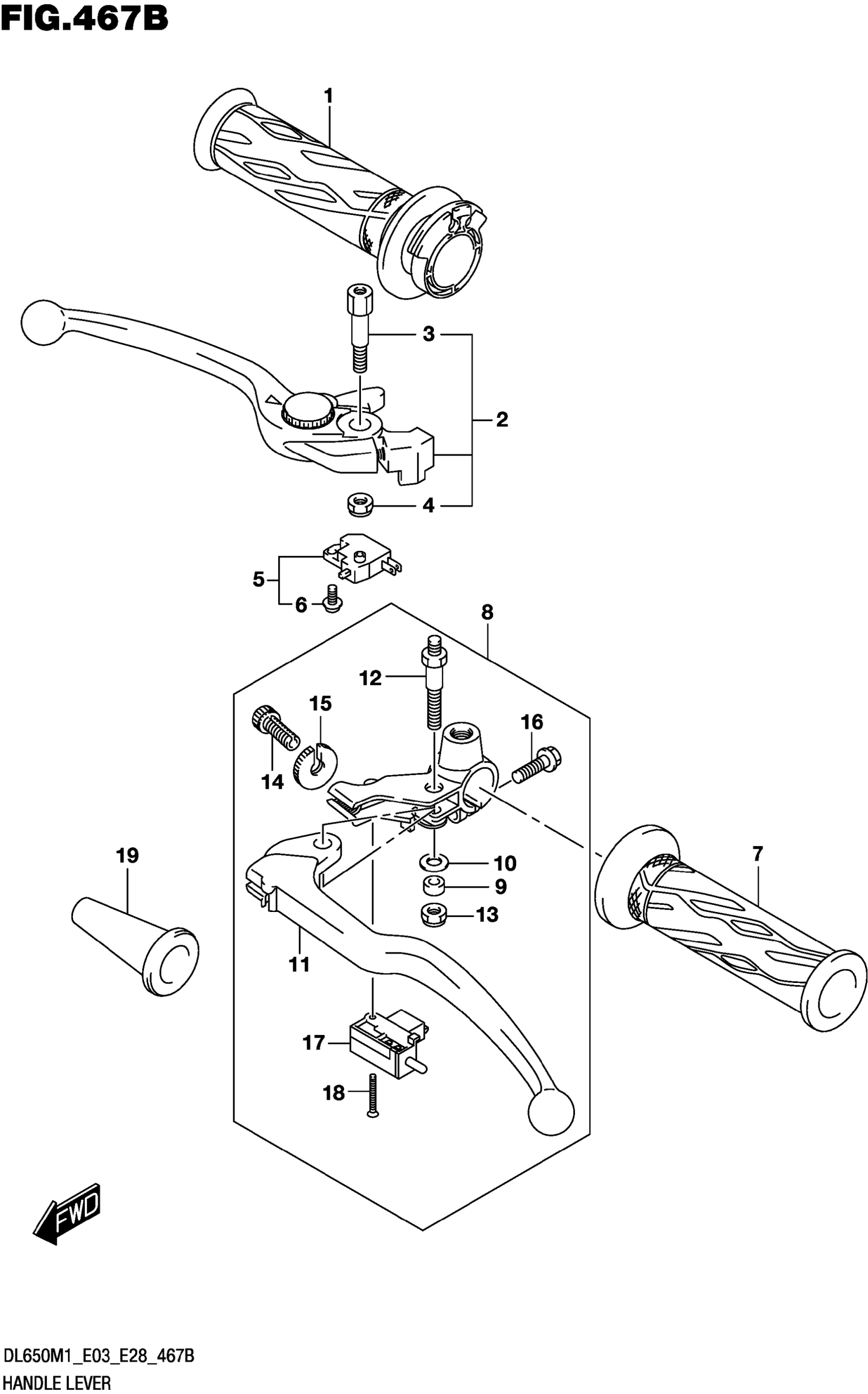

Suzuki DL650AM1 (2021) HANDLE LEVER (DL650XA) Diagram

#

Description

Price

1

GRIP,THROTTLE

57110-21H02-000

Unavailable

2

LEVER ASSY,BRAKE

57300-06G20-000

Unavailable

3

.BOLT,BRAKE LEVER PIVOT

57431-06GA0-000

Unavailable

4

.NUT

08319-2106A-000

Unavailable

5

SWITCH ASSY,FR BRAKE

57460-14J02-000

Unavailable

6

.SCREW,WITH WASHER (4X12)

57465-17C00-000

Unavailable

7

GRIP LH

57211-21H01-000

Unavailable

8

LEVER ASSY,CLUTCH

57500-25D21-000

Unavailable

9

.SPACER (6.5X10X8)

09180-06346-000

Unavailable

10

WASHER

08322-0106B-000

Unavailable

11

.LEVER,CLUTCH

57621-33E01-000

Unavailable

12

.BOLT,CLUTCH LEVER PIVOT

57531-10D20-000

Unavailable

13

.NUT

08319-2106A-000

Unavailable

14

.ADJUSTER,WIRE

57441-45C00-000

Unavailable

15

.NUT,LOCK

57442-45C00-000

Unavailable

16

.BOLT

01547-0620B-000

Unavailable

17

.SWITCH,CLUTCH

57560-05A00-000

Unavailable

18

.SCREW

57562-41G01-000

Unavailable

19

BOOT,CLUTCH CABLE

58273-31001-000

Unavailable
