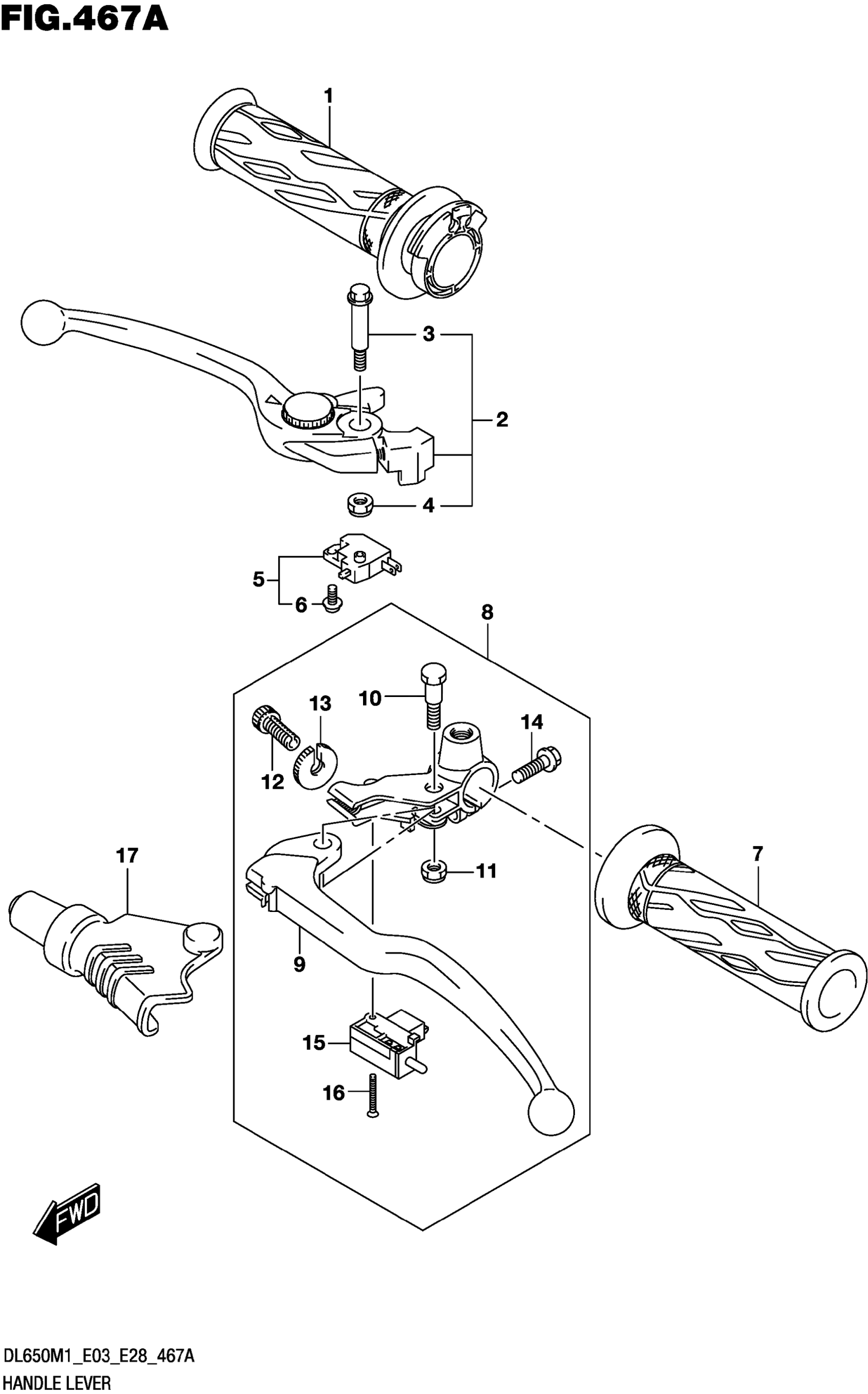

Suzuki DL650AM1 (2021) HANDLE LEVER (DL650A) Diagram

#

Description

Price

1

GRIP,THROTTLE

57110-21H02-000

Unavailable

2

LEVER ASSY,FR BRAKE

57300-44G12-000

Unavailable

3

.BOLT,LEVER PIVOT

57431-17H02-000

Unavailable

4

.NUT

08319-2106A-000

Unavailable

5

SWITCH ASSY,FR BRAKE

57460-14J02-000

Unavailable

6

.SCREW,WITH WASHER (4X12)

57465-17C00-000

Unavailable

7

GRIP LH

57211-21H01-000

Unavailable

8

LEVER ASSY,CLUTCH

57500-25D02-000

Unavailable

9

.LEVER,CLUTCH

57621-33E01-000

Unavailable

10

.BOLT,LEVER PIVOT

57431-45C01-000

Unavailable

11

.NUT

08319-2106A-000

Unavailable

12

.ADJUSTER,WIRE

57441-45C00-000

Unavailable

13

.NUT,LOCK

57442-45C00-000

Unavailable

14

.BOLT

01547-0620B-000

Unavailable

15

.SWITCH,CLUTCH

57560-05A00-000

Unavailable

16

.SCREW

57562-41G01-000

Unavailable

17

COVER,CLUTCH LEVER

57661-33E01-000

Unavailable
