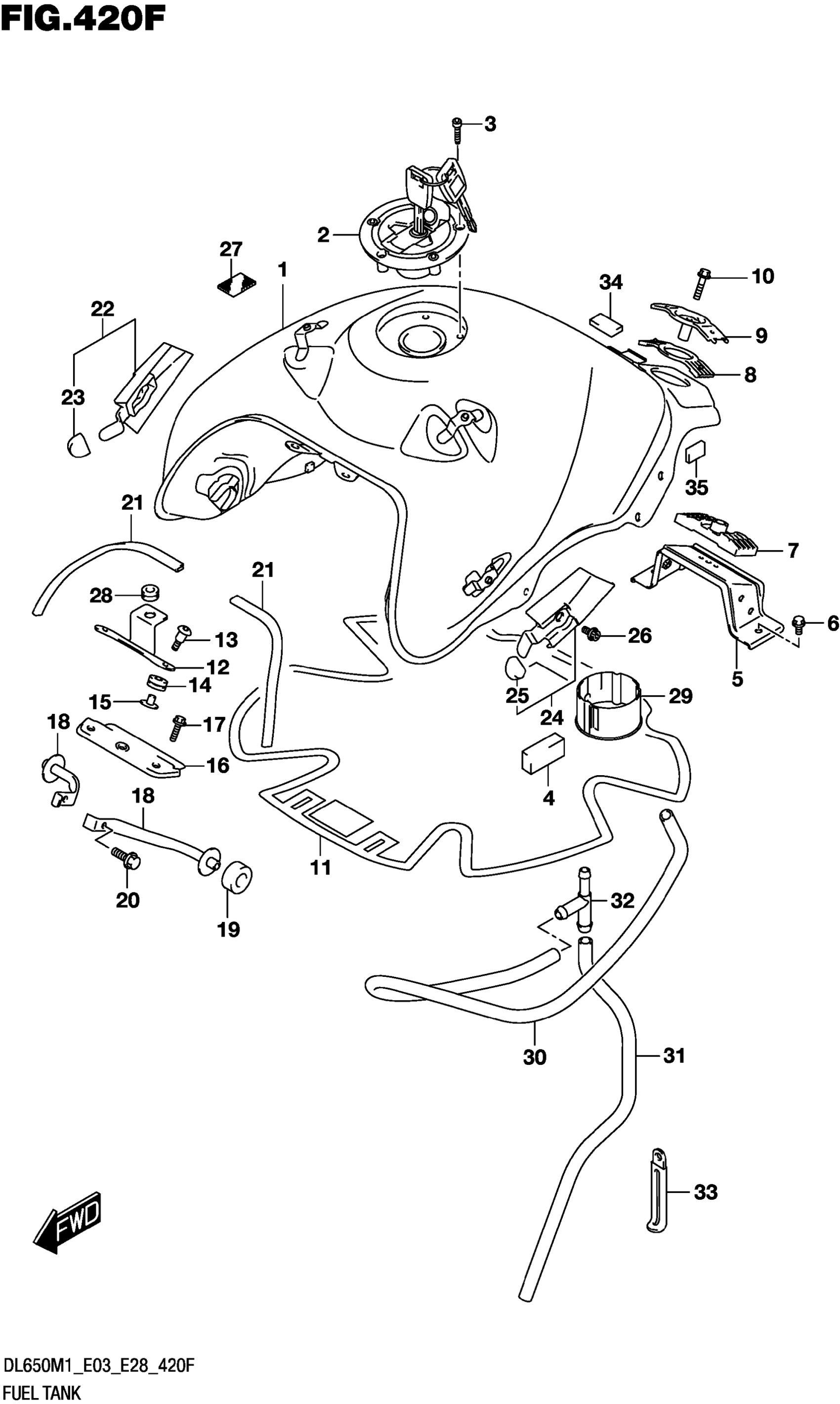

Suzuki DL650AM1 (2021) FUEL TANK ((DL650A):(E33)) Diagram

#

Description
Price

1-1

TANK ASSY,FUEL (GRAY) | FOR QEB

44100-28K00-QEB

$1,124.85

1-2

TANK ASSY, FUEL (WHITE) | FOR YUH

44100-28K00-YUH

$1,124.85

1-3

TANK ASSY,FUEL (RED) | FOR YYG

44100-28K00-YYG

$1,197.63

2

CAP SET,FUEL TANK FILLER

44200-17840-000

Unavailable

3

BOLT,FUEL TANK FILLER CAP

44244-11J00-000

Unavailable

4

CUSHION,FUEL TANK SIDE

44541-28K00-000

Unavailable

5

BRACKET,FUEL TANK REAR

44550-06G10-000

Unavailable

6

BOLT (8X16)

01550-0816A-000

Unavailable

7

CUSHION,FUEL TANK REAR LOWER

44545-06G00-000

Unavailable

8

CUSHION,FUEL TANK REAR UPPER

44542-06G00-000

Unavailable

9

BRACKET,FUEL TANK REAR UP

44530-06G00-000

Unavailable

10

BOLT

01550-0835A-000

Unavailable

11

SHIELD,FUEL TANK CENTER

44194-11J00-000

Unavailable

12

BRACKET,FRONT COVER

44154-11J00-000

Unavailable

13

SCREW (6X25)

09139-06192-000

Unavailable

14

CUSHION,FUEL TANK FRONT

44511-16G01-000

Unavailable

15

SPACER,FUEL TANK,FR

44512-16G00-000

Unavailable

16

BRACKET,FUEL TANK FRONT

44520-11J00-000

Unavailable

17

BOLT

01550-0620B-000

Unavailable

18

BRACKET,FRONT SIDE

44560-11J00-000

Unavailable

19

CUSHION,FRONT SIDE BRKT

44543-31J01-000

Unavailable

20

BOLT

01550-0612A-000

Unavailable

21

MOLDING,FUEL TANK

68241-11J01-000

Unavailable

22

BRACKET,FUEL TANK COVER RH

44130-28K00-000

Unavailable

23

CUSHION

09329-18001-000

Unavailable

24

BRACKET,FUEL TANK COVER LH

44140-28K00-000

Unavailable

25

CUSHION

09329-18001-000

Unavailable

26

BOLT

07120-0610A-000

Unavailable

27

FASTENER,COWLING (20X15X0.8)

44572-37H00-000

Unavailable

28

CUSHION (6X18X6)

09320-06504-000

Unavailable

29

VESSEL,FUEL TANK INNER

44121-28K01-000

Unavailable

30

HOSE,FUEL TANK DRAIN NO.1

44423-28K01-000

Unavailable

31

HOSE,FUEL TANK DRAIN NO.2

44423-11J31-000

Unavailable

32

3 WAY

09367-08005-000

Unavailable

33

CLAMP (L:80)

09404-06030-000

Unavailable

34

CUSHION (15X27X2)

45516-01H00-000

Unavailable

35

CUSHION,FRAME COVER FRONT RR

47122-28K00-000

Unavailable
