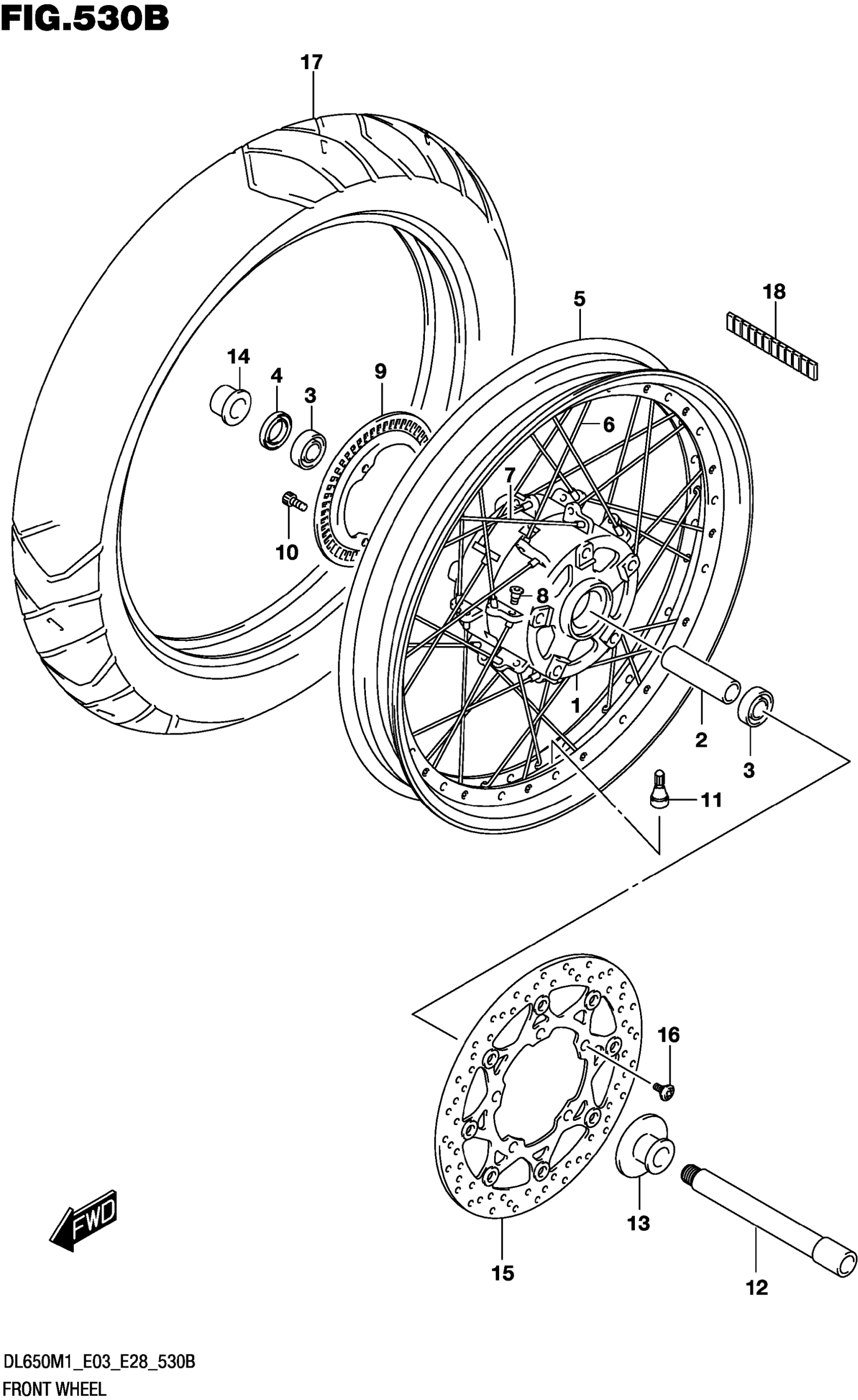

Suzuki DL650AM1 (2021) FRONT WHEEL (DL650XA) Diagram

#

Description
Price

1

HUB,FRONT

54111-11J00-000

Unavailable

2

SPACER (17.5X25X88)

09180-17067-000

Unavailable

3

BEARING,FRONT HUB

08123-6203B-000

Unavailable

4

SEAL,FRONT HUB BRG DUST

54841-28K00-000

Unavailable

5-1

RIM,FR WHEEL (19M/CXMT2.50) | BODY COLOR:AV4

55311-11J00-000

Unavailable

5-2

RIM,FR WHEEL (19M/CXMT2.50) | BODY COLOR:YU1,YUH

55311-11J10-000

Unavailable

5-3

RIM,FR WHEEL (19M/CXMT2.50) | BODY COLOR:QEB

55311-11J20-000

Unavailable

6

SPOKE,FRONT WHEEL INNER

55321-11J00-000

Unavailable

7

SPOKE,FRONT WHEEL OUTER

55322-11J00-000

Unavailable

8

NIPPLE,WHEEL

55326-11J00-000

Unavailable

9

RING,SPEED SENSOR (50T)

54162-28K00-000

Unavailable

10

BOLT

07130-0512A-000

Unavailable

11

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00-000

Unavailable

12

AXLE,FRONT

54711-08F10-000

Unavailable

13

SPACER,FRONT AXLE LH

54750-31F00-000

Unavailable

14

SPACER,FRONT AXLE

54751-10G01-000

Unavailable

15

DISC,FRONT BRAKE

59210-44G11-000

Unavailable

16

BOLT (8X21)

09106-08160-000

Unavailable

17

TIRE,FRONT (BATTLAX ADVENTURE | A40F F)

55110-28K00-000

Unavailable

18

WEIGHT,WHEEL BALANCE (5GRAM)

55411-11J00-000

Unavailable
