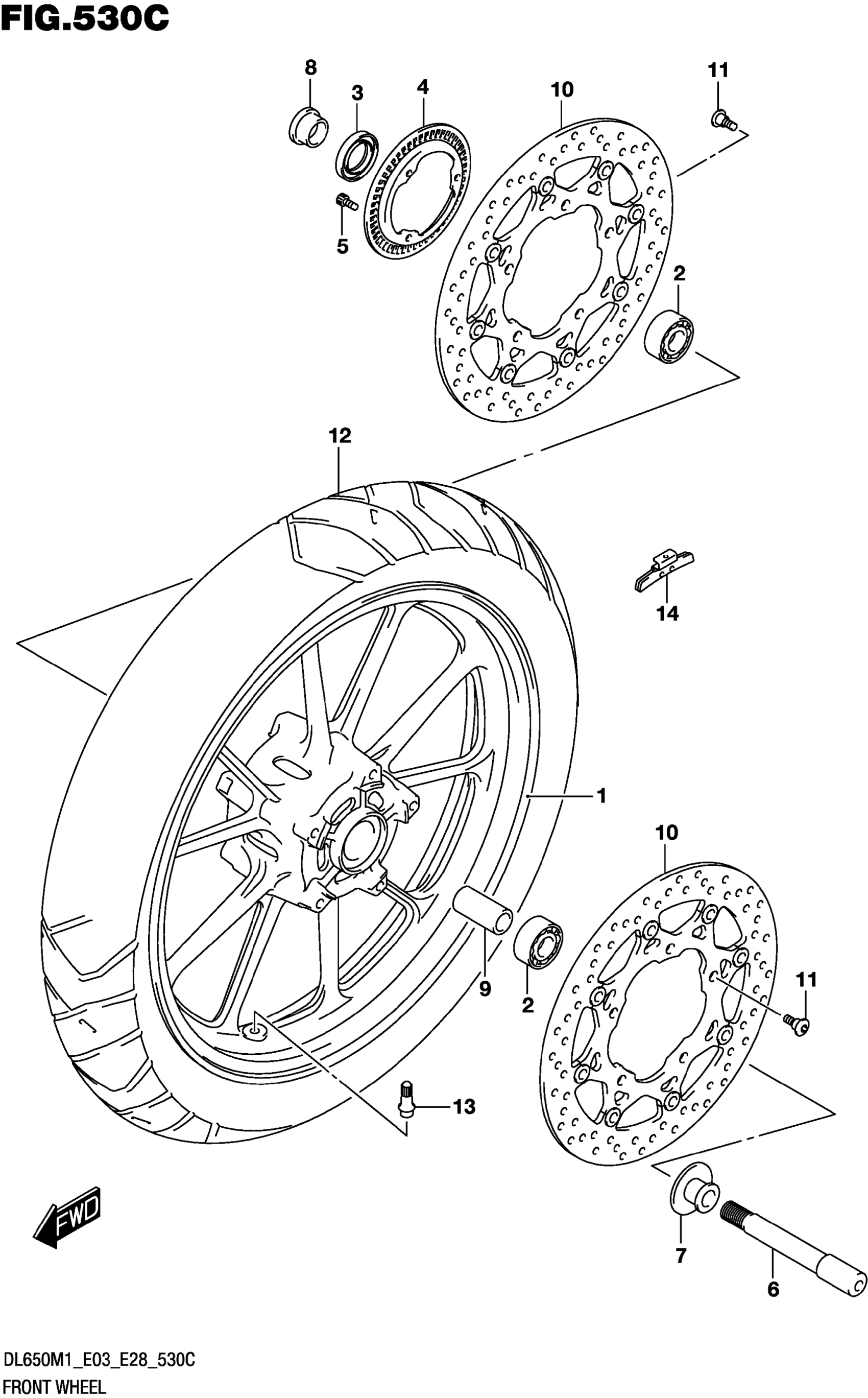

Suzuki DL650AM1 (2021) FRONT WHEEL (DL650A) Diagram

#

Description
Price

1

WHEEL, FRONT (19M/CXMT2.50) | K)

54111-28K00-019

$788.92

2

BEARING,FRONT HUB

08123-6203B-000

Unavailable

3

SEAL,FRONT HUB BRG DUST

54841-28K00-000

Unavailable

4

RING,SPEED SENSOR (50T)

54162-28K00-000

Unavailable

5

BOLT

07130-0512A-000

Unavailable

6

AXLE,FRONT

54711-08F10-000

Unavailable

7

SPACER,FRONT AXLE LH

54750-31F00-000

Unavailable

8

SPACER,FRONT AXLE

54751-10G01-000

Unavailable

9

SPACER (17.5X25X88)

09180-17067-000

Unavailable

10

DISC,FRONT BRAKE

59210-44G11-000

Unavailable

11

BOLT (8X21)

09106-08160-000

Unavailable

12

TIRE,FRONT (BATTLAX ADVENTURE | A40F F)

55110-28K00-000

Unavailable

13

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00-000

Unavailable

14-1

BALANCER,WHEEL NO.1 (10G)

55411-22H00-000

Unavailable

14-2

BALANCER,WHEEL NO.2 (20G)

55412-22H00-000

Unavailable

14-3

BALANCER,WHEEL NO.3 (30G)

55413-22H00-000

Unavailable
