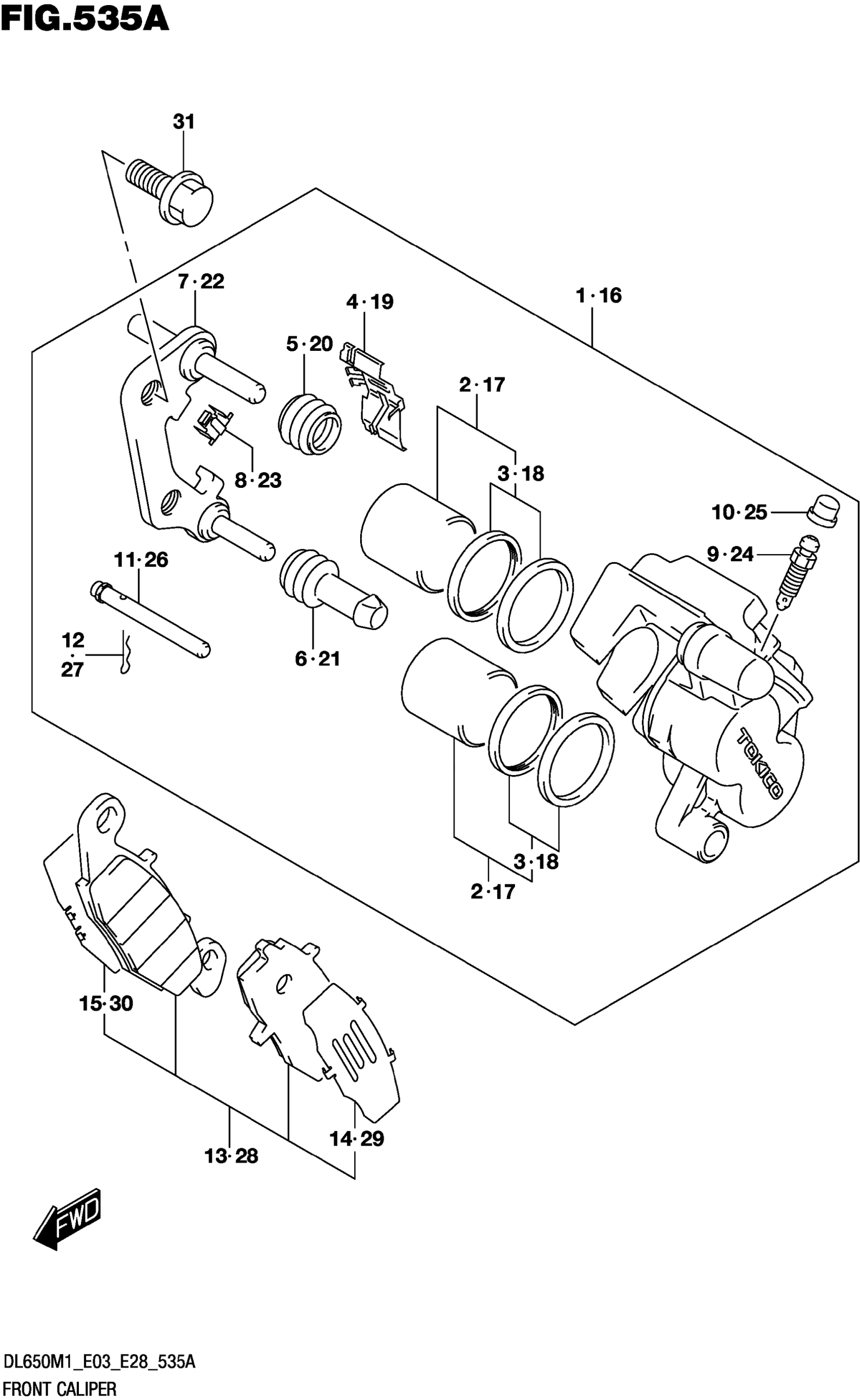

Suzuki DL650AM1 (2021) FRONT CALIPER Diagram

#

Description

Price

1

CALIPER ASSY, FRONT RH

59100-33DQ0-999

$397.78

2

.PISTON SET

59300-01820-000

Unavailable

3

..SEAL SET,PISTON

59100-04851-000

Unavailable

4

.SPRING,PAD,R

59115-33D00-000

Unavailable

5

.BOOT,AXLE

59112-44B00-000

Unavailable

6

.INSULATOR,AXLE

59313-36500-000

Unavailable

7

.CARRIER,CALIPER,R

59150-33D01-000

Unavailable

8

.GUIDE,PAD

59116-33D00-000

Unavailable

9

.BLEEDER

59121-18410-000

Unavailable

10

.CAP,BLEEDER PLUG (M10X1)

55156-66310-000

Unavailable

11

.PIN,PAD

59141-44B01-000

Unavailable

12

.CLIP,PAD PIN

69142-45000-000

Unavailable

13

PAD & SHIM SET RH

59102-33870-000

Unavailable

14

.SHIM,PAD

59171-33D00-000

Unavailable

15

.SHIM,PAD NO.2

59172-33D00-000

Unavailable

16

CALIPER ASSY, FRONT LH

59300-33DQ0-999

$397.78

17

.PISTON SET

59300-01820-000

Unavailable

18

..SEAL SET,PISTON

59100-04851-000

Unavailable

19

.SPRING,PAD LH

59315-33D00-000

Unavailable

20

.BOOT,AXLE

59112-44B00-000

Unavailable

21

.INSULATOR,AXLE

59313-36500-000

Unavailable

22

.CARRIER,CALIPER LH

59350-33D01-000

Unavailable

23

.GUIDE,PAD

59116-33D00-000

Unavailable

24

.BLEEDER

59121-18410-000

Unavailable

25

.CAP,BLEEDER PLUG (M10X1)

55156-66310-000

Unavailable

26

.PIN,PAD

59141-44B01-000

Unavailable

27

.CLIP,PAD PIN

69142-45000-000

Unavailable

28

PAD & SHIM SET LH

59302-33850-000

Unavailable

29

.SHIM,PAD

59171-33D00-000

Unavailable

30

.SHIM,PAD NO.2

59172-33D00-000

Unavailable

31

BOLT

01550-1025A-000

Unavailable
