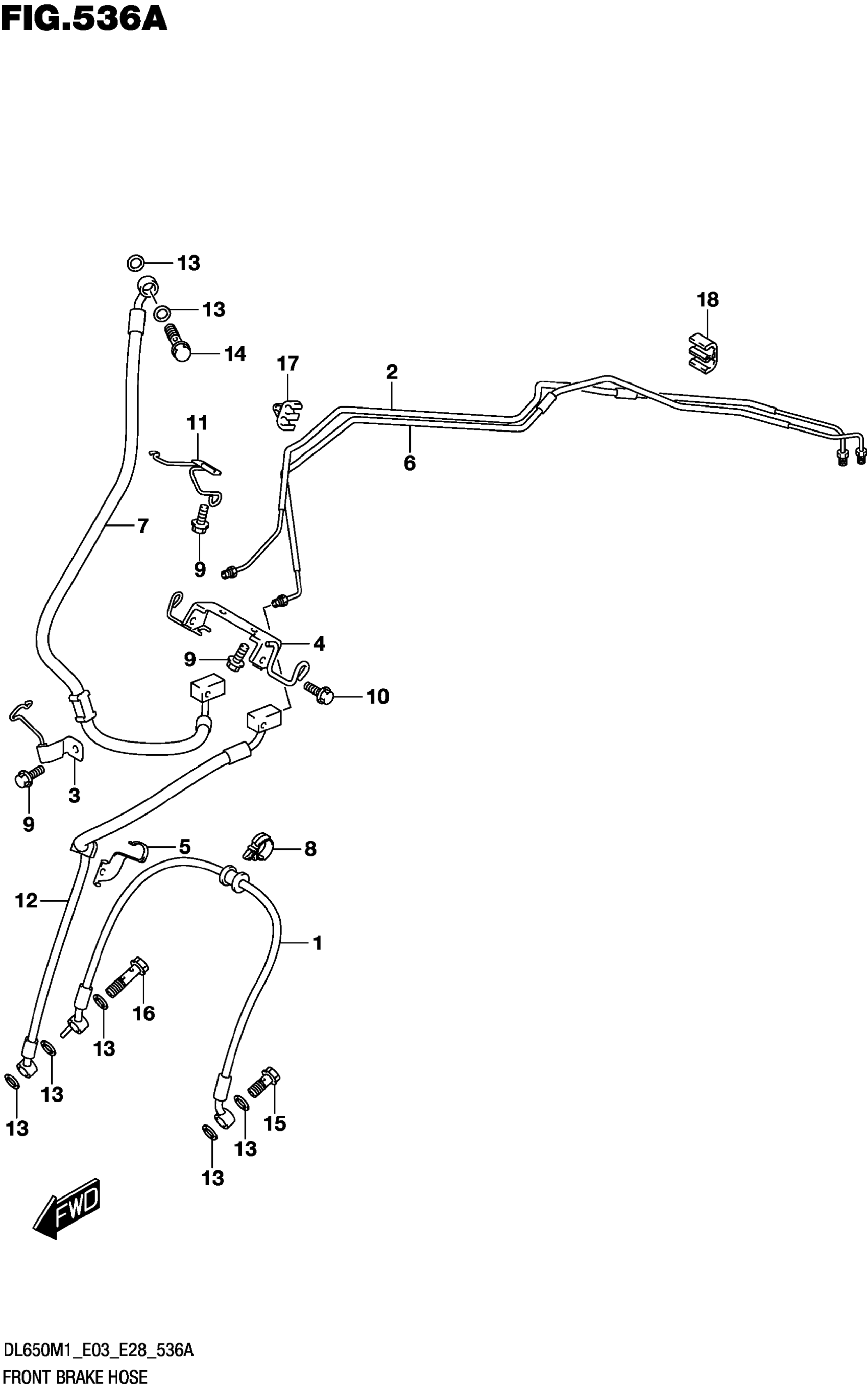

Suzuki DL650AM1 (2021) FRONT BRAKE HOSE Diagram

#

Description

Price

1

HOSE,FR BRAKE NO.2

59240-11J00-000

Unavailable

2

PIPE,BK JOINT R TO HU

59250-28K00-000

Unavailable

3

CLAMP,FR BRAKE HOSE | FRONT BRAKE HOSE NO.1

59260-06G10-000

Unavailable

4

CLAMP,FR BK HOSE NO.2

59260-11J00-000

Unavailable

5

CLAMP,FR BRAKE HOSE RH

59268-11J00-000

Unavailable

6

PIPE,HU TO BK JOINT LH

59450-28K00-000

Unavailable

7

HOSE,FR BRAKE NO.1

59480-11J01-000

Unavailable

8

CLAMP

09403-16412-000

Unavailable

9

BOLT

01547-0612A-000

Unavailable

10

BOLT

01547-0616A-000

Unavailable

11

GUIDE,FR BRAKE HOSE

59540-11J00-000

Unavailable

12

HOSE,FR BRAKE NO.3

59560-11J01-000

Unavailable

13

WASHER (10X15X1.5)

09161-10009-000

Unavailable

14

UNION (10X1.25X22)

09360-10062-000

Unavailable

15

UNION (10X1.25X22)

09360-10062-000

Unavailable

16

UNION (10X1.25X36)

09360-10064-000

Unavailable

17

CLAMP

09403-07344-000

Unavailable

18

CLAMP

09403-06324-000

Unavailable
