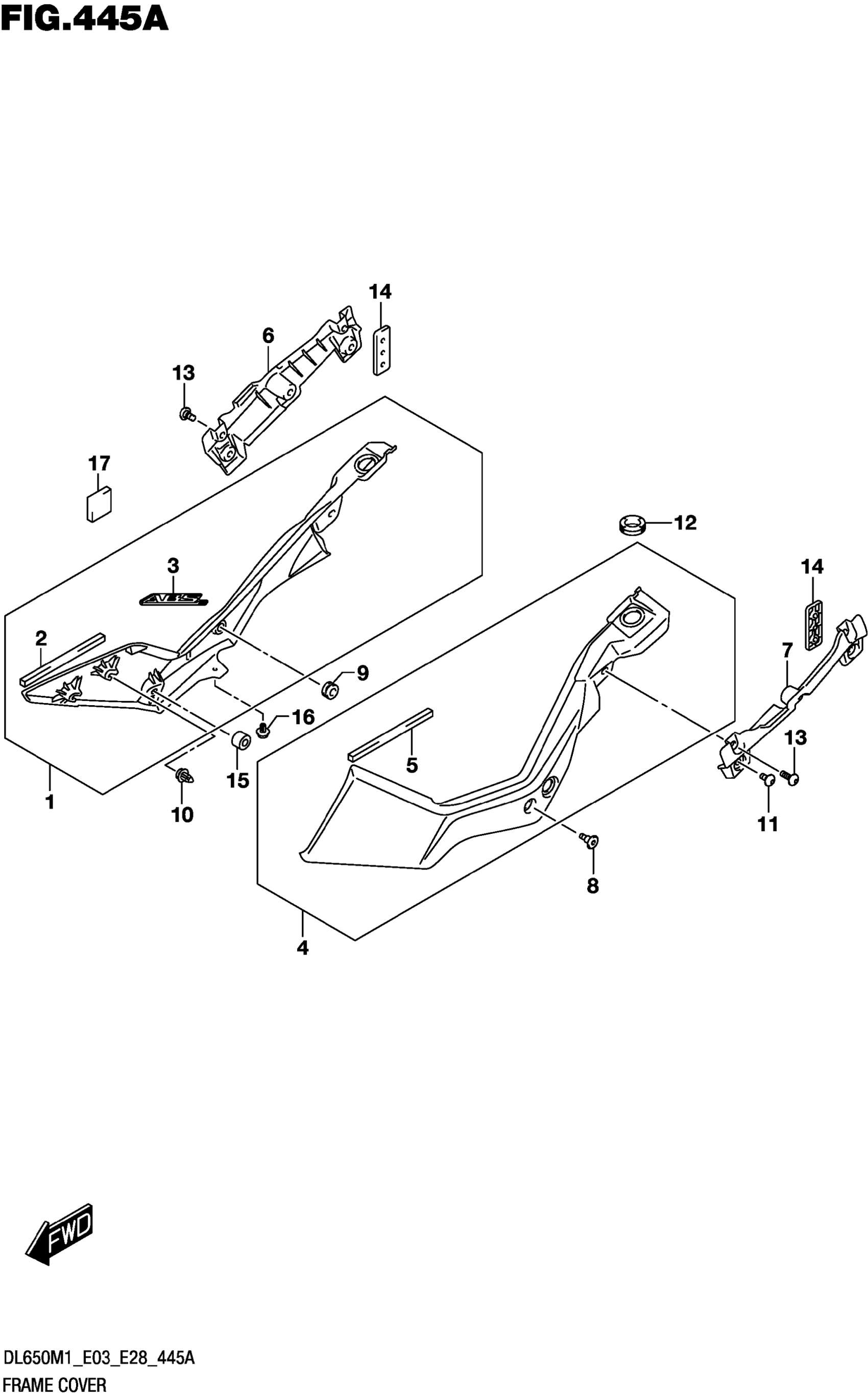

Suzuki DL650AM1 (2021) FRAME COVER Diagram

#

Description

Price

1

COVER, FRAME RH

47110-28K01-GWM

$139.62

2

.CUSHION,FRAME COVER FRONT FR

47121-28K00-000

Unavailable

3

.EMBLEM, ABS

68131-28K00-GWM

Unavailable

4

COVER,FRAME LH

47210-28K00-000

Unavailable

5

.CUSHION,FRAME COVER FRONT FR

47121-28K00-000

Unavailable

6

COVER,FRAME REAR RH

47411-31J10-000

Unavailable

7

COVER,FRAME REAR LH

47511-31J10-000

Unavailable

8

SCREW (6X20)

09139-06211-000

Unavailable

9

CUSHION (9X18X9.5)

09320-09016-000

Unavailable

10

CLIP

09409-10313-000

Unavailable

11

SCREW (6X12)

47913-31J00-000

Unavailable

12

CUSHION (20X32X9)

09320-20011-000

Unavailable

13

SCREW (6X16)

09139-06120-000

Unavailable

14

SPACER,FRAME COVER

47510-28K00-000

Unavailable

15

CUSHION

09321-10001-000

Unavailable

16

CLIP

09409-06328-000

Unavailable

17

CUSHION,FRAME COVER

47123-28K00-000

Unavailable
