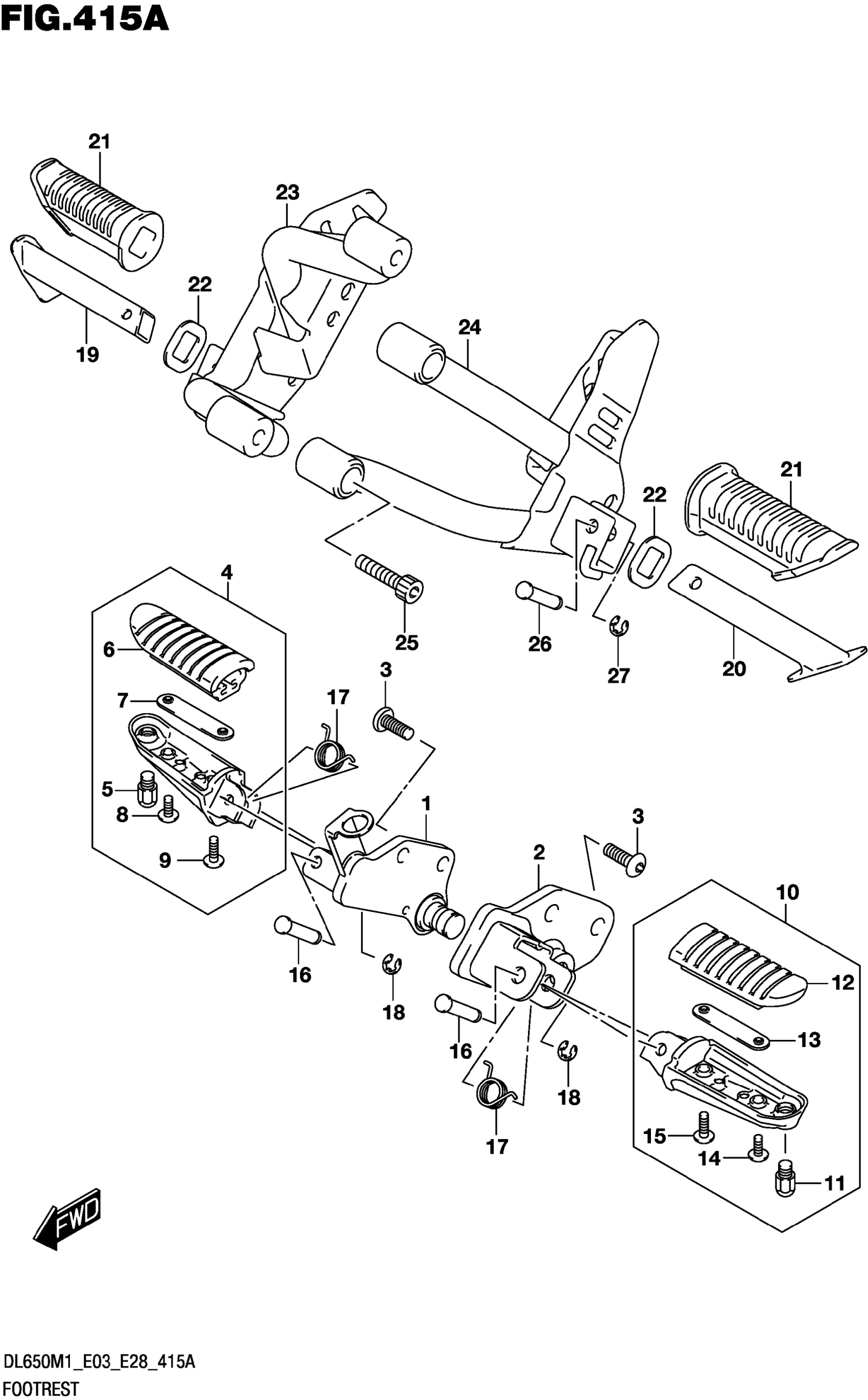

Suzuki DL650AM1 (2021) FOOTREST Diagram

#

Description
Price

1

BRACKET, FR FOOTREST RH

43510-11J00-YAP

$82.00

2

BRACKET, FR FOOTREST LH

43520-11J00-YAP

$64.48

3

BOLT (8X23)

09106-08150-000

Unavailable

4

FOOTREST ASSY,RH

43501-06G01-000

Unavailable

5

.BOLT,BANK SENSOR

43576-07D01-000

Unavailable

6

.RUBBER,FOOTREST

43551-06G00-000

Unavailable

7

.PLATE,FR FOOTREST RUBBER

43552-06G00-000

Unavailable

8

.SCREW

02142-0516B-000

Unavailable

9

SCREW

02142-0520B-000

Unavailable

10

FOOTREST ASSY,LH

43502-06G01-000

Unavailable

11

.BOLT,BANK SENSOR

43576-07D01-000

Unavailable

12

.RUBBER,FOOTREST

43551-06G00-000

Unavailable

13

.PLATE,FR FOOTREST RUBBER

43552-06G00-000

Unavailable

14

.SCREW

02142-0516B-000

Unavailable

15

SCREW

02142-0520B-000

Unavailable

16

PIN (8X33.2)

09208-08010-000

Unavailable

17

SPRING

09448-18022-000

Unavailable

18

E RING

08332-1106B-000

Unavailable

19

BAR,PILLION FOOTREST RH

43610-34A60-000

Unavailable

20

BAR,PILLION FOOTREST LH

43710-34A60-000

Unavailable

21

RUBBER,PILLION FOOTREST

43612-33G30-000

Unavailable

22

WASHER,FOOTREST RUBBER

43631-34A01-000

Unavailable

23

BRACKET, PILLION FTRST RH | K)

43810-28K00-YAP

$153.65

24

BRACKET, PILLION FTRST LH | K)

43820-28K00-YAP

$156.55

25

BOLT (8X40)

09106-08074-000

Unavailable

26

PIN (6X29.5)

09208-06008-000

Unavailable

27

E RING

08332-1104A-000

Unavailable
