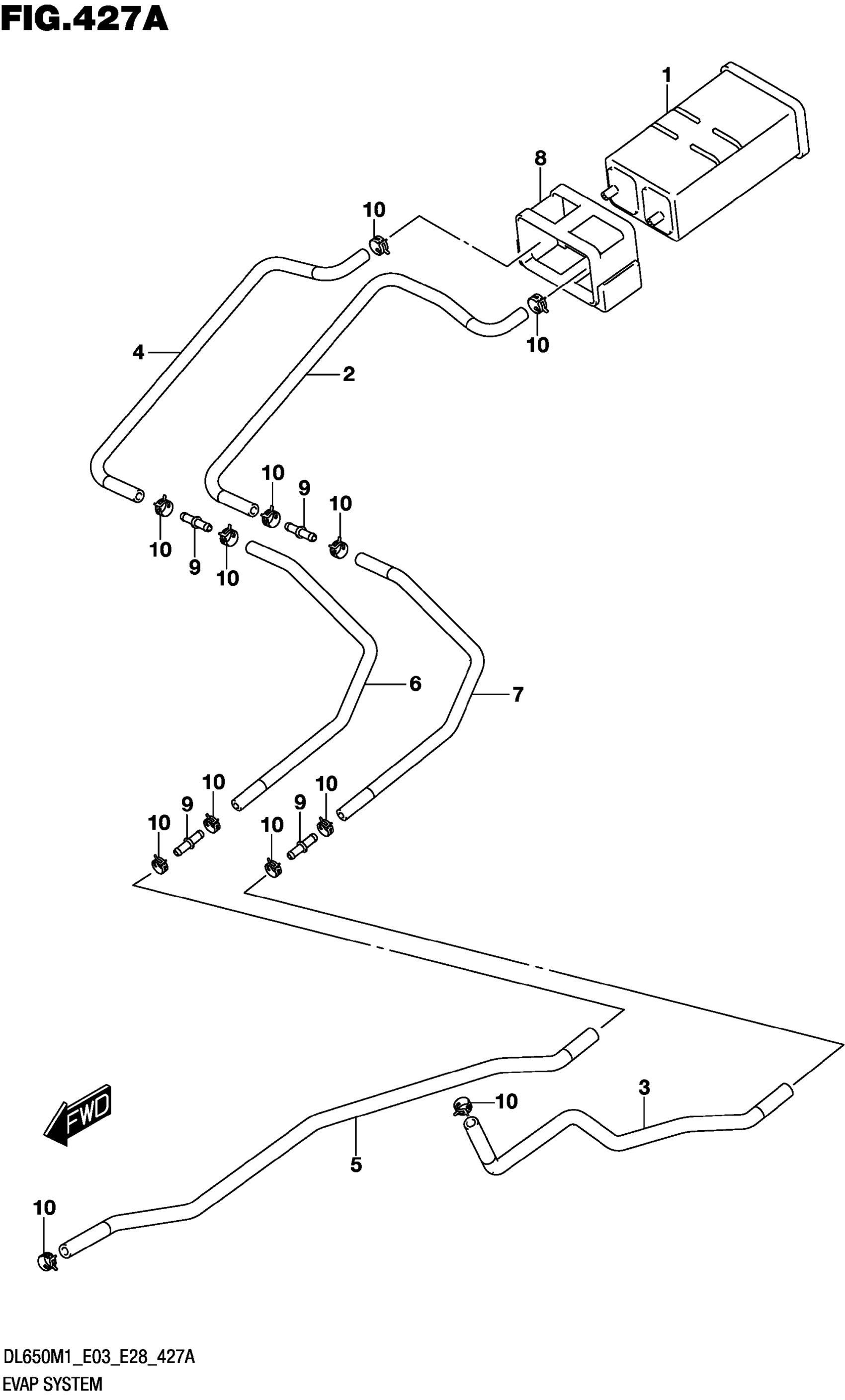

Suzuki DL650AM1 (2021) EVAP SYSTEM Diagram

#

Description

Price

1

CANISTER ASSY,CHARCOAL

18560-31J00-000

Unavailable

2

HOSE,SURGE NO.1

18561-28K00-000

Unavailable

3

HOSE,SURGE NO.2

18562-28K00-000

Unavailable

4

HOSE,PURGE NO.1

18563-28K00-000

Unavailable

5

HOSE,PURGE NO.2

18564-28K00-000

Unavailable

6

HOSE,EVAP

18565-28K00-000

Unavailable

7

HOSE,EVAP

18566-28K00-000

Unavailable

8

CUSHION,CANISTER

18571-31J00-000

Unavailable

9

JOINT

09367-06009-000

Unavailable

10

CLIP (ID:11)

09401-11413-000

Unavailable
