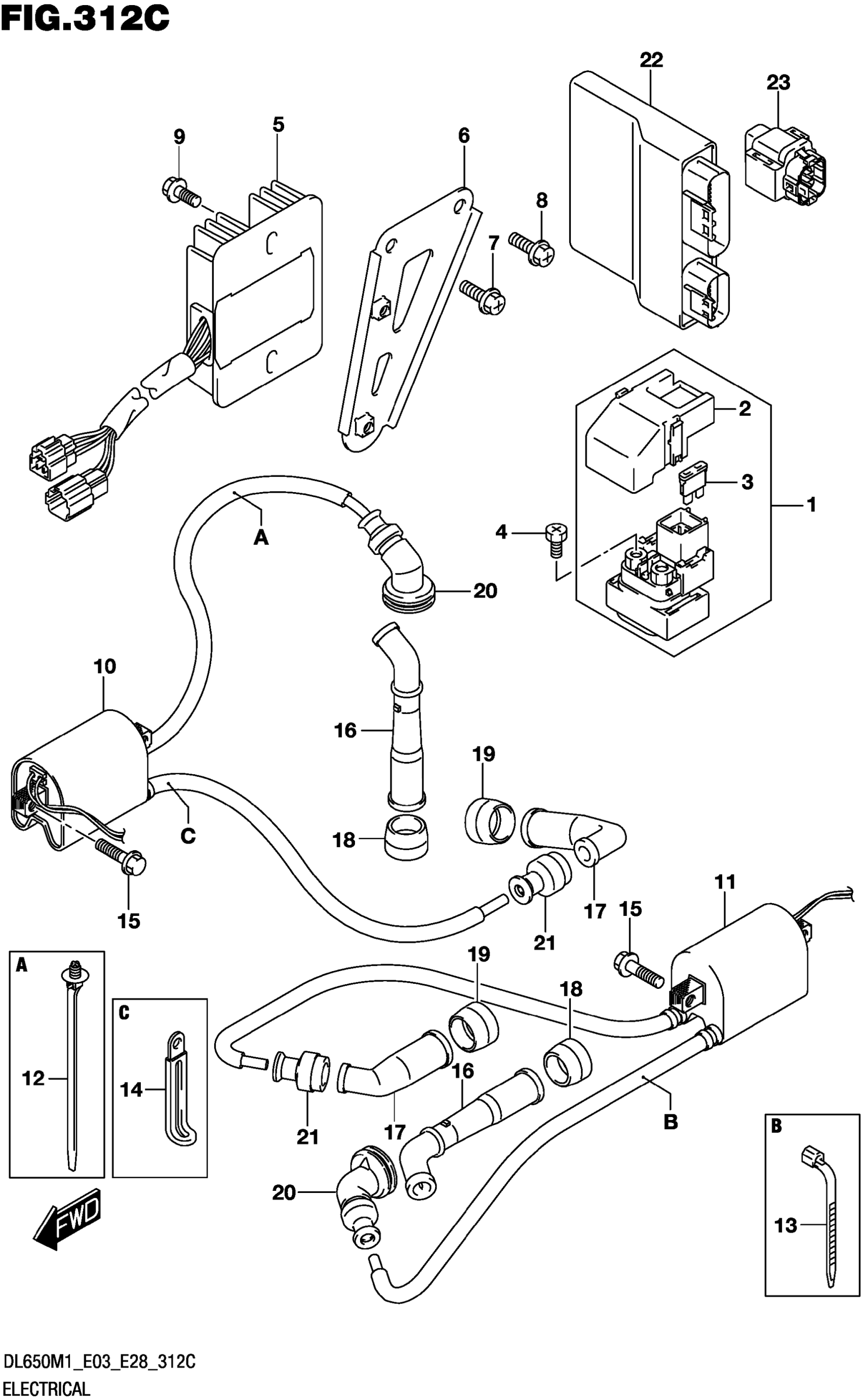

Suzuki DL650AM1 (2021) ELECTRICAL (E03,E28) Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR

31800-06G01-000

Unavailable

2

.COVER

31861-47E00-000

Unavailable

3

.FUSE (30A)

09481-30101-000

Unavailable

4

SCREW (6X8)

09128-06013-000

Unavailable

5

RECTIFIER ASSY

32800-47H00-000

Unavailable

6

BRACKET,RECT FTG

32830-11J00-000

Unavailable

7

SCREW

02162-0616A-000

Unavailable

8

SCREW

02162-0616A-000

Unavailable

9

SCREW

02162-0610A-000

Unavailable

10

COIL ASSY,IGNITION

33410-27G02-000

Unavailable

11

COIL ASSY,IGNITION

33420-27G03-000

Unavailable

12

CLAMP (L:154)

09407-17403-000

Unavailable

13

CLAMP (L:165)

09407-18402-000

Unavailable

14

CLAMP (L:45)

09404-06429-000

Unavailable

15

BOLT

01547-0625A-000

Unavailable

16

CAP ASSY,SPARK PLUG | FOR CENTER

33510-17G00-000

Unavailable

17

CAP ASSY,SPARK PLUG | FOR SIDE

33510-20E00-000

Unavailable

18

SEAL,SPARK PLUG | FOR CENTER

33541-23E10-000

Unavailable

19

SEAL,SPARK PLUG | FOR SIDE

33541-47D00-000

Unavailable

20

SEAL,HIGH TENSION CORD | FOR CENTER

33542-17G01-000

Unavailable

21

SEAL,HIGH TENSION CORD | FOR SIDE

33542-38B00-000

Unavailable

22

CONTROL UNIT,FI

32920-28K52-000

Unavailable

23

SENSOR ASSY,FUEL CUT

33960-27G00-000

Unavailable
