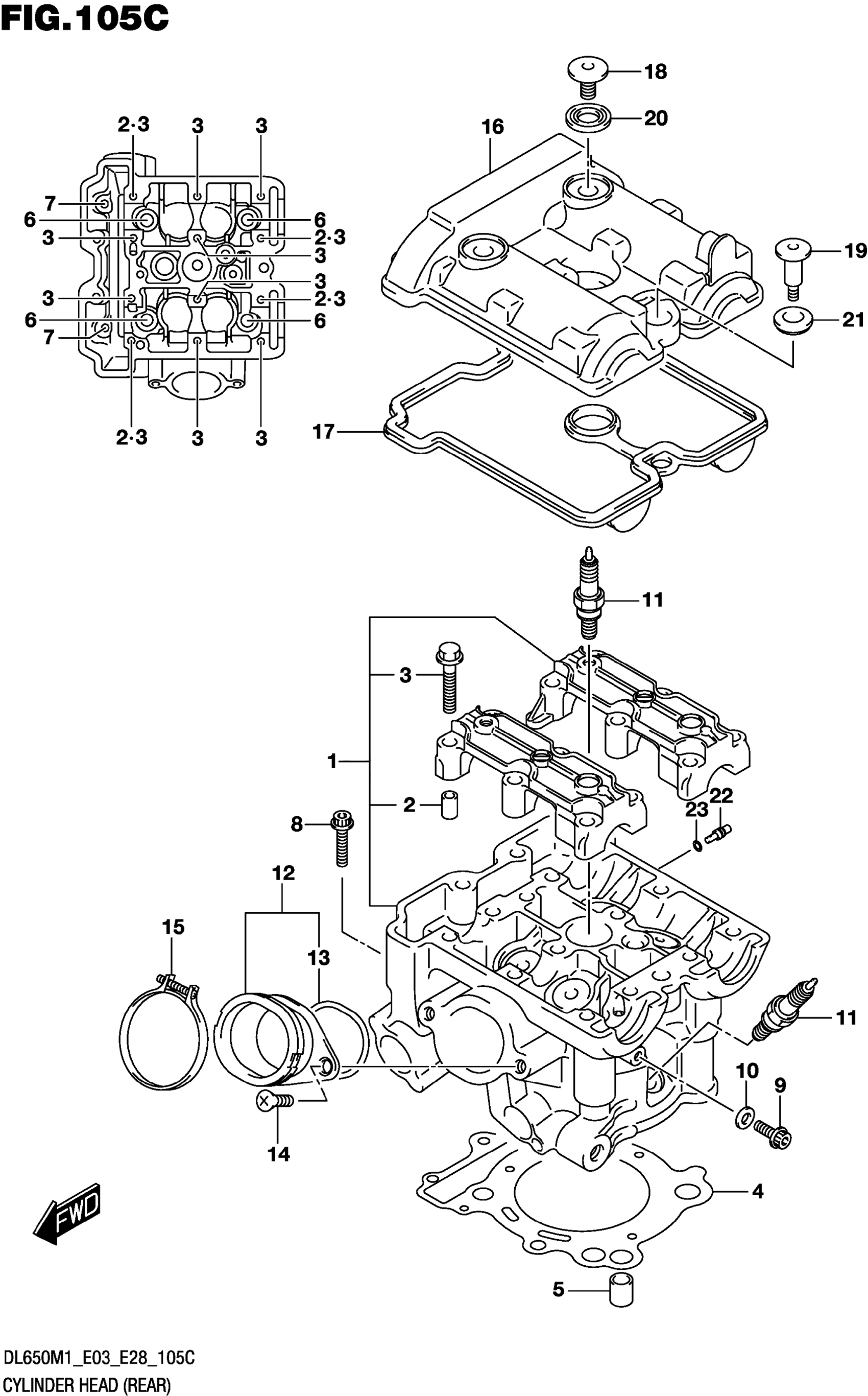

Suzuki DL650AM1 (2021) CYLINDER HEAD (REAR) Diagram

#

Description

Price

1

HEAD ASSY,CYLINDER REAR

11103-44H11-000

Unavailable

2

.PIN (8X11)

09206-08001-000

Unavailable

3

.BOLT (6X40)

09103-06266-000

Unavailable

4

.GASKET,CYLINDER HEAD

11141-20F00-000

Unavailable

5

PIN (10.4X13X18)

04211-13189-000

Unavailable

6

BOLT,CYL HEAD (L160)

11117-44H00-000

Unavailable

7

BOLT (6X70)

09103-06103-000

Unavailable

8

BOLT

07120-0640A-000

Unavailable

9

BOLT

01550-0612A-000

Unavailable

10

GASKET (5.8X13X1.2)

09168-06023-000

Unavailable

11

SPARK PLUG (MR8E-9)

09482-00646-000

Unavailable

12

PIPE ASSY,INTAKE REAR

13102-17G21-000

Unavailable

13

.O RING (D:2.4,ID:47X42)

09280-46007-000

Unavailable

14

SCREW

02122-0616B-000

Unavailable

15

CLAMP,INTAKE PIPE

13827-40H01-000

Unavailable

16

COVER,CYLINDER HEAD REAR

11172-19F20-000

Unavailable

17

.GASKET,CYLINDER HEAD COVER

11173-19F01-000

Unavailable

18

BOLT (7X17.5)

09106-07021-000

Unavailable

19

BOLT (L:19)

09106-07010-000

Unavailable

20

.WASHER,CYL HEAD COVER (L:5.5

11191-27E00-000

Unavailable

21

CUSHION,HEAD COVER BOLT

11192-13E00-000

Unavailable

22

JET (#80)

09493-80005-000

Unavailable

23

O-RING (D:1.2,ID:4)

09280-04004-000

Unavailable
