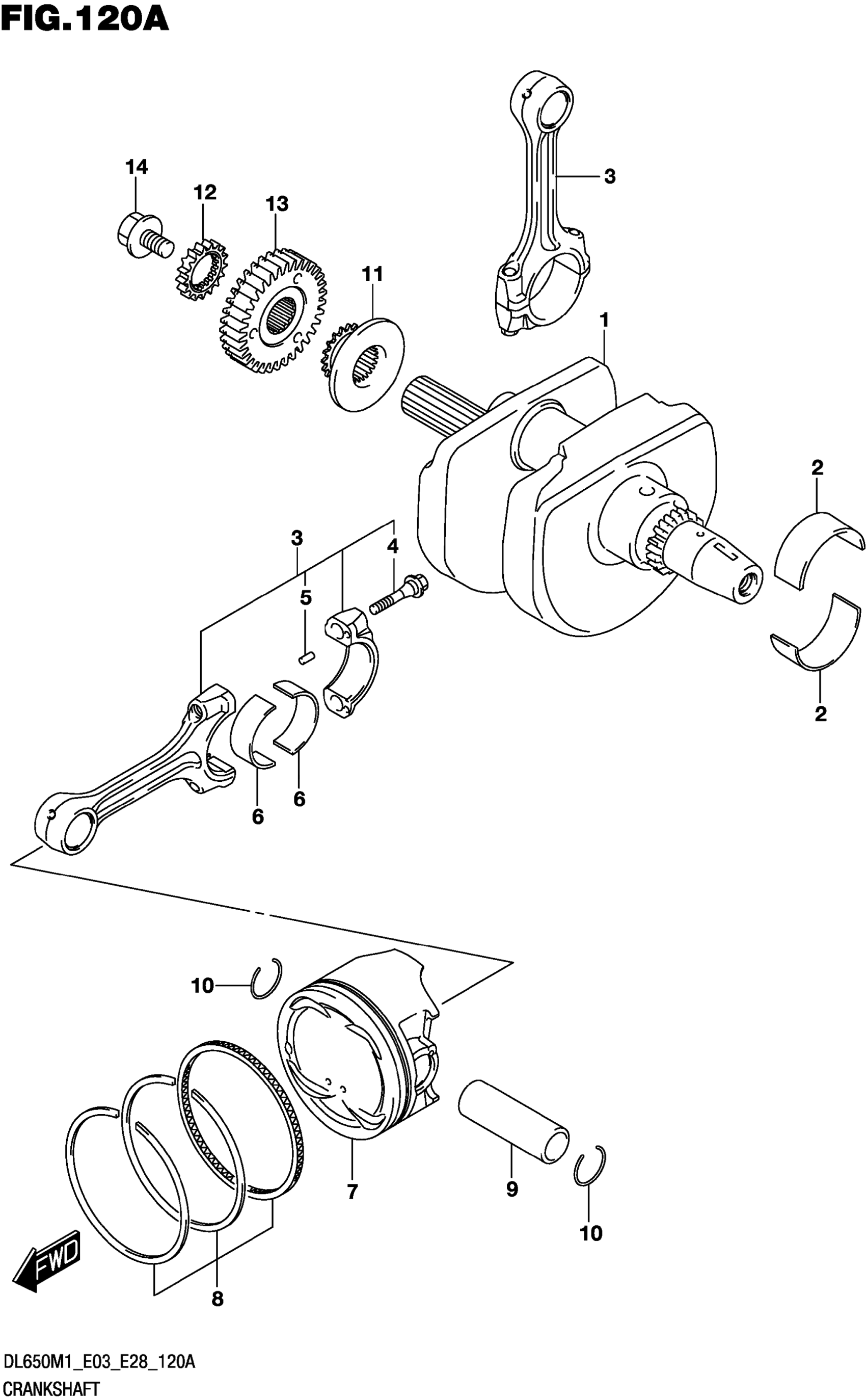

Suzuki DL650AM1 (2021) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT

12220-44H20-000

Unavailable

2-1

BEARING,CRANKSHAFT (GREEN) | GREEN

12229-44H10-0A0

$19.02

2-2

BEARING,CRANKSHAFT (BLACK) | BLACK

12229-44H10-0B0

$19.02

2-3

BEARING,CRANKSHAFT (BROWN) | BROWN

12229-44H10-0C0

Unavailable

3

CONNROD ASSY

12160-17G20-000

Unavailable

4

.BOLT,CONNECTING ROD

12163-24F10-000

Unavailable

5

.PIN

04221-04089-000

Unavailable

6-1

BEARING,CRANK PIN (GREEN) | GREEN

12164-46E10-0A0

$15.26

6-2

BEARING,CRANK PIN (BLACK) | BLACK

12164-46E10-0B0

$15.55

6-3

BEARING,CRANK PIN (BROWN) | BROWN

12164-46E10-0C0

$18.28

6-4

BEARING,CRANK PIN (YELLOW) | YELLOW

12164-46E10-0D0

$18.28

7

PISTON

12111-18K01-0F0

$110.42

8

RING SET,PISTON

12140-10L00-000

Unavailable

9

PIN,PISTON

12151-05A10-000

Unavailable

10

CIRCLIP

09381-20004-000

Unavailable

11

SPROCKET,CAM CHAIN DRIVE (NT: | 8)

12731-19F00-000

Unavailable

12

GEAR,WATER PUMP DRIVE (NT:17)

17451-17G00-000

Unavailable

13

GEAR ASSY,PRIMARY DRIVE (NT:3 | )

21100-44H00-000

Unavailable

14

BOLT (10X19)

09103-10338-000

Unavailable
