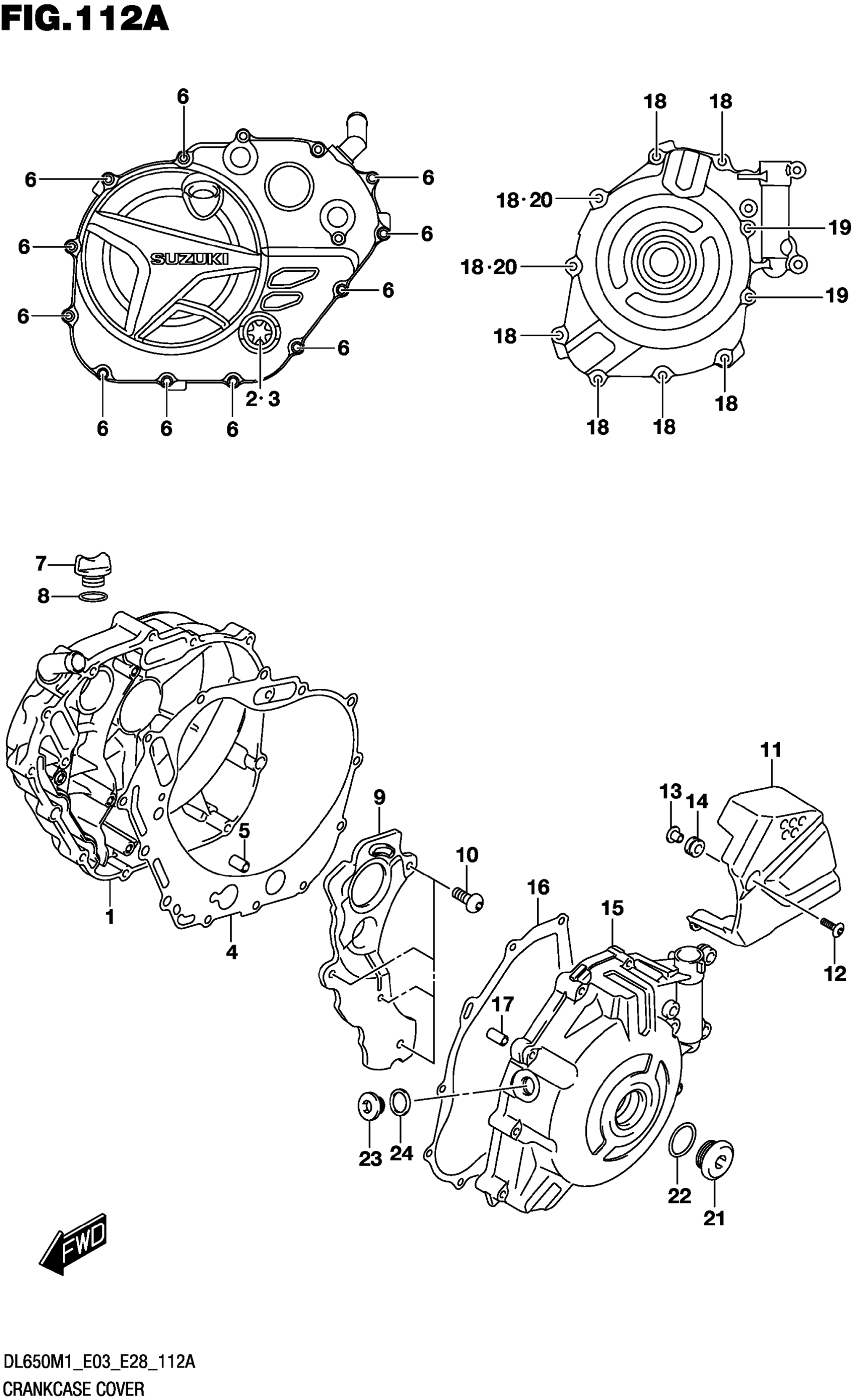

Suzuki DL650AM1 (2021) CRANKCASE COVER Diagram

#

Description

Price

1

COVER,CLUTCH

11340-18K10-000

Unavailable

2

.LENS,OIL LEVEL CHECK

11971-33210-000

Unavailable

3

.CIRCLIP

08331-4130A-000

Unavailable

4

.GASKET,CLUTCH COVER

11482-44H00-000

Unavailable

5

PIN (8.5X18X2.3)

04211-09149-000

Unavailable

6

BOLT,CLUTCH COVER (L:35)

09103-06530-000

Unavailable

7

PLUG,ENGINE OIL FILLER

11971-25D00-000

Unavailable

8

O-RING (D:3.1,ID:16.8)

09280-17003-000

Unavailable

9

SEPARATOR,OIL

11343-44H01-000

Unavailable

10

BOLT (6X12)

09106-06098-000

Unavailable

11

COVER,ENG SPROCKET

11361-28K00-000

Unavailable

12

SCREW (6X20)

09139-06028-000

Unavailable

13

WASHER (6.3X17X1.6)

09169-06062-000

Unavailable

14

CUSHION (9X18X9.5)

09320-09016-000

Unavailable

15

COVER,MAGNETO

11351-44H20-000

Unavailable

16

.GASKET,MAGNETO COVER

11483-19F00-000

Unavailable

17

PIN (8.5X18X2.3)

04211-09149-000

Unavailable

18

BOLT,CLUTCH COVER (L:35)

09103-06530-000

Unavailable

19

BOLT,MAGNETO COVER (6X65)

09103-06536-000

Unavailable

20

GASKET (5.8X13X1.2)

09168-06023-000

Unavailable

21

PLUG (26X9)

09259-26011-000

Unavailable

22

O-RING (D:3.1,ID:22.7)

09280-22008-000

Unavailable

23

PLUG (16X8)

09248-16012-000

Unavailable

24

GASKET (16X22X2)

09168-16002-000

Unavailable
