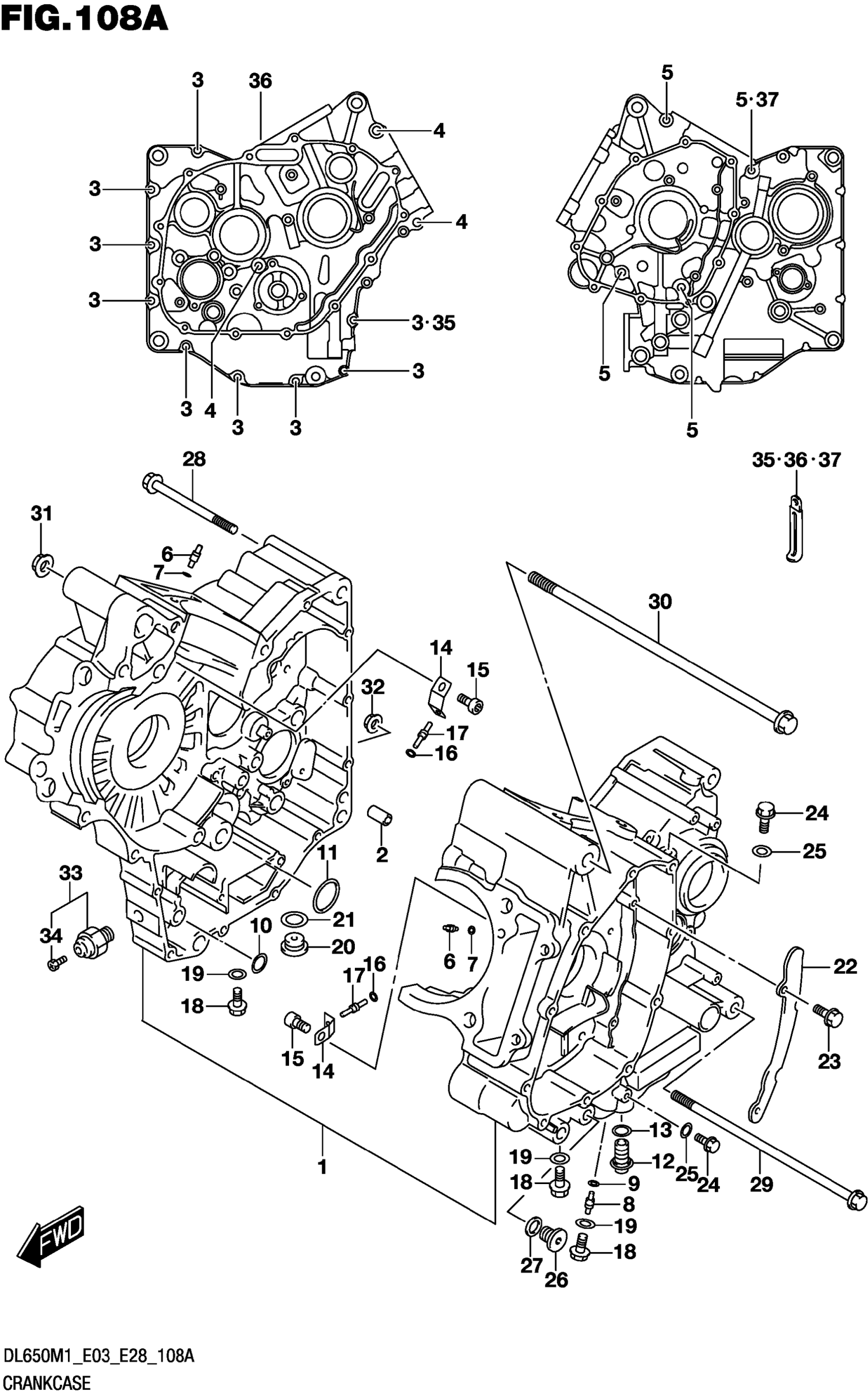

Suzuki DL650AM1 (2021) CRANKCASE Diagram

#

Description

Price

1

CRANKCASE SET

11301-27871-000

Unavailable

2

.PIN (8.4X11X20)

09206-11007-000

Unavailable

3

BOLT

01547-0650A-000

Unavailable

4

.BOLT

07120-0855A-000

Unavailable

5

.BOLT

07120-0880A-000

Unavailable

6

JET AIR (#14)

09493-28010-000

Unavailable

7

O-RING (D:1.2,ID:4)

09280-04004-000

Unavailable

8

JET,OIL GALY (#18)

09493-36004-000

Unavailable

9

O-RING (D:1.2,ID:4)

09280-04004-000

Unavailable

10

O-RING (D:1.9,ID:12.5)

09280-13007-000

Unavailable

11

O-RING (D:2.4,ID:15.8)

09280-15007-000

Unavailable

12

PLUG (12X20)

09247-12011-000

Unavailable

13

GASKET (12.1X16.2X3.7)

09168-12002-000

Unavailable

14

PLATE,PISTON COOLING JET

16438-19F00-000

Unavailable

15

BOLT (6X12)

09106-06075-000

Unavailable

16

JET (#130)

09493-26007-000

Unavailable

17

BOLT (8X12)

01550-0812A-000

Unavailable

18

GASKET (12.1X16.2X3.7)

09168-12002-000

Unavailable

19

GASKET (8.2X14X1)

09168-08016-000

Unavailable

20

PLUG (16X8)

09248-16012-000

Unavailable

21

GASKET (16X22X2)

09168-16002-000

Unavailable

22

PLATE,OIL SEPARATOR

11323-19F00-000

Unavailable

23

BOLT

01547-0612A-000

Unavailable

24

BOLT

01547-0610A-000

Unavailable

25

GASKET (5.8X13X1.2)

09168-06023-000

Unavailable

26

PLUG (12X10)

09247-12006-000

Unavailable

27

GASKET (12X17X1)

09168-12017-000

Unavailable

28

BOLT (10X225)

09103-10205-000

Unavailable

29

BOLT (10X275)

09103-10347-000

Unavailable

30

BOLT (12X310)

09103-12054-000

Unavailable

31

NUT

09159-12056-000

Unavailable

32

NUT

08319-3110A-000

Unavailable

33

SWITCH ASSY,OIL PRESSURE

37820-33D10-000

Unavailable

34

.BOLT,OIL PRESSURE SWITCH

37822-33D00-000

Unavailable

35

CLAMP (L:45)

09404-06429-000

Unavailable

36

CLAMP (L:80)

09404-06030-000

Unavailable

37

CLAMP (L:80)

09404-08422-000

Unavailable
