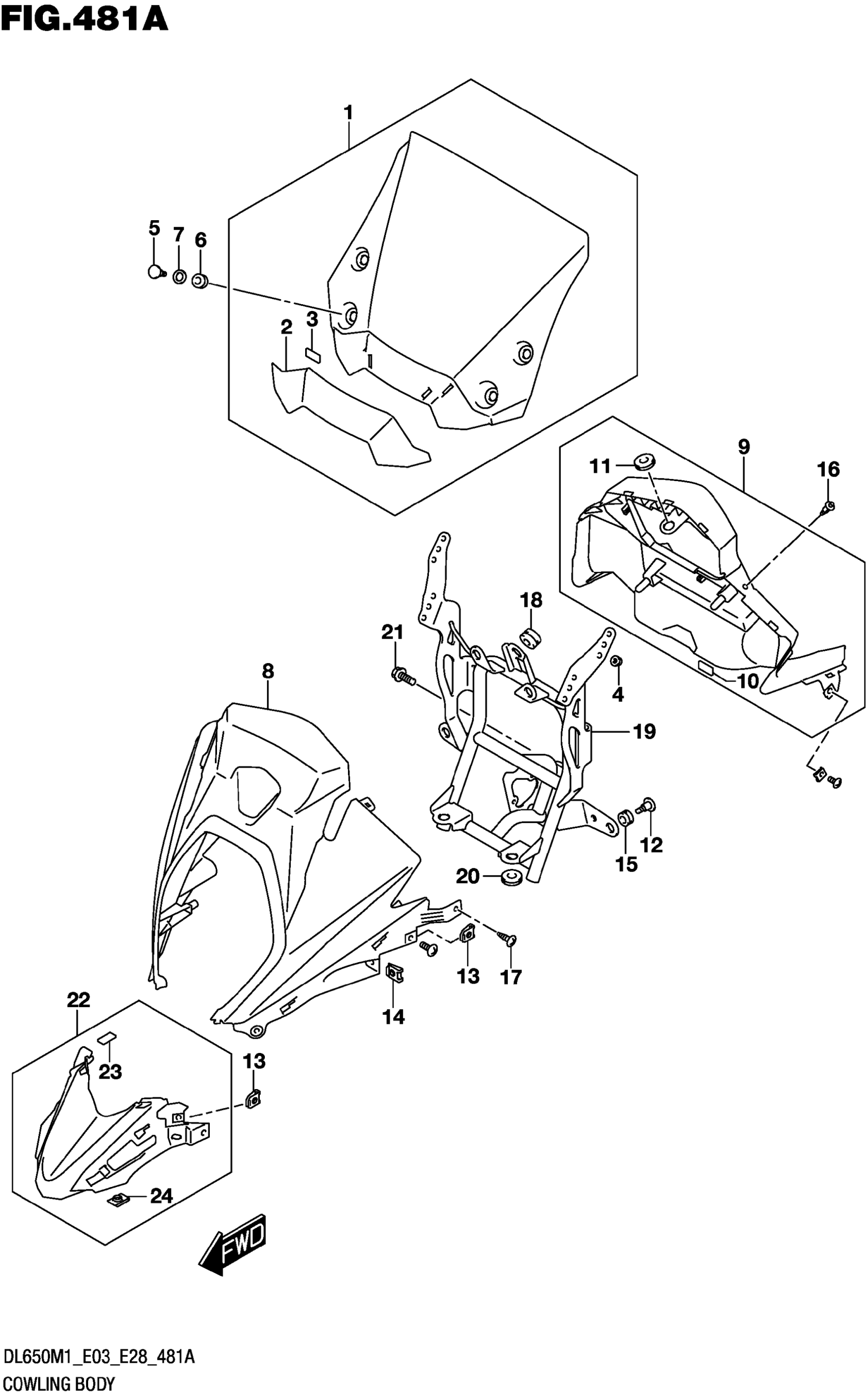

Suzuki DL650AM1 (2021) COWLING BODY Diagram

#

Description

Price

1

WINDSCREEN

48410-28K00-000

Unavailable

2

.COVER,WINDSCREEN

48412-28K00-000

Unavailable

3

.PAD (8X20X2)

73415-70A00-000

Unavailable

4

CAP,WINDSCREEN SCREW

48414-31J00-000

Unavailable

5

SCREW (6X20)

09139-06211-000

Unavailable

6

CUSHION (9X18X9.5)

09320-09016-000

Unavailable

7

WASHER

08322-0110B-000

Unavailable

8

COWLING,BODY

94411-28K00-000

Unavailable

9

PANEL,METER

94630-28K00-000

Unavailable

10

.PAD (8X20X2)

73415-70A00-000

Unavailable

11

.CUSHION (8X26X7)

09320-08514-000

Unavailable

12

SCREW (6X20)

09139-06126-000

Unavailable

13

NUT (M5)

09148-05038-000

Unavailable

14

NUT

09148-06020-000

Unavailable

15

CUSHION (9X18X9.5)

09320-09016-000

Unavailable

16

CLIP (5.9X20.5)

09409-06314-000

Unavailable

17

SCREW

03541-0512A-000

Unavailable

18

CUSHION,SPEEDOMETER

34189-08J01-000

Unavailable

19

BRACE,COWLING

94510-28K00-000

Unavailable

20

.CUSHION (8X26X7)

09320-08514-000

Unavailable

21

BOLT

01550-0820A-000

Unavailable

22

COWLING, BODY LOWER (BLACK)

94402-28K00-YKV

$84.72

23

.PAD (8X20X2)

73415-70A00-000

Unavailable

24

.NUT (M5)

09148-05052-000

Unavailable
