2019 Suzuki DL650AL9 Wiring Harness Diagram

← All diagrams

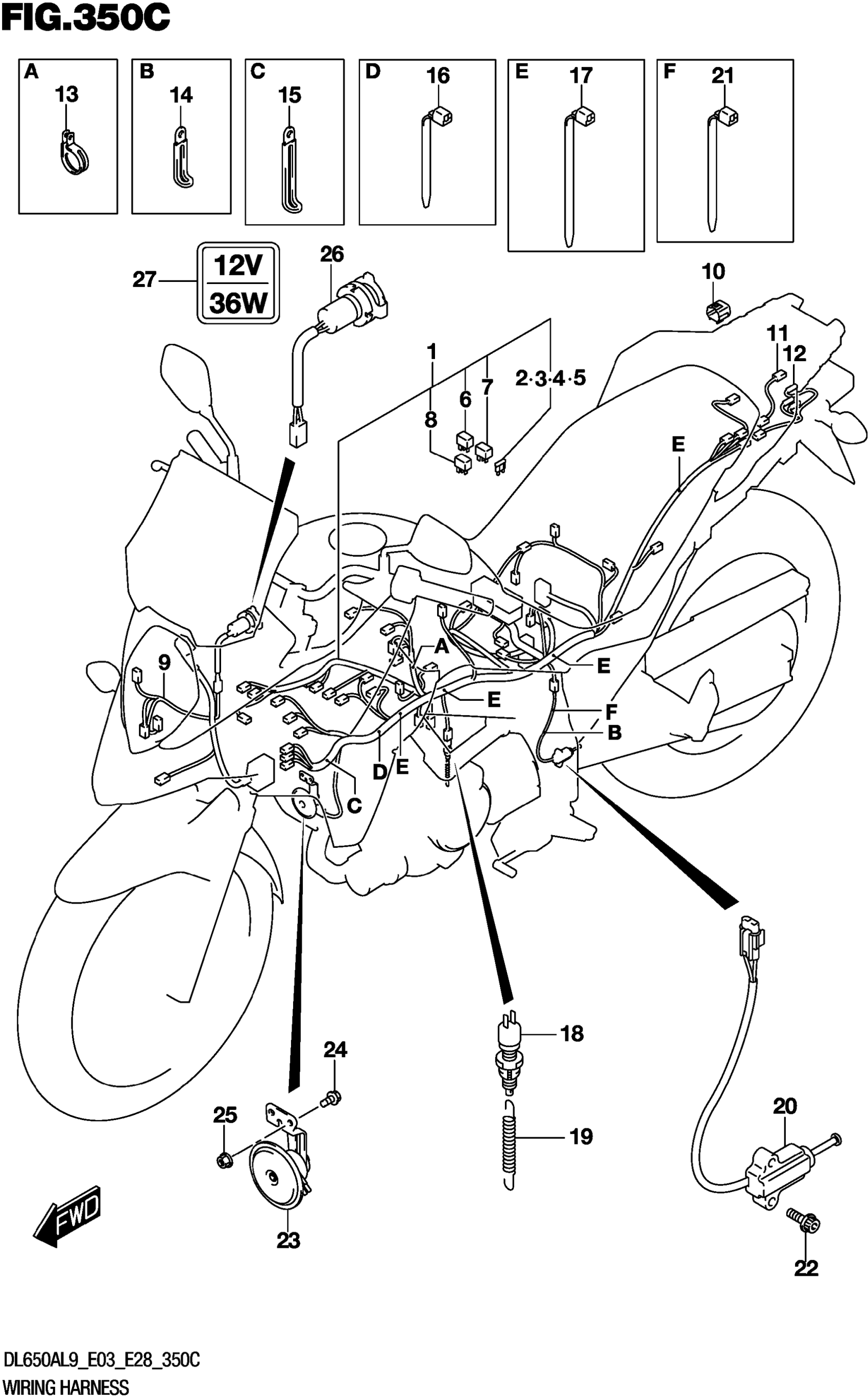

Find the part on the Wiring Harness diagram for your 2019 Suzuki DL650AL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki DL650AL9 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING NO.1

36610-28K20

1
Out of stock

2

.FUSE (3A)

09481-03501

1
Out of stock

3

.FUSE (10A)

09481-10504

2
Out of stock

4

.FUSE (15A)

09481-15504

5
Out of stock

5

.FUSE (25A)

09481-25504

1
Out of stock

6

.RELAY ASSY | FOR FUEL PUMP

38860-76F01

1
Out of stock

7

.RELAY ASSY | FOR FAN MOTOR

38860-76F01

1
Out of stock

8

.RELAY ASSY | FOR SIDE STAND

38860-76F01

1
Out of stock

9

HARNESS, WIRING NO.2

36620-28K00

1
Out of stock

10

CAP,TS This part replaces 36654-06J00.

36654-06J01

1
Out of stock

11

WIRE, REAR COMB LEAD

36853-28K00

1
Out of stock

12

WIRE, REAR TURNSIGNAL LEAD

36856-28K00

1
Out of stock

13

CLAMP, METER CABLE

09403-26401

1
Out of stock

14

CLAMP (L:45)

09404-06429

1
Out of stock

15

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

1
Out of stock

16

CLAMP (L:125)

09407-14403

2
Out of stock

17

CLAMP (L:165)

09407-18402

2
Out of stock

18

SWITCH ASSY, STOP LAMP

37740-31D00

1
Out of stock

19

SPRING

09443-06012

1
Out of stock

20

SWITCH ASSY,SIDE STAND This part replaces 37840-06G00.

37840-06G02

1
Out of stock

21

CLAMP (L:100)

09407-10404

1
Out of stock

22

BOLT

01550-0616A

2
Out of stock

23

HORN ASSY

38500-11J00

1
Out of stock

24

BOLT (6X16)

09118-06017

2
Out of stock

25

NUT (6X12)

08316-1006A

2
Out of stock

26

TERMINAL,POWER SOURCE

38850-31J00

1

$82.92

In stock

27

LABEL, MAX AMP

38852-28K00

1
Out of stock
← Wiring Harness Carrier →
