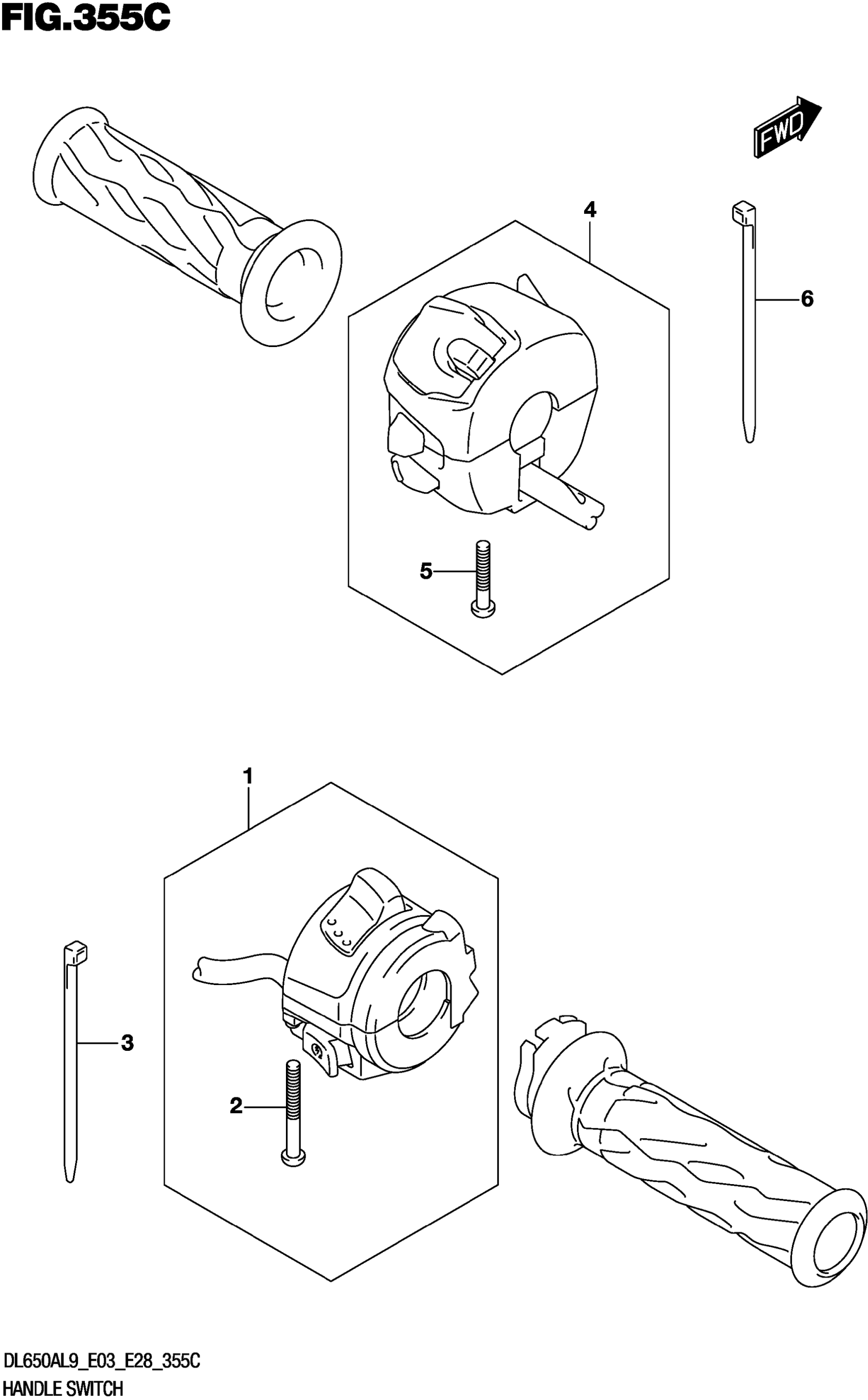

Suzuki DL650AL9 (2019) HANDLE SWITCH Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE RH

37200-28K10

$146.12

2

.SCREW

02112-0530B

$1.45

3

CLAMP (L:145)

09407-14407

$2.80

4

SWITCH ASSY, HANDLE LH This part replaces 37400-28K00.

37400-28K01

$192.82

5

.SCREW

02112-0525B

$1.86

6

CLAMP (L:145)

09407-14407

$2.80
