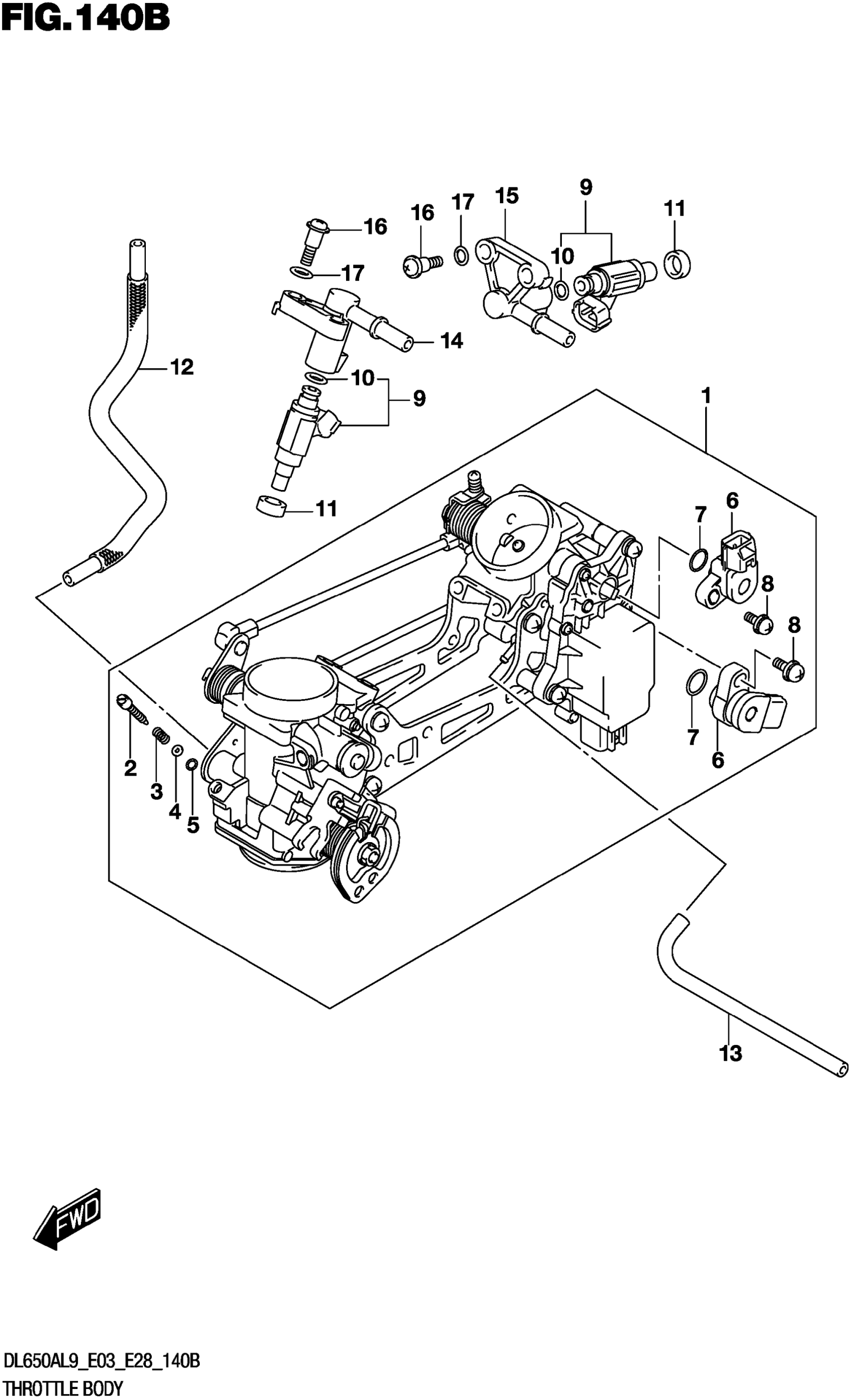

Suzuki DL650AL9 (2019) THROTTLE BODY (E03,E28) Diagram

#

Description
Price

1

BODY ASSY, THROTTLE

13405-28K00

$1,159.23

2

SCREW

13269-33E00

$11.10

3

SPRING,THROTTLE SCREW

13268-48700

$4.34

4

WASHER

13606-47A00

$3.28

5

O-RING This part replaces 13295-29900.

13295-29901

$4.34

6

.SENSOR

13580-27G21

$145.53

7

.O-RING This part replaces 13575-29G00.

13575-29G01

$3.15

8

.SCREW

13605-02F00

$3.71

9

INJECTOR ASSY

15710-11J00

$271.53

10

.O-RING

15717-58B00

$9.95

11

SEAL

15722-29G00

$10.93

12

HOSE

13683-28K00

$28.67

13

HOSE This part replaces 13683-44H10.

13683-44H11

$18.20

14

DELIVERY PIPE

15731-11J00

Unavailable

15

DELIVERY PIPE

15732-11J00

Unavailable

16

SCREW

13601-11J00

$4.79

17

PACKING This part replaces 13602-29G00.

13602-29G01

$2.43
