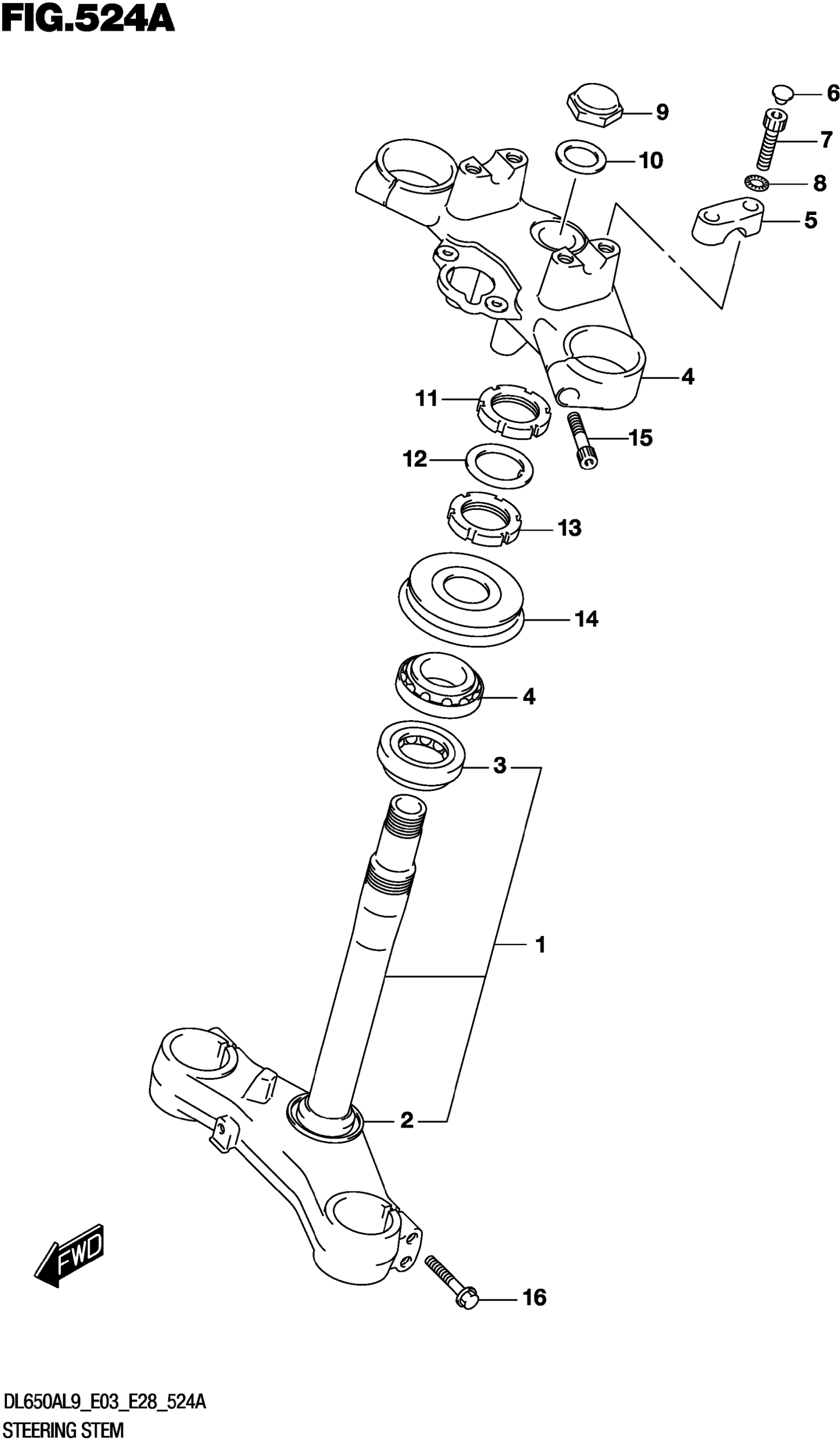

Suzuki DL650AL9 (2019) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING

51410-28K00

$687.83

2

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$9.44

2

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$9.44

3

.BEARING (30X55X17)

09267-30010

$48.11

4

BRACKET, UPR

51311-11J00-291

$325.05

5

HOLDER, HANDLE UPR

56211-06G40-291

$46.10

6

CAP (OD:10.5)

09250-06015

$2.76

7

BOLT This part replaces 51321-10F00.

07130-08307

$3.89

8

WASHER

09164-08015

$3.21

9

NUT

51353-27G00

$33.80

10

WASHER

51354-06G00

$11.78

11

NUT,STEERING STEM

51631-33E00

$23.64

12

WASHER,STEERING STEM

51641-33E00

$6.20

13

SEAL, STEERING UPR DUST

51643-33E00

$16.01

14

.BEARING (30X55X17)

09267-30010

$48.11

15

BOLT

51166-38B40

$6.87

16

BOLT,HOLDER AXLE (8X40)

51328-27E30

$4.37
