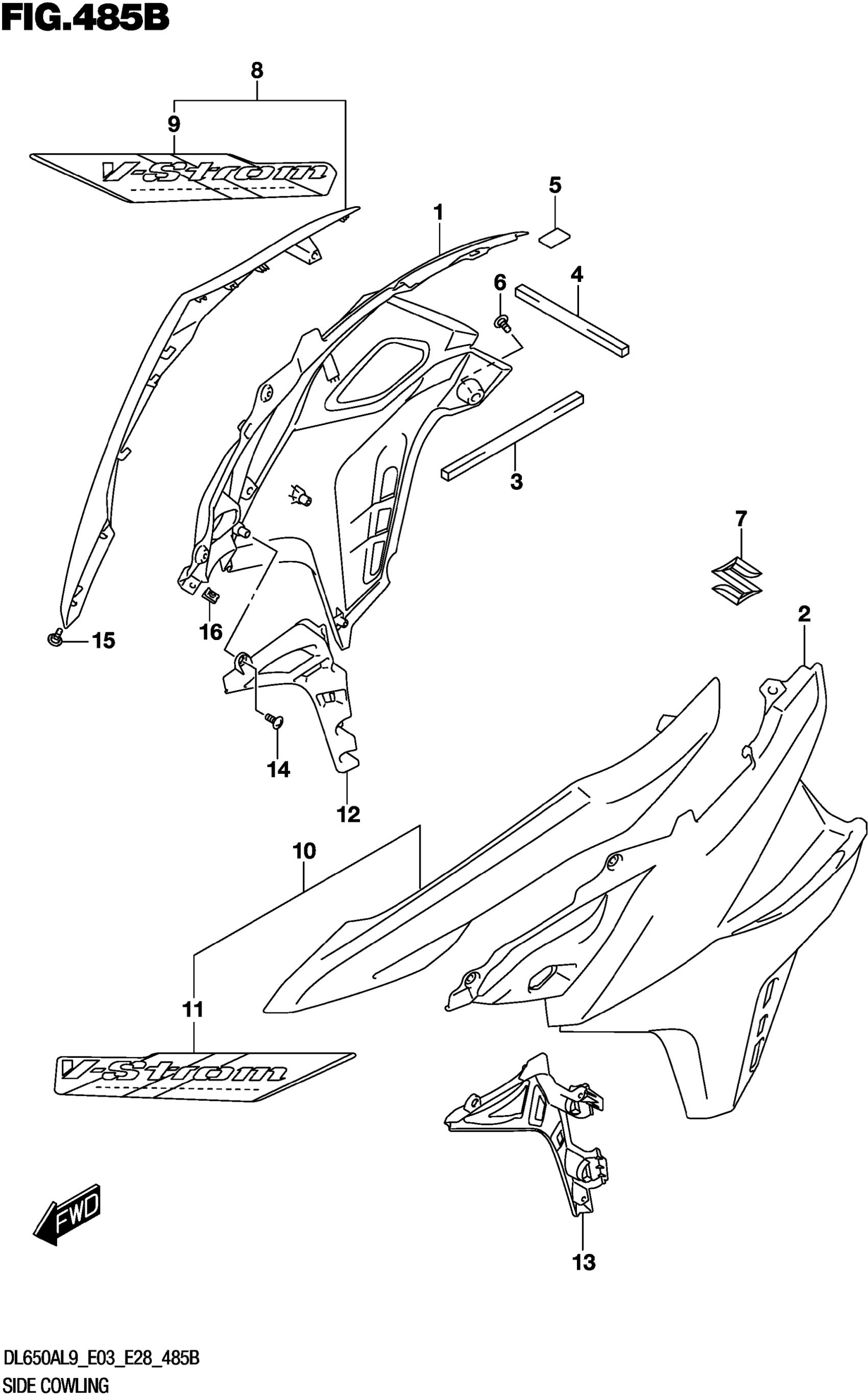

Suzuki DL650AL9 (2019) SIDE COWLING (DL650XA) Diagram

#

Description
Price

1

COVER, SIDE COWL RH

94413-28K00

$106.28

2

COVER, SIDE COWL LH

94414-28K00

$111.40

3

CUSHION (5X120X6)

44176-31J00

$2.75

4

CUSHION

44178-31J00

$2.87

5

CUSHION (25X35X4) | CUT AS REQUIRED

44612-13600

$4.65

6

SCREW (6X12)

47913-31J00

$2.42

7

EMBLEM, S

68111-47HA0

$40.44

8-1

COVER,SIDE COWL RH (BLACK) | FOR YU1

94420-28K30-YVB

Unavailable

8-2

COVER,SIDE COWL RH (WHITE) | FOR YWW

94420-28K30-YWW

$112.64

8-3

COVER,SIDE COWL RH (RED) | FOR YYG

94420-28K30-YYG

$132.52

9-1

.TAPE,COVER SIDE RH | FOR YU1

68275-28K30-BT1

Unavailable

9-2

.TAPE,COVER SIDE RH | FOR YWW

68275-28K30-AJP

Unavailable

9-2

.TAPE,COVER SIDE RH

68275-28K30-AJP

Unavailable

9-3

.TAPE,COVER SIDE RH | FOR YYG

68275-28K30-AV4

$36.22

9-3

.TAPE,COVER SIDE RH

68275-28K30-AV4

$36.22

10-1

COVER,SIDE COWL LH (BLACK) | FOR YU1

94430-28K30-YVB

$135.02

10-2

COVER,SIDE COWL LH (WHITE) | FOR YWW

94430-28K30-YWW

$135.02

10-3

COVER,SIDE COWL LH (RED) | FOR YYG

94430-28K30-YYG

$135.02

11-1

.TAPE,COVER SIDE LH | FOR YU1

68285-28K30-BT1

Unavailable

11-2

(BLUE/WHITE) | FOR YWW

68285-28K30-AJP

Unavailable

11-2

(BLUE/WHITE)

68285-28K30-AJP

Unavailable

11-3

(RED/BLACK) | FOR YYG

68285-28K30-AV4

Unavailable

11-3

(RED/BLACK)

68285-28K30-AV4

Unavailable

12

COVER, SIDE COWL INNER RH

94461-28K00

$14.45

13

COVER, SIDE COWL INNER LH

94462-28K00

$14.18

14

SCREW

03541-0512A

$1.49

15

SCREW (5X13)

09139-05091

$2.03

16

NUT (M5)

09148-05052

$3.37
