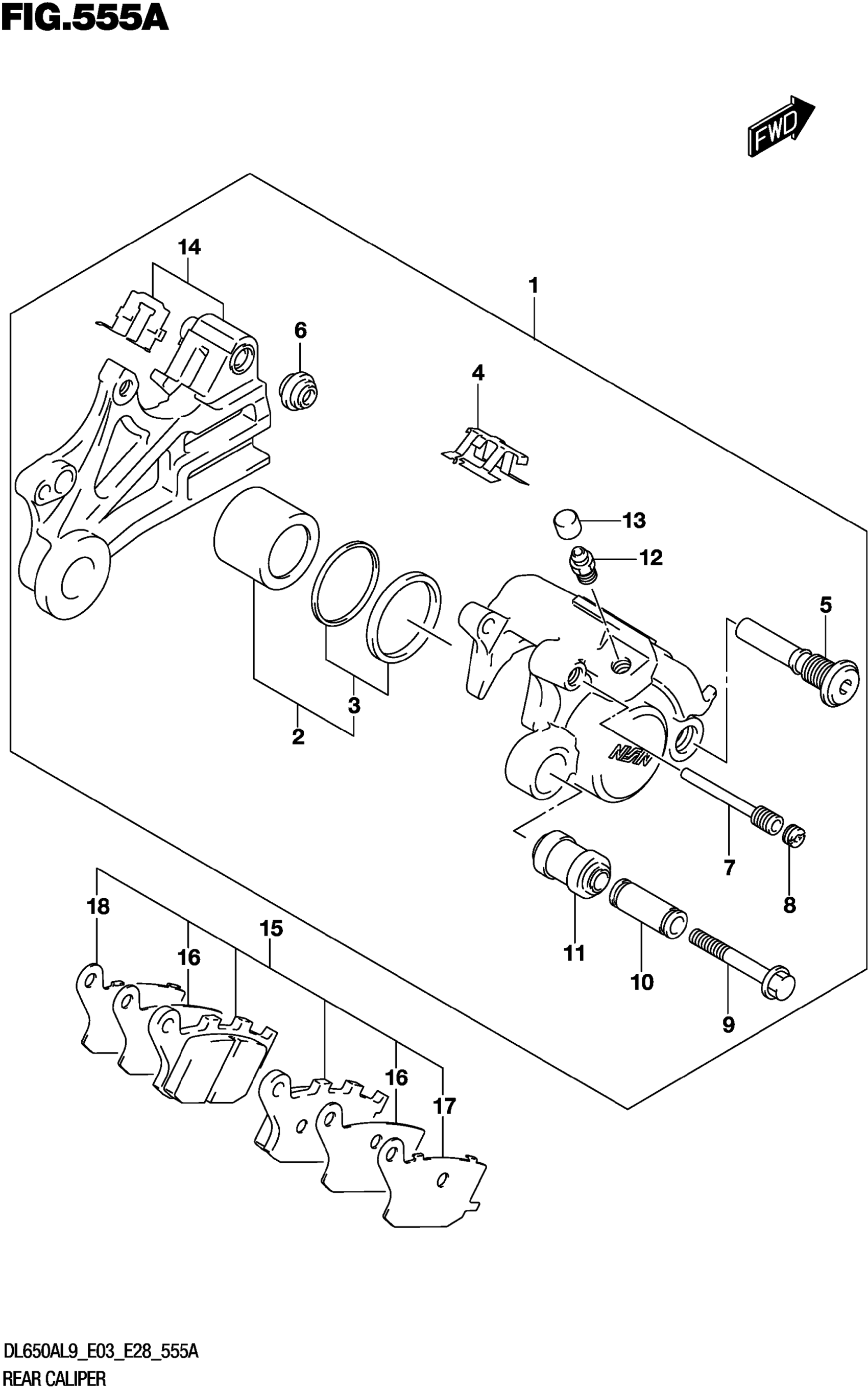

Suzuki DL650AL9 (2019) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, RR

69100-28K00-999

$364.38

2

.PISTON SET

69100-04810

$62.68

3

..SEAL SET,PISTON

69100-04820

$8.64

4

.SPRING,PAD

69115-06G00

$13.29

5

.PIN,BOLT

59305-36E00

$17.91

6

.BOOT

59303-14500

$5.29

7

.PIN,PAD

69141-40F00

$29.01

8

.PLUG,PIN

59146-21E10

$5.88

9

.BOLT

69182-04F00

$8.93

10

.SLEEVE

69185-04F00

$20.88

11

.BOOT,SLEEVE

69186-04F00

$13.01

12

.BLEEDER

59121-01A00

$8.35

13

.CAP,BLEEDER

59122-46H00

$4.36

14

.BRACKET

69150-28K00

$125.62

15

PAD & RETAINER SET

69100-06830

$57.82

16

.INSULATOR

69132-06G00

$23.48

17

.RETAINER

69133-06G00

$17.78

18

.RETAINER

69134-06G00

$17.43
