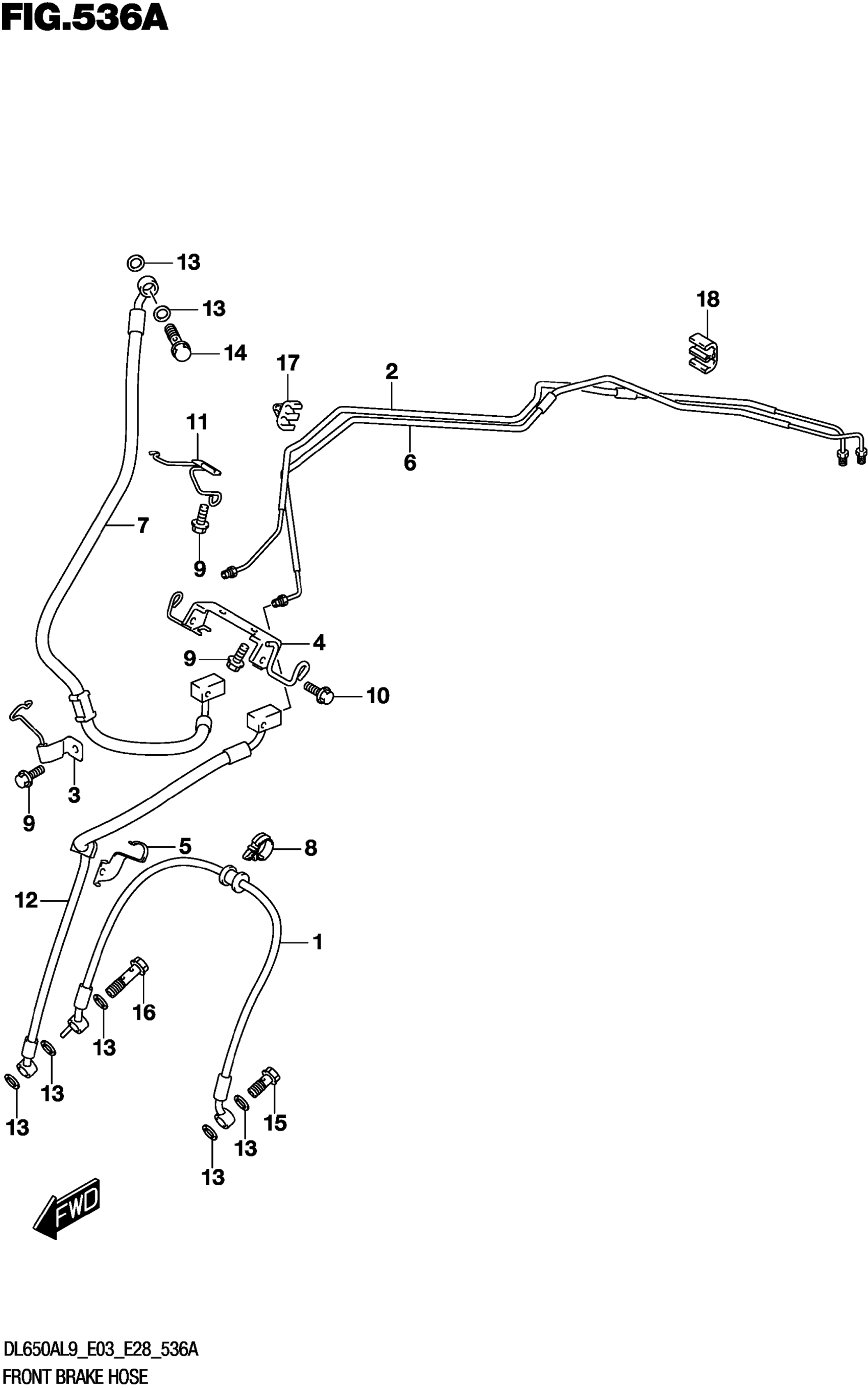

Suzuki DL650AL9 (2019) FRONT BRAKE HOSE Diagram

#

Description
Price

1

HOSE, FR BRAKE NO.2

59240-11J00

$136.18

2

PIPE, BK JOINT RH TO HU

59250-28K00

$29.88

3

CLAMP, FR BRAKE HOSE

59260-06G10

$22.08

4

CLAMP, FR BRAKE HOSE NO.2

59260-11J00

Unavailable

5

CLAMP, FR BRAKE HOSE RH

59268-11J00

Unavailable

6

PIPE, HU TO BK JOINT LH

59450-28K00

Unavailable

7

HOSE, FR BRAKE NO.1 This part replaces 59480-11J00.

59480-11J01

$113.97

8

CLAMP

09403-16412

$3.08

9

BOLT

01547-0612A

$2.01

10

BOLT

01547-0616A

$2.01

11

GUIDE, FR BRAKE HOSE

59540-11J00

Unavailable

12

HOSE, FR BRAKE NO.3 This part replaces 59560-11J00.

59560-11J01

$106.47

13

WASHER (10X15X1.5)

09161-10009

$1.83

14

UNION (10X1.25X22)

09360-10062

$5.81

15

UNION (10X1.25X22)

09360-10062

$5.81

16

UNION (10X1.25X36)

09360-10064

$5.81

17

CLAMP

09403-07334

Unavailable

18

CLAMP

09403-06324

Unavailable
