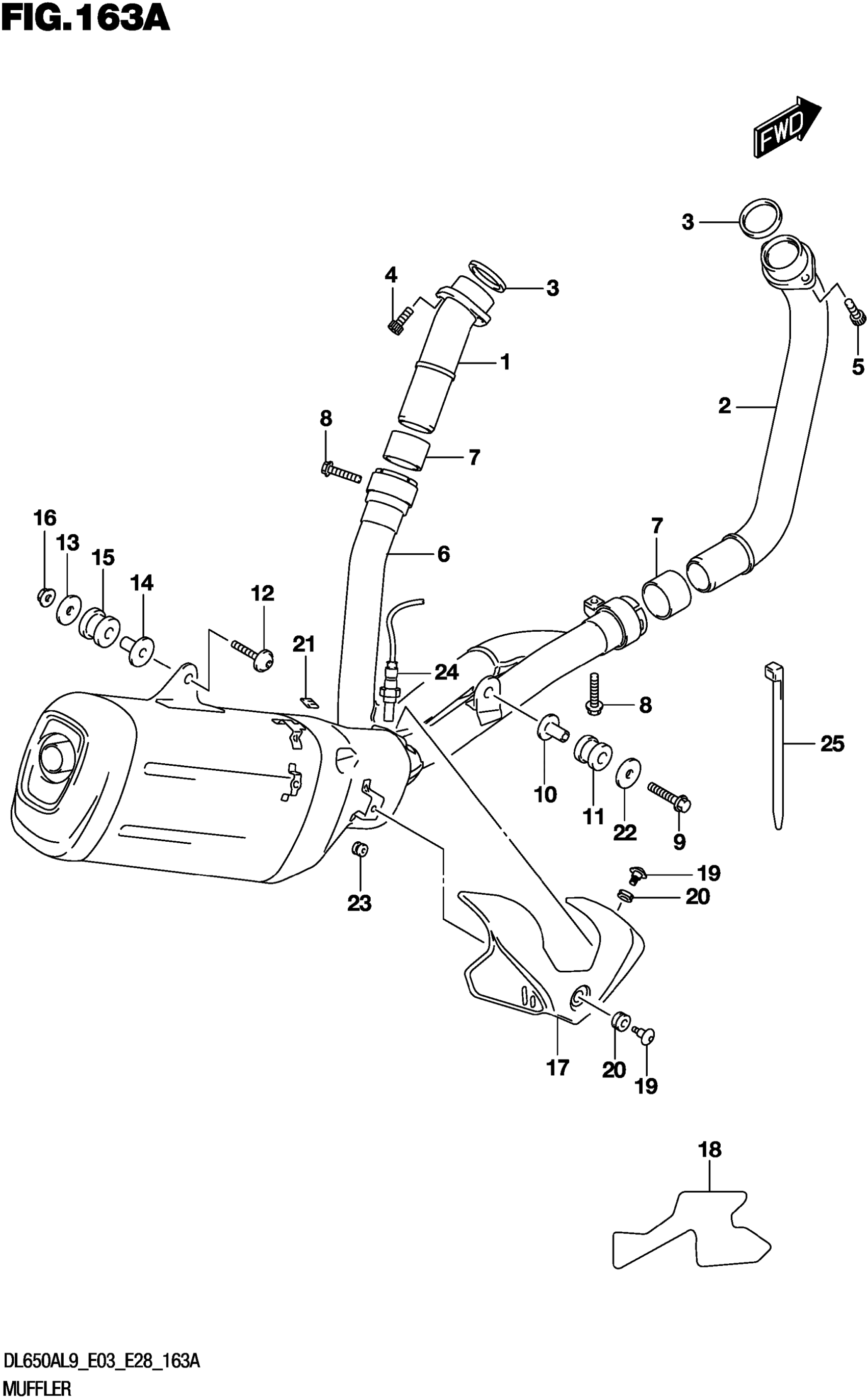

Suzuki DL650AL9 (2019) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST RR

14150-27G10

Unavailable

2

PIPE, EXHAUST FR

14160-17G10

$232.50

3

.GASKET,EXHAUST PIPE

14181-22D01

$10.11

4

BOLT | REAR

07130-0825A

$3.04

5

BOLT (8X25) | FRONT

09106-08178

$3.24

6

MUFFLER This part replaces 14305-28K01-H01.

14305-28K02-H01

$1,626.22

7

CONNECTOR,EXHAUST

14771-32E10

$26.20

8

BOLT (8X35)

09103-08365

$3.91

9

BOLT

01550-0840A

$3.05

10

SPACER (8.6X12X24.2)

09180-08152

$5.83

11

CUSHION (12X30X24)

09320-12048

$5.11

12

BOLT (8X45)

09106-08164

$6.38

13

WASHER (8.5X33X1.5)

09160-08146

$2.60

14

SPACER (8.6X12X25.5)

09180-08156

$6.70

15

CUSHION

09320-12049

$10.68

16

NUT

08316-1008A

$2.45

17

COVER, MUF

14780-28K00

$157.47

18

SHIELD, MUF COVER RR

14784-28K00

$8.48

19

SCREW (6X12)

09139-06124

$4.52

20

CUSHION (8.4X18X6)

09320-08066

$8.24

21

GROMMET

14795-10FA0

$5.58

22

WASHER (8.5X28X1.5)

09160-08135

$2.35

23

CUSHION

09320-04011

$6.20

24

SENSOR,OXYGEN

18213-17K00

$297.73

25

CLAMP (L:145)

09407-14407

$3.57
