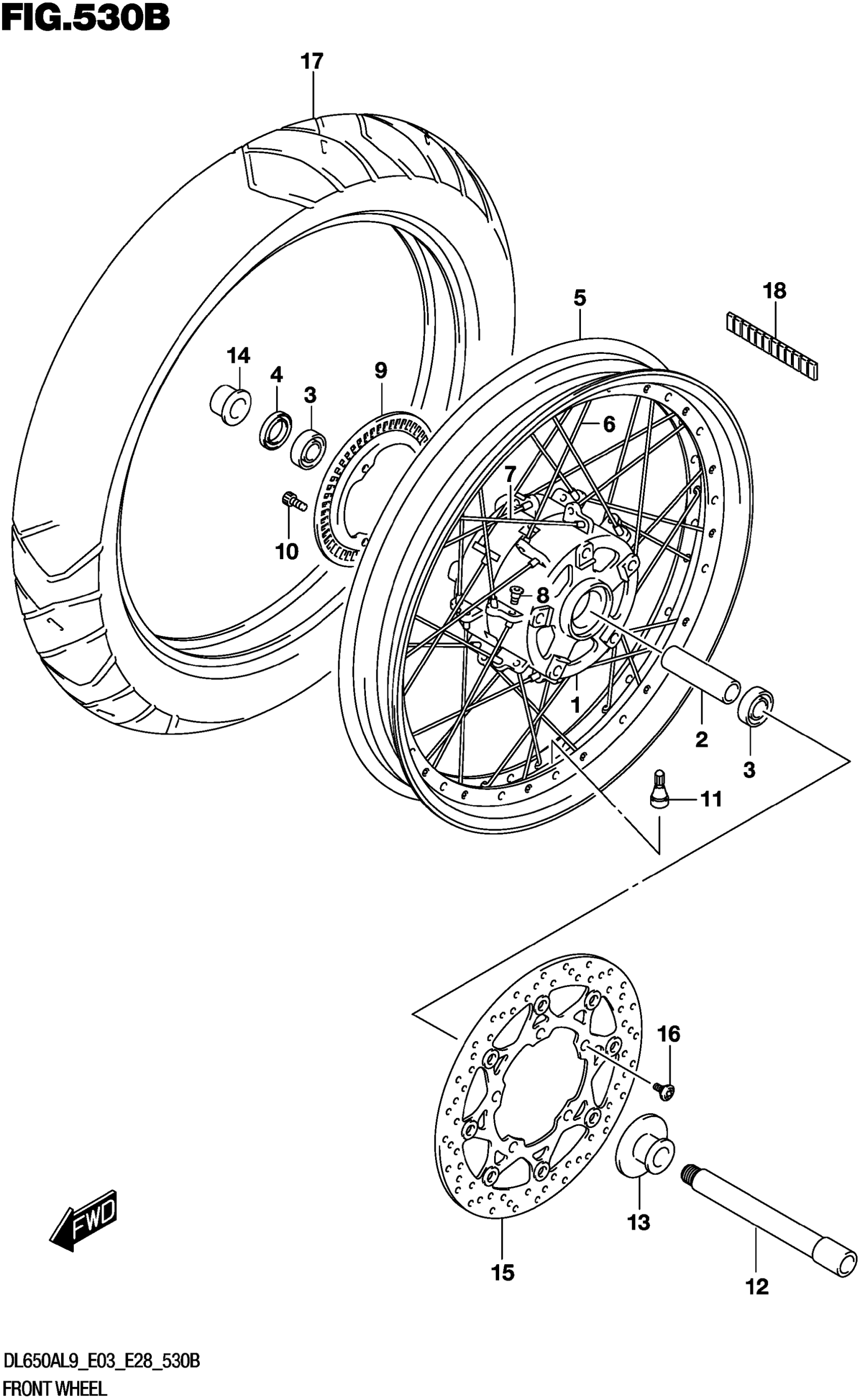

Suzuki DL650AL9 (2019) FRONT WHEEL (DL650XA) Diagram

#

Description
Price

1

HUB, FRONT

54111-11J00

Unavailable

2

SPACER (17.5X25X88)

09180-17067

$23.05

3

BEARING This part replaces 08133-62037.

08133-6203B

$17.61

4

SEAL, FRONT HUB BRG DUST

54841-28K00

$5.98

5-1

RIM, FRONT WHEEL (19M/CXMT2.50) | BLACK

55311-11J00

$741.43

5-2

RIM, FR WHEEL (19M/CXMT2.50) | GOLD

55311-11J10

$769.60

5-3

RIM, FR WHEEL (19M/CXMT2.50) | BLUE

55311-11J20

$896.63

6

SPOKE, FRONT WHEEL INNER This part replaces 55321-11J00.

55321-11J01

$6.60

7

SPOKE, FRONT WHEEL OUTER This part replaces 55322-11J00.

55322-11J01

$5.62

8

NIPPLE, WHEEL

55326-11J00

$5.15

9

RING, SPEED SENSOR (50T)

54162-28K00

$57.53

10

BOLT

07130-0512A

$2.19

11

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

12

AXLE, FR

54711-08F10

$108.15

13

SPACER, FR AXLE LH

54750-31F00

$25.62

14

SPACER, FR AXLE RH

54751-10G01

$17.90

15

DISC,FR BRAKE

59210-44G11

$415.82

16

BOLT (8X21)

09106-08160

$3.57

17

TIRE, FRONT (BATTLAX

55110-28K00

$312.68

17

TIRE, FRONT (BATTLAX

55110-28K00

$312.68

18

WEIGHT,WHEEL BALANCE (5GRAM)

55411-11J00

$5.38
