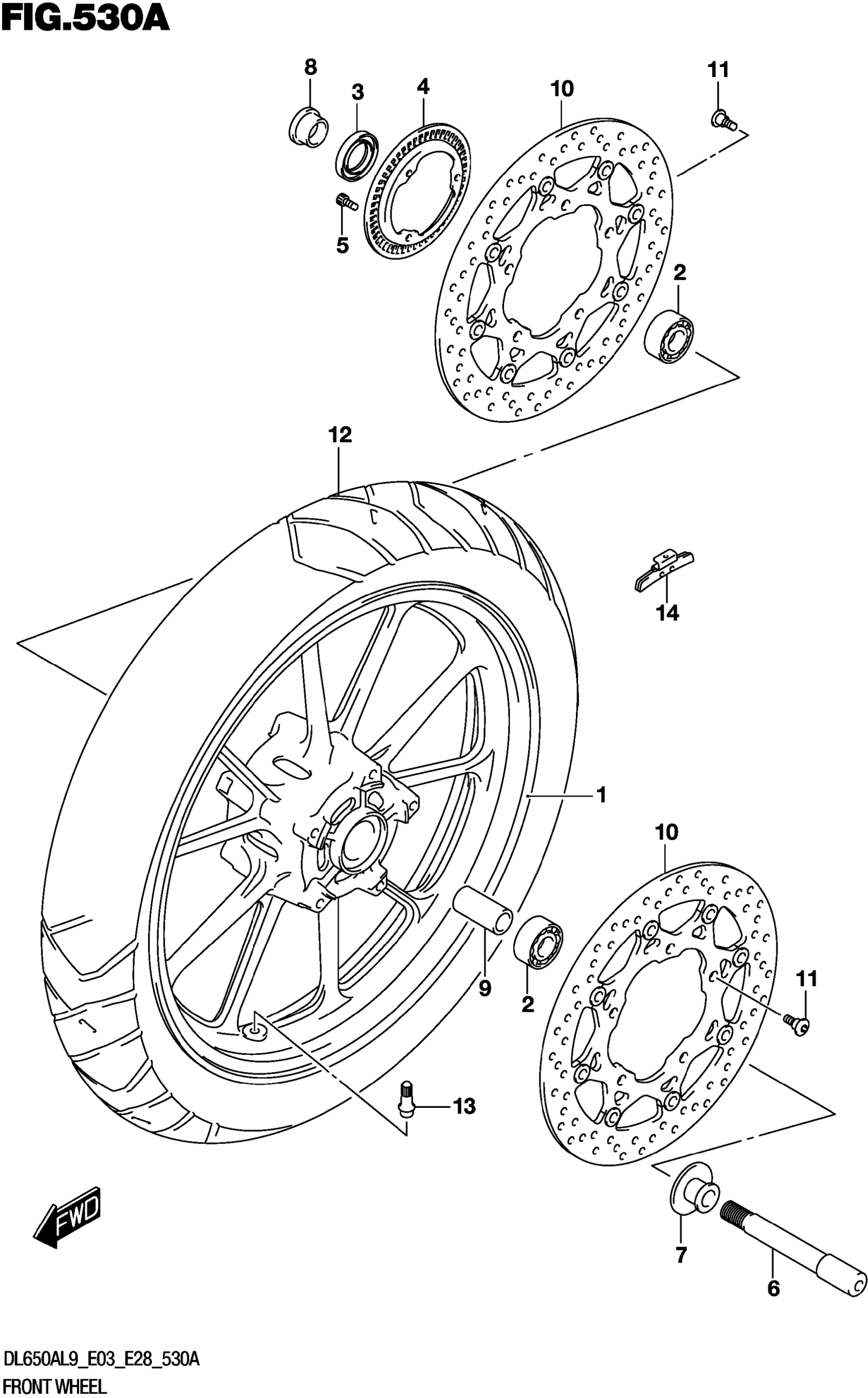

Suzuki DL650AL9 (2019) FRONT WHEEL (DL650A) Diagram

#

Description
Price

1

WHEEL, FRONT (19M/CXMT2.50)

54111-28K00-019

$788.92

1

WHEEL, FRONT (19M/CXMT2.50)

54111-28K00-019

$788.92

2

BEARING This part replaces 08133-62037.

08133-6203B

$17.61

3

SEAL, FRONT HUB BRG DUST

54841-28K00

$5.98

4

RING, SPEED SENSOR (50T)

54162-28K00

$57.53

5

BOLT

07130-0512A

$2.19

6

AXLE, FR

54711-08F10

$108.15

7

SPACER, FR AXLE LH

54750-31F00

$25.62

8

SPACER, FR AXLE RH

54751-10G01

$17.90

9

SPACER (17.5X25X88)

09180-17067

$23.05

10

DISC,FR BRAKE

59210-44G11

$415.82

11

BOLT (8X21)

09106-08160

$3.57

12

TIRE, FRONT (BATTLAX

55110-28K00

$312.68

12

TIRE, FRONT (BATTLAX

55110-28K00

$312.68

13

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

14-1

BALANCER,WHEEL (10G)

55411-22H00

$8.60

14-2

BALANCER,WHEEL (20G)

55412-22H00

$10.07

14-3

BALANCER,WHEEL (30G)

55413-22H00

$11.47
