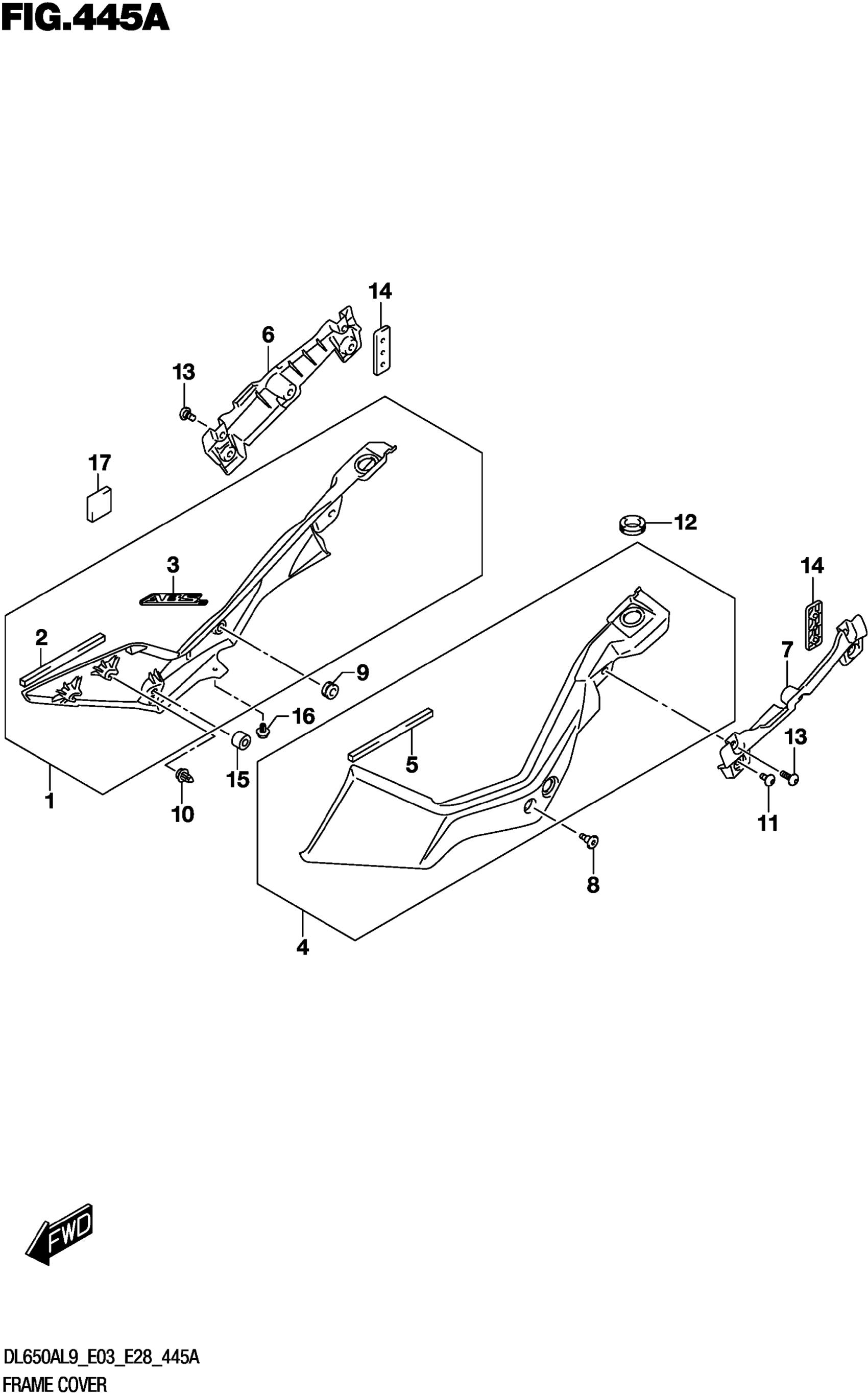

Suzuki DL650AL9 (2019) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH This part replaces 47110-28K00-GWM.

47110-28K01-GWM

$139.62

2

.CUSHION, FRAME COVER FR FR

47121-28K00

Unavailable

3

.EMBLEM, ABS

68131-28K00-GWM

Unavailable

4

COVER, FRAME LH

47210-28K00

$93.42

5

.CUSHION, FRAME COVER FR FR

47121-28K00

Unavailable

6

COVER, FRAME REAR RH

47411-31J10

$15.35

7

COVER, FRAME REAR LH

47511-31J10

$18.05

8

SCREW (6X20)

09139-06211

$3.44

9

CUSHION (9X18X9.5)

09320-09016

$1.97

10

CLIP

09409-10313

$1.98

11

SCREW (6X12)

47913-31J00

$2.42

12

CUSHION (20X32X9) This part replaces 09320-20010.

09320-20011

$2.69

13

SCREW (6X16)

09139-06120

$2.83

14

SPACER,FRAME COVER

47510-28K00

$17.72

15

CUSHION

09321-10001

$2.61

16

CLIP

09409-06328

$3.23

17

CUSHION, FRAME COVER

47123-28K00

Unavailable
