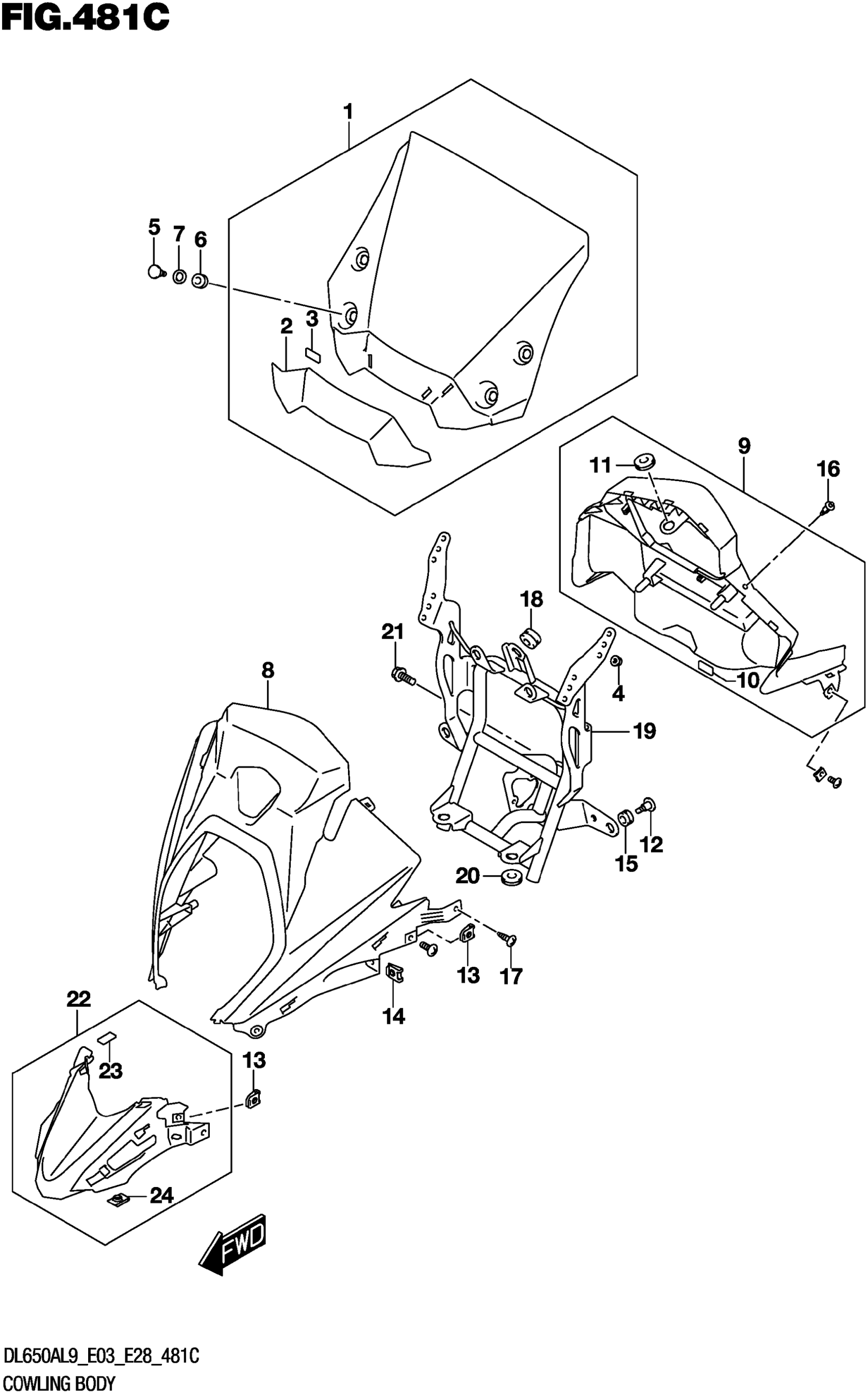

Suzuki DL650AL9 (2019) COWLING BODY (DL650XA) Diagram

#

Description
Price

1

WINDSCREEN

48410-28K00

$76.10

2

.COVER, WINDSCREEN

48412-28K00

$33.88

3

PAD (8X20X2)

73415-70A00

$1.50

4

CAP, WINDSCREEN SCREW

48414-31J00

$3.27

5

SCREW (6X20)

09139-06211

$3.15

6

CUSHION (9X18X9.5)

09320-09016

$1.97

7

WASHER

08322-0110B

$2.37

8

COWLING, BODY

94411-28K00

$166.47

9

PANEL, METER

94630-28K00

$37.82

10

PAD (8X20X2)

73415-70A00

$1.50

11

CUSHION (8X26X7)

09320-08028

$2.80

12

SCREW (6X20)

09139-06126

$3.65

13

NUT (M5)

09148-05038

$1.97

14

NUT

09148-06020

$4.01

15

CUSHION (9X18X9.5)

09320-09016

$1.97

16

CLIP (5.9X20.5,BLACK)

09409-06314-5PK

$2.80

17

SCREW

03541-0512A

$1.37

18

CUSHION,SPEEDOMETER This part replaces 34189-08J00.

34189-08J01

$3.38

19

BRACE, COWLING

94510-28K00

$179.80

20

CUSHION (8X26X7)

09320-08028

$2.80

21

BOLT (8X20)

01550-0820A

$2.25

22-1

COWLING,BODY LOWER (GRAY) | FOR YU1

94402-28K00-QEB

$101.45

22-2

COWLING, BODY LOWER (BLUE) | FOR YWW

94402-28K00-YKY

$101.45

22-3

COWLING,BODY LOWER (BLACK) | FOR YYG

94402-28K00-YVB

$101.45

23

PAD (8X20X2)

73415-70A00

$1.50

24

NUT (M5)

09148-05052

$3.04
