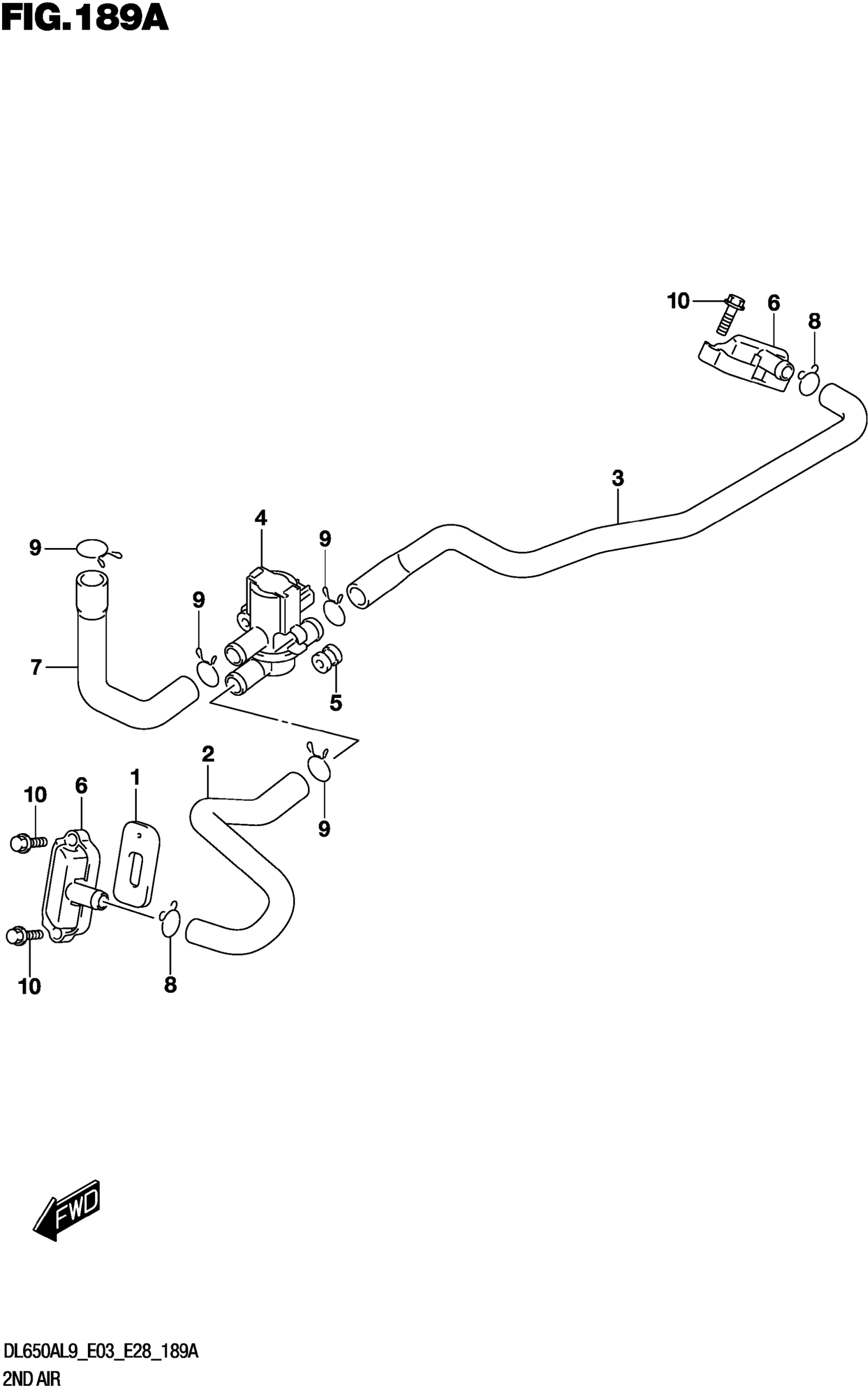

Suzuki DL650AL9 (2019) 2ND AIR Diagram

#

Description

Price

1

VALVE ASSY,OIL REED

13150-28H10

$41.60

2

HOSE,2ND AIR VALVE FR

18461-11J00

Unavailable

3

HOSE,2ND AIR VALVE RR

18471-11J00

Unavailable

4

VALVE ASSY,AIR CUT

18510-29G80

Unavailable

5

GROMMET,AIR CUT VALVE

18511-29G00

Unavailable

6

COVER,2ND AIR REED VALVE

18531-06G10

Unavailable

7

HOSE,2ND AIR CLNR

18711-11J00

Unavailable

8

CLIP (ID:15.5)

09401-15101

$2.26

9

CLIP

09401-17201

$3.15

10

BOLT

01547-0620A

$2.03
