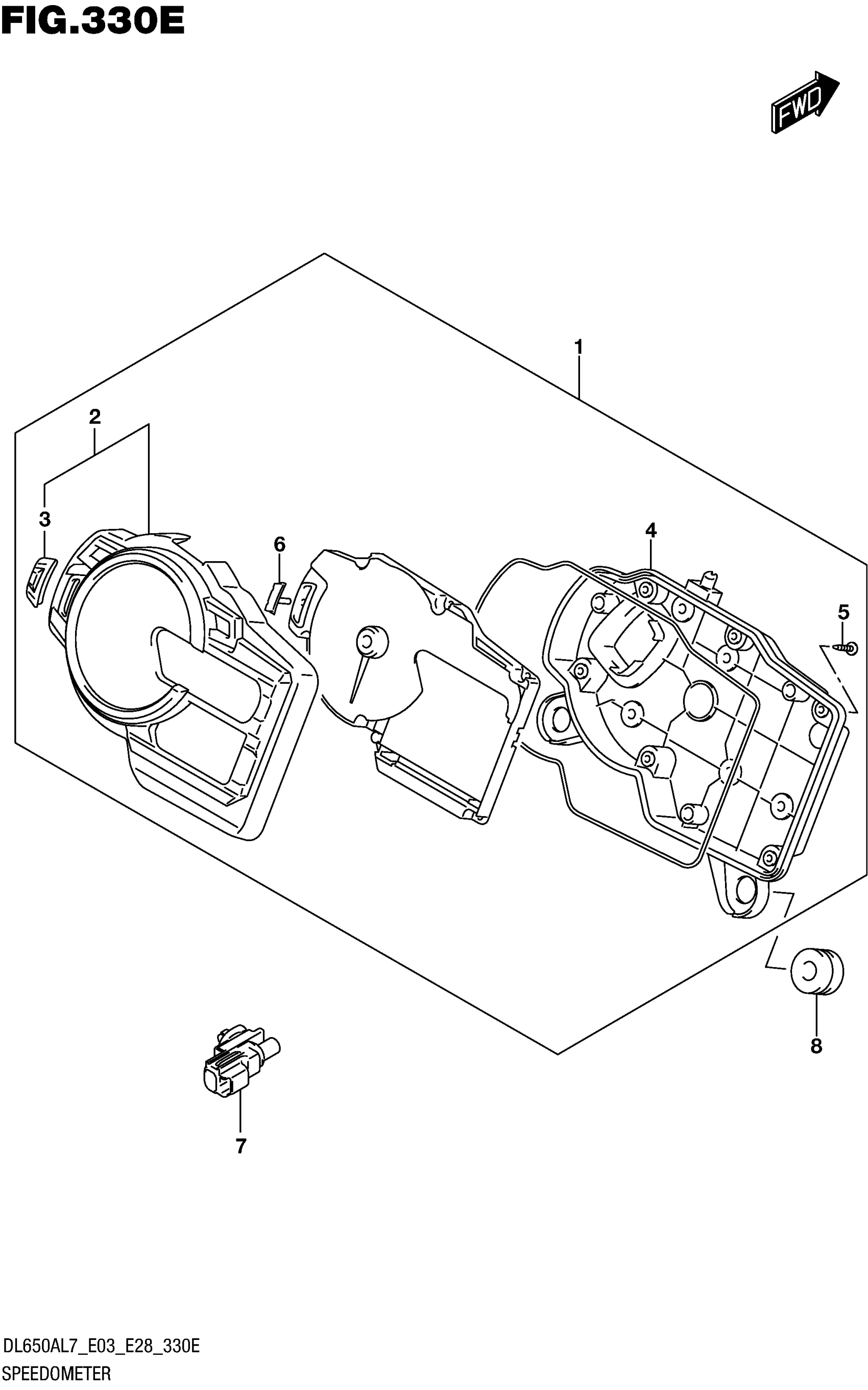

Suzuki DL650AL7 (2017) SPEEDOMETER (DL650XAL7 E28) Diagram

#

Description

Price

1

SPEEDOMETER ASSY

34100-28K00

$654.92

2

.CASE, UPPER

34150-28K00

$174.53

3

..RUBBER, SWITCH

34126-31J00

$32.03

4

.CASE, LOWER

34152-28K00

$65.57

5

.SCREW (3X12)

34183-29F00

$3.84

6

.KNOB

34124-31J00

Unavailable

7

SENSOR, AMBIENT AIR TEMP

95643-58J00

$50.50

8

CUSHION,SPEEDOMETER This part replaces 34189-08J00.

34189-08J01

$3.59
