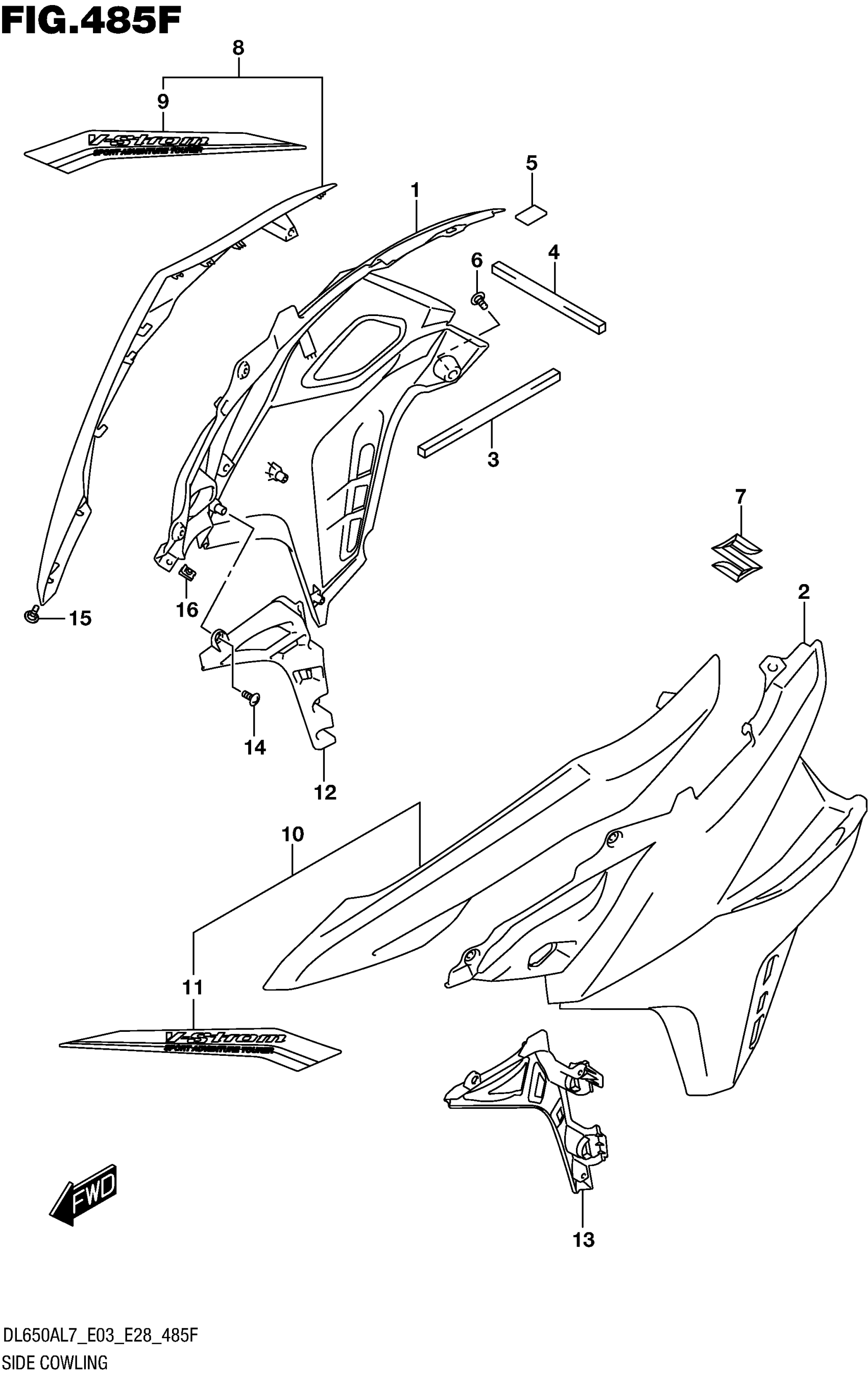

Suzuki DL650AL7 (2017) SIDE COWLING (DL650AL7 E33) (FOR YVB,YWW) Diagram

Description

Price

COVER, SIDE COWL RH

94413-28K00

$106.28

COVER, SIDE COWL LH

94414-28K00

$111.40

CUSHION (5X120X6)

44176-31J00

$2.75

CUSHION

44178-31J00

$2.87

CUSHION, SIDE COVER UPPER | CUT AS REQUIRED

44612-13600

$4.65

SCREW, COVER SIDE

47913-31J00

$2.42

EMBLEM, S

68111-47HA0

$40.44

8-1

COVER, SIDE COWL RH (SILVER) | FOR YWW

94420-28K10-YMD

$128.58

8-2

COVER, SIDE COWL RH (SILVER) | FOR YVB

94420-28K10-5KX

Unavailable

9-1

.TAPE, COVER SIDE RH | FOR YWW

68275-28K10-BHF

Unavailable

9-2

.TAPE, COVER SIDE RH | FOR YVB

68275-28K10-BHG

Unavailable

10-1

COVER, SIDE COWL LH (SILVER) | FOR YWW

94430-28K10-YMD

$131.02

10-2

COVER, SIDE COWL LH (SILVER) | FOR YVB

94430-28K10-5KX

Unavailable

11-1

.TAPE, COVER SIDE LH | FOR YWW

68285-28K10-BHF

$30.62

11-2

.TAPE, COVER SIDE LH | FOR YVB

68285-28K10-BHG

Unavailable

COVER, SIDE COWL INNER RH

94461-28K00

$14.45

COVER, SIDE COWL INNER LH

94462-28K00

$14.18

SCREW

03541-0512A

$1.49

SCREW (5X13)

09139-05091

$2.03

NUT

09148-05052

$3.37
