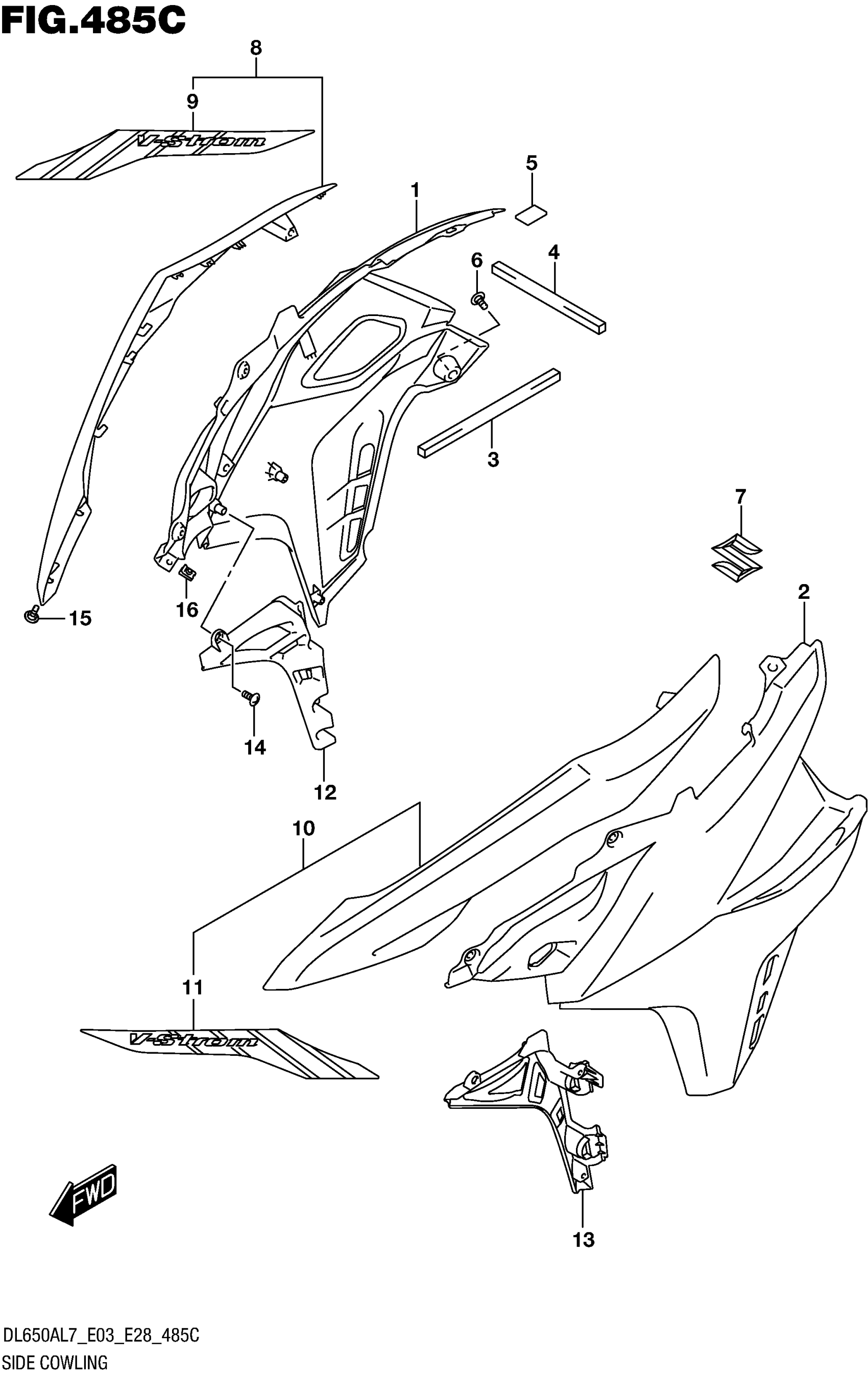

Suzuki DL650AL7 (2017) SIDE COWLING (DL650AL7 E28) (FOR YU1) Diagram

Description

Price

COVER, SIDE COWL RH

94413-28K00

$100.05

COVER, SIDE COWL LH

94414-28K00

$104.88

CUSHION (5X120X6)

44176-31J00

$3.10

CUSHION

44178-31J00

$3.25

CUSHION, SIDE COVER UPPER | CUT AS REQUIRED

44612-13600

$5.27

SCREW, COVER SIDE

47913-31J00

$2.26

EMBLEM, S

68111-47HA0

$37.02

COVER, SIDE COWL RH (SILVER)

94420-28K00-YMD

$143.10

.TAPE, COVER SIDE RH

68275-28K00-BHD

Unavailable

COVER, SIDE COWL LH (SILVER)

94430-28K00-YMD

$147.17

.TAPE, COVER SIDE LH

68285-28K00-BHD

$35.85

COVER, SIDE COWL INNER RH

94461-28K00

$16.30

COVER, SIDE COWL INNER LH

94462-28K00

$16.00

SCREW

03541-0512A

$1.37

SCREW (5X13)

09139-05091

$2.01

NUT

09148-05052

$3.04
