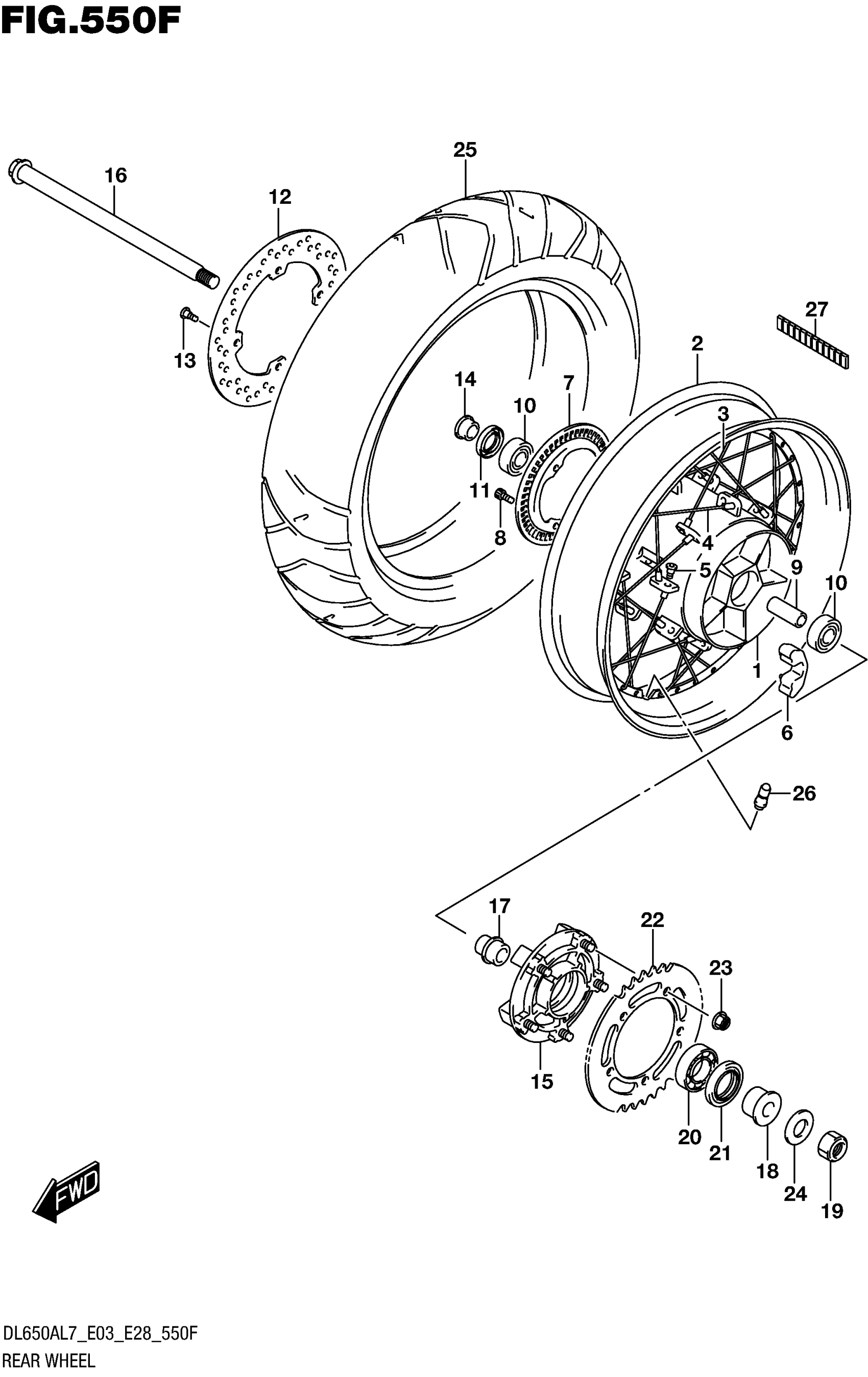

Suzuki DL650AL7 (2017) REAR WHEEL (DL650XAL7 E33) Diagram

#

Description
Price

1

HUB, RR

64111-11J00

$566.77

2-1

RIM, REAR WHEEL (BLACK)

65311-11J00

Unavailable

2-1

(17M/CXMT4.00)

65311-11J00

Unavailable

2-2

RIM, REAR WHEEL (GOLD)

65311-11J10

$656.43

2-2

(17M/CXMT4.00)

65311-11J10

$656.43

3

SPOKE, REAR WHEEL INNER This part replaces 65321-11J00.

65321-11J01

$7.73

4

SPOKE, REAR WHEEL OUTER This part replaces 65322-11J00.

65322-11J01

$7.73

5

NIPPLE, WHEEL

55326-11J00

$4.85

6

ABSORBER, RR HUB SHOCK

64651-35F10

$10.82

7

RING, SPEED SENSOR (50T)

54162-28K00

$64.93

8

BOLT

07130-0512A

$2.19

9

SPACER (20.8X27.2X124)

09180-20112

$40.70

10

BEARING This part replaces 08123-62047.

08123-6204B

$15.93

11

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$11.27

12

DISC, RR BRAKE

69211-06G10

$361.08

13

BOLT (8X21)

09106-08160

$3.22

14

SPACER, RR AXLE RH

64741-10F00

$19.54

15

DRUM, RR SPROCKET

64610-35F40

$346.25

16

AXLE, RR

64711-03F00

$152.17

17

RETAINER, RR SPROCKET DRUM

64733-06G00

$36.60

18

SPACER, RR AXLE LH

64751-27G00

$34.65

19

NUT

09159-18007

$21.28

20

BEARING (32X65X17) This part replaces 09262-32022.

09262-32024

$35.55

21

OIL SEAL (39X65X7)

09285-39001

$9.58

22

SPROCKET, RR (47T-525)

64511-27G00

$91.48

23

NUT

08319-3110A

$2.73

24

WASHER (19X32X3.2)

09160-19025

$5.20

25

TIRE, REAR (BATTLAX ADVENTURE | BATTLAX ADVENTURE A4

65110-28K00

$453.95

25

TIRE, REAR (BATTLAX ADVENTURE | BRIDGESTONE

65110-28K00

$453.95

26

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10

27

WEIGHT,WHEEL BALANCE (5GRAM)

55411-11J00

$6.08
