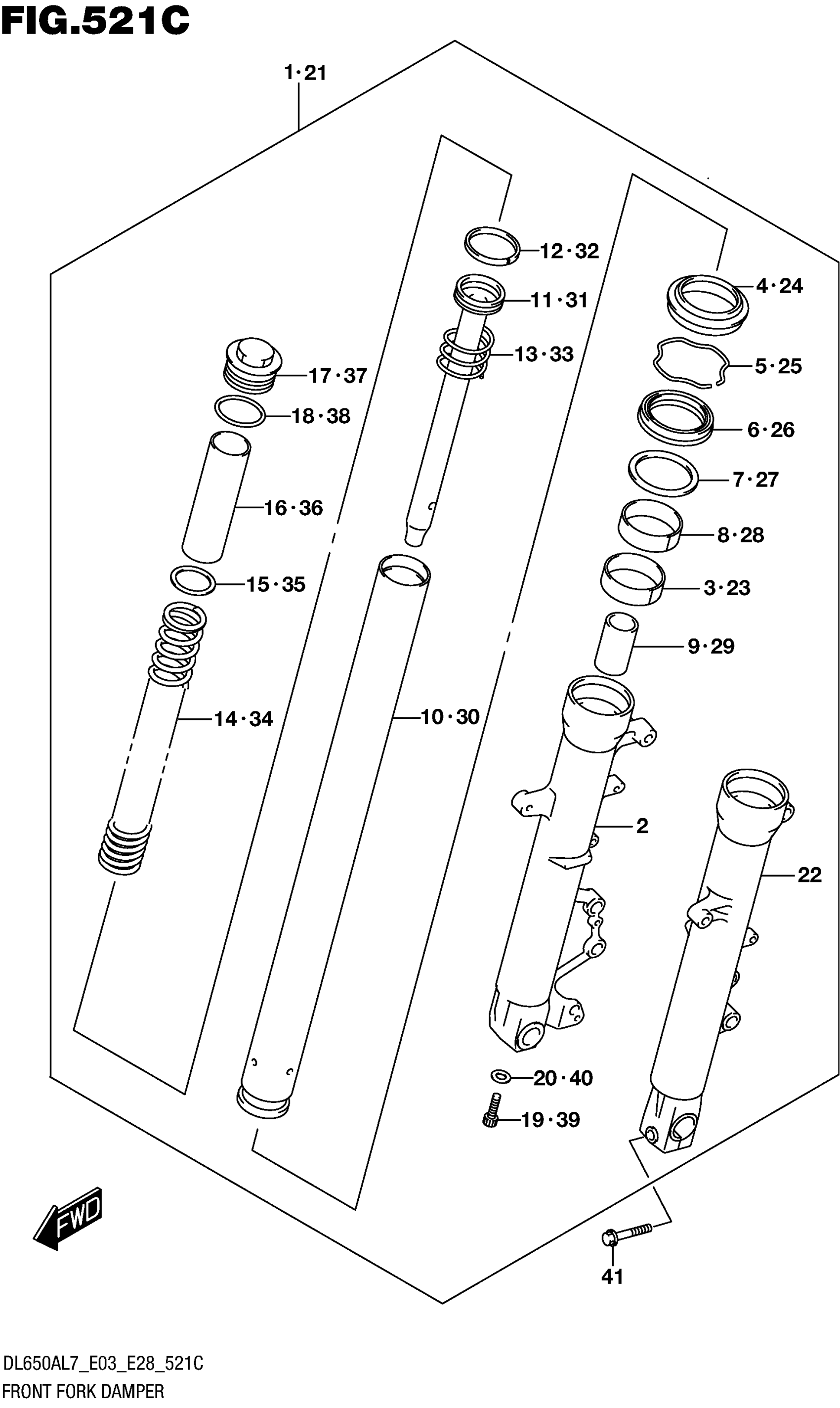

Find the part on the Front Fork Damper diagram for your 2017 Suzuki DL650AL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki DL650AL7 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

.TUBE, OUTER RH

51131-28K00-291

1

$577.90

In stock

3

1

$21.03

In stock

4

.SEAL, DUST

51173-27G00

1
Out of stock

5

.RING, STOPPER

51556-38B00

1
Out of stock

6

SEAL, OIL This part replaces 51553-47H00.

51153-47H00

1
Out of stock

7

.SPACER, SEAL

51168-17C00

1

$6.44

In stock

8

.BUSH, GUIDE

51152-47H00

1
Out of stock

9

.PIECE, OIL LOCK

51195-27G00

1

$34.12

In stock

10

.PIPE, FORK

51110-11J00

1

$545.97

In stock

11

.PIPE SEAT

51146-11J00

1

$66.15

In stock

12

.RING, PISTON

51196-27G00

1

$7.92

In stock

13

.SPRING, REBOUND

51177-14D00

1

$14.75

In stock

14

.SPRING, FRONT

51171-28K00

1

$84.87

In stock

15

.SEAT, SPRING, LOWER

51186-17C00

1

$8.52

In stock

16

.COLLAR, SPRING

51176-19C00

1

$15.47

In stock

17

.BOLT, FORK

51189-28K00

1

$69.70

In stock

18

.O RING

51117-17C00

1

$6.10

In stock

19

.BOLT, CTR (8X18)

51147-06F10

1
Out of stock

20

1

$3.55

In stock

21

1

$1,050.32

In stock

21

1

$1,050.32

In stock

22

.TUBE, OUTER LH

51141-28K00-291

1

$577.90

In stock

23

1

$21.03

In stock

24

.SEAL, DUST

51173-27G00

1
Out of stock

25

.RING, STOPPER

51556-38B00

1
Out of stock

26

SEAL, OIL This part replaces 51553-47H00.

51153-47H00

1
Out of stock

27

.SPACER, SEAL

51168-17C00

1

$6.44

In stock

28

.BUSH, GUIDE

51152-47H00

1
Out of stock

29

.PIECE, OIL LOCK

51195-27G00

1

$34.12

In stock

30

.PIPE, FORK

51110-11J00

1

$545.97

In stock

31

.PIPE SEAT

51146-11J00

1

$66.15

In stock

32

.RING, PISTON

51196-27G00

1

$7.92

In stock

33

.SPRING, REBOUND

51177-14D00

1

$14.75

In stock

34

.SPRING, FRONT

51171-28K00

1

$84.87

In stock

35

.SEAT, SPRING, LOWER

51186-17C00

1

$8.52

In stock

36

.COLLAR, SPRING

51176-19C00

1

$15.47

In stock

37

.BOLT, FORK

51189-28K00

1

$69.70

In stock

38

.O RING

51117-17C00

1

$6.10

In stock

39

.BOLT

51147-06F10

1
Out of stock

40

1

$3.55

In stock

41

BOLT,HOLDER AXLE (8X40) | LH

51328-27E30

1
Out of stock
