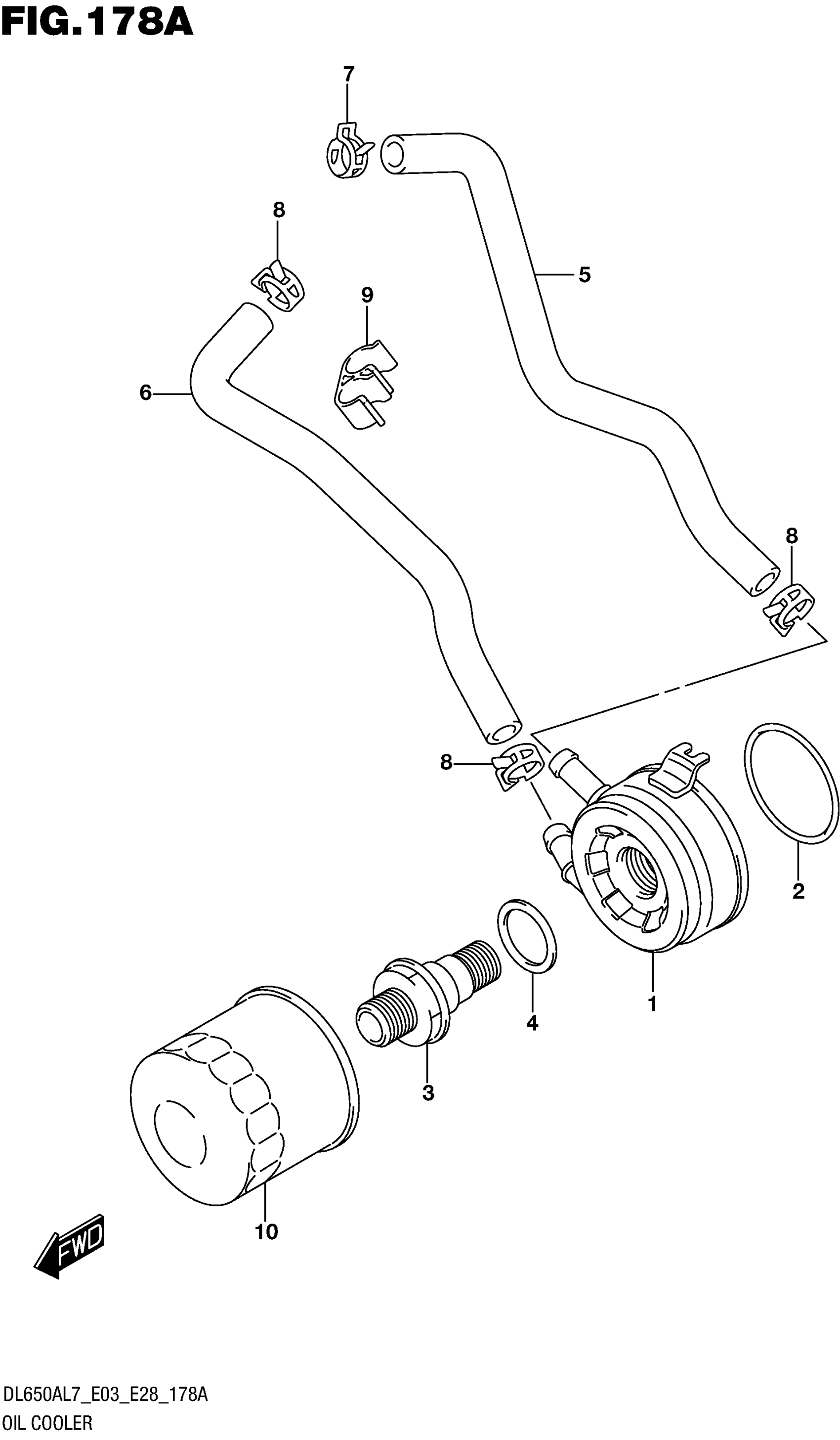

Suzuki DL650AL7 (2017) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY,OIL

16600-44H00

Unavailable

2

O-RING (D:3.1,ID:54.5)

09280-55002

$2.82

3

BOLT,OIL COOLER UNION

16591-02F00

$50.10

4

SHIM (25X34X0.7)

09181-25160

$2.93

5

HOSE, OIL COOLER INLET

16461-44H00

$29.57

6

HOSE,OIL COOLER OUT

16471-44H00

$28.47

7

CLIP

09401-16407

$2.44

8

CLIP

09401-16409

$2.62

9

CLAMP

09408-00267

$2.72

10

FILTER ASSY, ENGINE OIL

16510-07J00

$13.10
