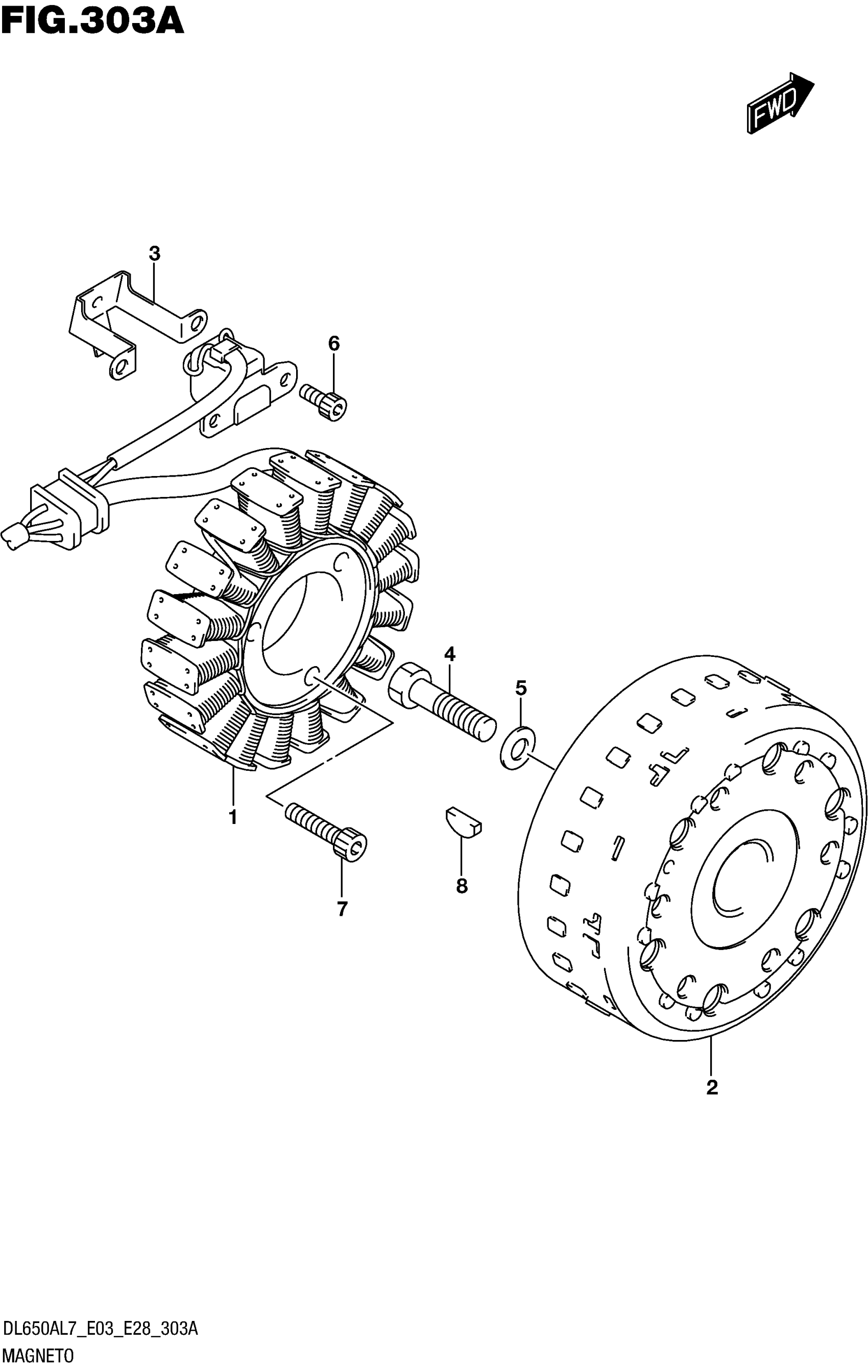

Suzuki DL650AL7 (2017) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY

32101-28K00

$394.48

2

ROTOR ASSY

32102-28K00

Unavailable

3

CLAMP,MAGNETO LEAD

32371-19F10

Unavailable

4

BOLT (12X40)

09103-12004

$4.00

5

WASHER (12X30X3.0)

09160-12036

$3.93

6

BOLT

07130-0512A

$2.19

7

BOLT

07130-0635A

$3.16

8

KEY

09420-04008

$3.42
