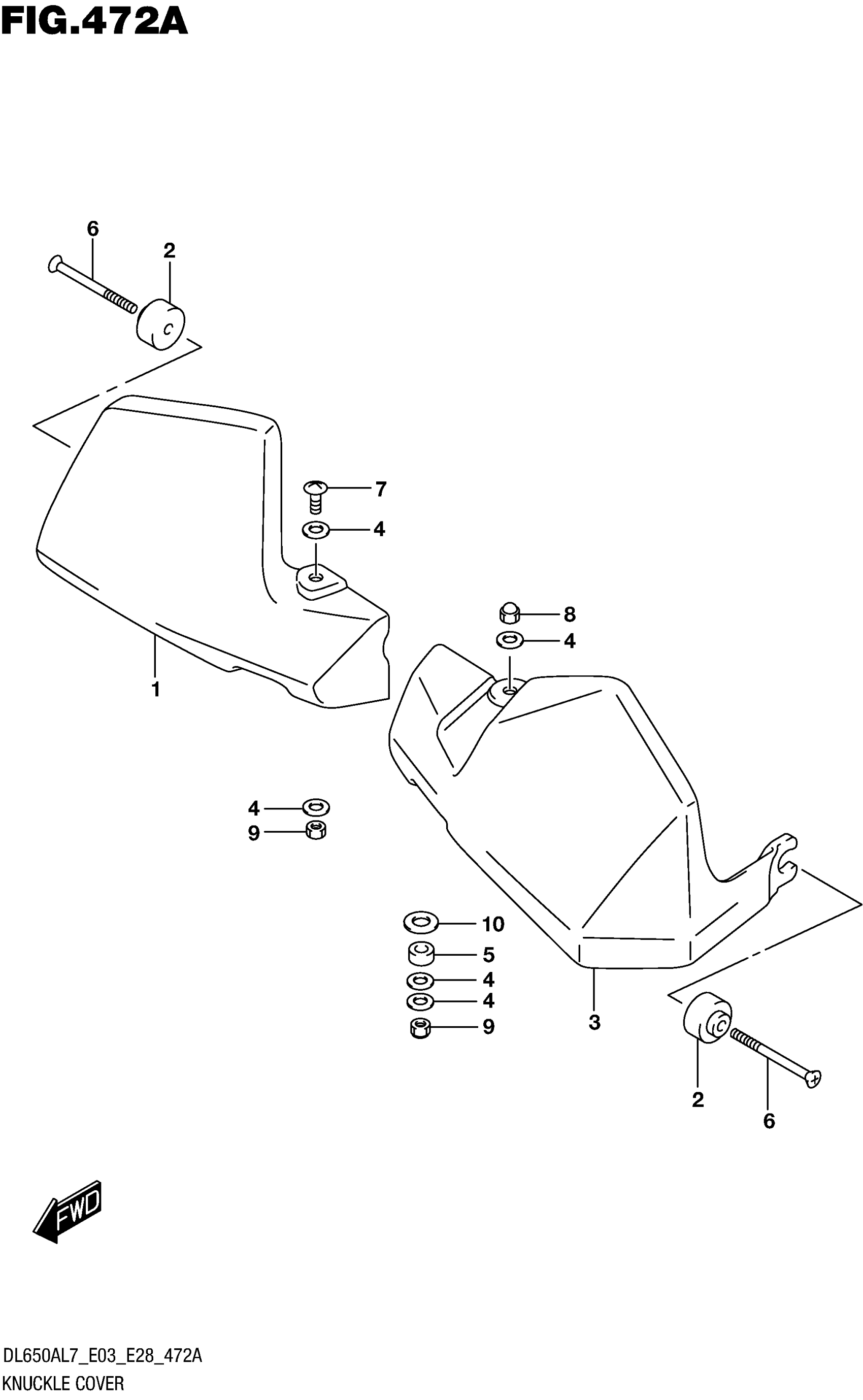

Suzuki DL650AL7 (2017) KNUCKLE COVER (DL650XAL7 E03) Diagram

#

Description
Price

1

COVER, KNUCKLE RH

57341-27G02-291

$29.56

2

.SPACER, KNUCKLE COVER

57346-14G00

$19.62

3

COVER, KNUCKLE LH

57541-27G01-291

$31.10

4

.WASHER (6.5X16X1.6)

09160-06130

$1.97

5

.SPACER

09180-06346

$2.72

6

SCREW

02122-0680B

$4.03

7

SCREW

02142-0612B

$1.89

8

NUT

08313-1006B

$2.37

9

NUT

08319-2106B

$2.38

10

WASHER

08322-0106B

$2.31
